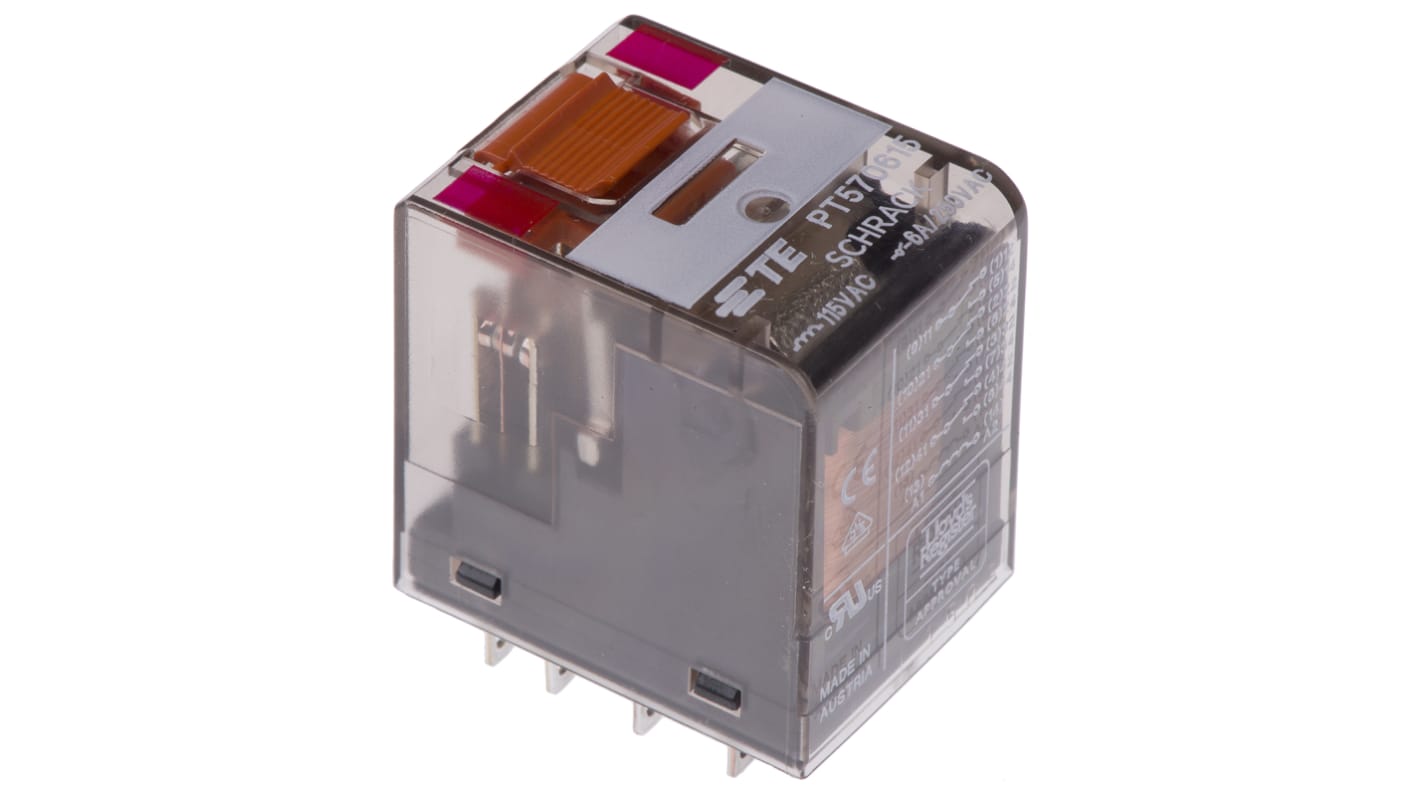

TE Connectivity PCB Mount Power Relay, 115V ac Coil, 6A Switching Current, 4PDT
- RS Stock No.:
- 334-0070
- Distrelec Article No.:
- 137-21-370
- Mfr. Part No.:
- PT570615 9-1419111-0
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£9.59
(exc. VAT)
£11.51
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 150 unit(s) ready to ship
- Plus 55 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £9.59 |
5 - 9 | £9.27 |
10 + | £8.90 |
*price indicative
- RS Stock No.:
- 334-0070
- Distrelec Article No.:
- 137-21-370
- Mfr. Part No.:
- PT570615 9-1419111-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coil Voltage | 115V ac | |
Contact Configuration | 4PDT | |
Mounting Type | PCB Mount | |
Switching Current | 6A | |
Number of Poles | 4 | |
Latching | No | |
Series | PT | |
Terminal Type | Quick Connect | |
Length | 28mm | |
Coil Resistance | 4845Ω | |
Depth | 22.5mm | |
Contact Material | Silver Nickel Alloy | |
Height | 35mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +70°C | |
Maximum Switching Power AC | 1.5 kVA | |
Application | Compact | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coil Voltage 115V ac | ||
Contact Configuration 4PDT | ||
Mounting Type PCB Mount | ||
Switching Current 6A | ||
Number of Poles 4 | ||
Latching No | ||
Series PT | ||
Terminal Type Quick Connect | ||
Length 28mm | ||
Coil Resistance 4845Ω | ||
Depth 22.5mm | ||
Contact Material Silver Nickel Alloy | ||
Height 35mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Power AC 1.5 kVA | ||
Application Compact | ||
- COO (Country of Origin):
- AT



TE Connectivity Non-latching Relay
The TE Connectivity PT series PCB mount non-latching relay has contact configuration of 4PDT. It is actuated with 115VAC coil voltage and 6A switching current. This relay has an LED and mechanical indicator manual/lockable test facility. It has universal use in control and automation.
Features and Benefits
Coil resistance is 4.845Kohm
Coil to contact isolation voltage is 2.5kVAC
Quick connect terminal type
Cadmium-free contacts
White marking tabs
Coil to contact isolation voltage is 2.5kVAC
Quick connect terminal type
Cadmium-free contacts
White marking tabs
Certifications
UL approved
CSA certified
VDE approved
CSA certified
VDE approved
Approvals
VDE; UL; CSA
