Finder PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 253-3423
- Distrelec Article No.:
- 137-44-399
- Mfr. Part No.:
- 55.12.9.024.0000
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£11.98
(exc. VAT)
£14.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £11.98 |
5 - 9 | £11.62 |
10 + | £11.12 |
*price indicative
- RS Stock No.:
- 253-3423
- Distrelec Article No.:
- 137-44-399
- Mfr. Part No.:
- 55.12.9.024.0000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | DPDT | |
Mounting Type | PCB Mount | |
Switching Current | 10A | |
Number of Poles | 2 | |
Series | 55 Series | |
Latching | No | |
Terminal Type | Through Hole | |
Maximum Switching Voltage AC | 400V ac | |
Length | 27.7mm | |
Coil Resistance | 600Ω | |
Coil Power | 1W | |
Minimum Operating Temperature | -40°C | |
Isolation Coil To Contact | 4kV | |
Height | 35.8mm | |
Depth | 20.7mm | |
Maximum Operating Temperature | +85°C | |
Contact Material | Silver Alloy | |
Life | 10000000 (AC Mechanical) cycles, 200000 (Electrical) cycles, 20000000 (DC Mechanical) cycles | |
Maximum Switching Power AC | 2.5 kVA | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Series 55 Series | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 400V ac | ||
Length 27.7mm | ||
Coil Resistance 600Ω | ||
Coil Power 1W | ||
Minimum Operating Temperature -40°C | ||
Isolation Coil To Contact 4kV | ||
Height 35.8mm | ||
Depth 20.7mm | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver Alloy | ||
Life 10000000 (AC Mechanical) cycles, 200000 (Electrical) cycles, 20000000 (DC Mechanical) cycles | ||
Maximum Switching Power AC 2.5 kVA | ||
- COO (Country of Origin):
- IT

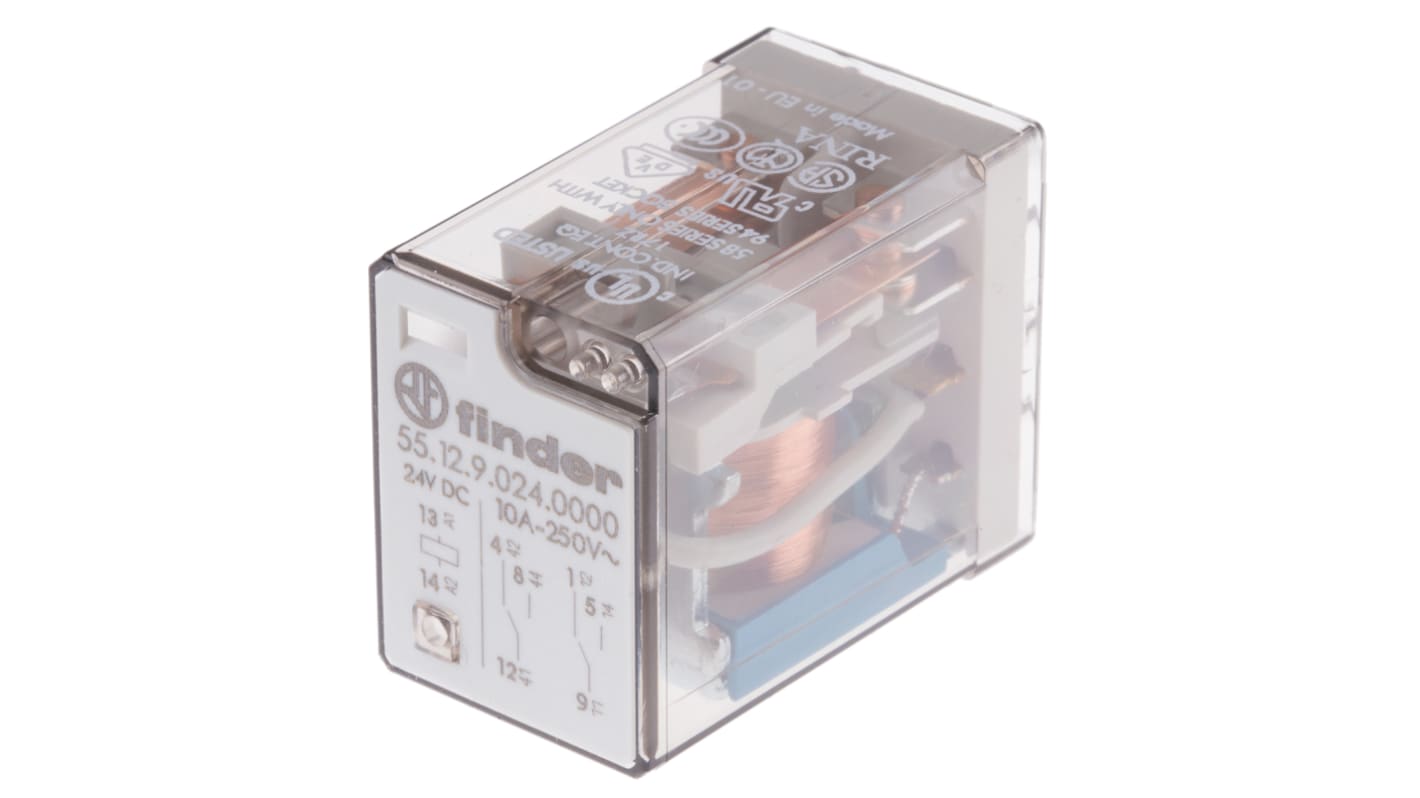

Finder 55 series Power Relay, 24V DC Coil Voltage, 10A Switching Current - 55.12.9.024.0000
This power relay is designed for efficient operation in automation and electrical systems. Encased in a sturdy construction, it features a single coil voltage of 24V DC and a dual-pole double-throw (DPDT) connection type. Measuring 27.7mm in length, 20.7mm in depth, and 35.8mm in height, it is ideal for PCB mounting applications.
Features & Benefits
• Offers a switching current of 10A for reliable performance
• Supports maximum switching voltage up to 400V AC
• Constructed with silver alloy relay contacts for optimal conductivity
• Provides isolation of 4kV between coil and contacts for safety
• Supports maximum switching voltage up to 400V AC
• Constructed with silver alloy relay contacts for optimal conductivity
• Provides isolation of 4kV between coil and contacts for safety
Applications
• Used for controlling motors and actuators in automation projects
• Perfect for relay logic systems in electrical installations
• Suitable for various PCB in modern electronics
• Effective in safety and alarm systems requiring switching capabilities
• Perfect for relay logic systems in electrical installations
• Suitable for various PCB in modern electronics
• Effective in safety and alarm systems requiring switching capabilities
How does this relay perform in extreme temperatures?
With an operational range of -40°C to +85°C, it suits environments with extreme temperature fluctuations, ensuring reliability.
What is the expected lifespan when used in repetitive switching operations?
It has a mechanical life of approximately 10 million cycles under AC conditions and 20 million cycles under DC applications, ensuring durability for prolonged use.
Can I use this relay for inductive loads?
Yes, the relay is suitable for inductive loads
however, it is advisable to consider its rated breaking capacity to ensure safe operation.
