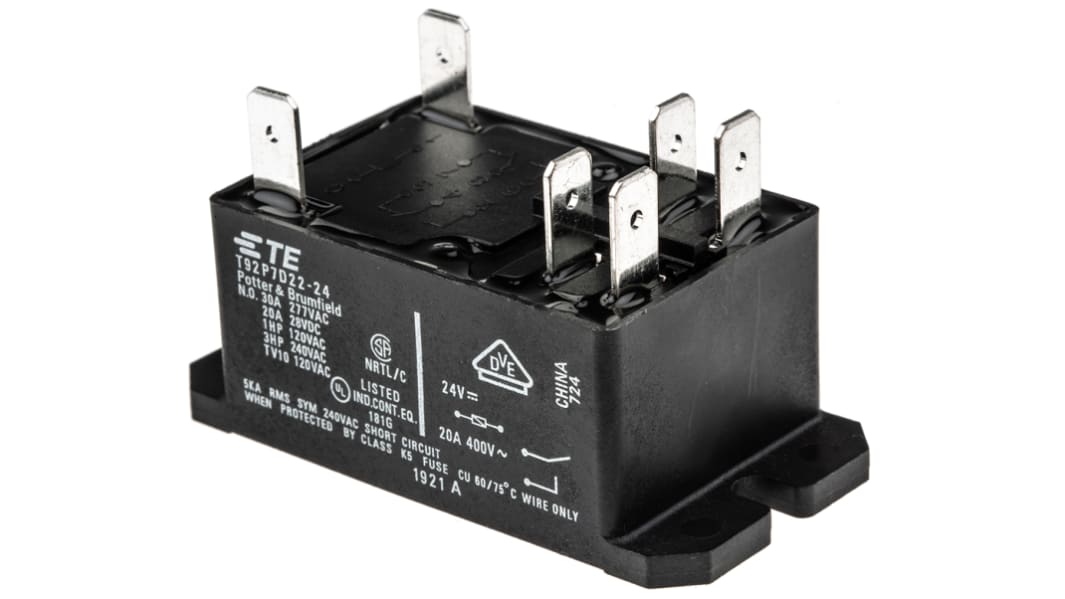

TE Connectivity Flange Power Relay, 24V dc Coil, 30A Switching Current, DPST
- RS Stock No.:
- 235-5475
- Distrelec Article No.:
- 137-21-492
- Mfr. Part No.:
- T92P7D22-24 7-1393211-1
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£24.45
(exc. VAT)
£29.34
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 313 unit(s) shipping from 12 June 2026
- Plus 212 unit(s) shipping from 12 June 2026
- Plus 1,080 unit(s) shipping from 19 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £24.45 |
| 5 - 9 | £23.71 |
| 10 + | £22.66 |
*price indicative
- RS Stock No.:
- 235-5475
- Distrelec Article No.:
- 137-21-492
- Mfr. Part No.:
- T92P7D22-24 7-1393211-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPST | |
| Mount Type | Flange | |
| Series | T92 | |
| Terminal Type | Quick Connect | |
| Switching Current | 30A | |
| Minimum Operating Temperature | -55°C | |
| Switching AC Voltage | 600V ac | |
| Coil Resistance | 350Ω | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Coil Power | 1.7W | |
| Length | 68.6mm | |
| Width | 34.5mm | |
| Height | 38mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration DPST | ||
Mount Type Flange | ||
Series T92 | ||
Terminal Type Quick Connect | ||
Switching Current 30A | ||
Minimum Operating Temperature -55°C | ||
Switching AC Voltage 600V ac | ||
Coil Resistance 350Ω | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Coil Power 1.7W | ||
Length 68.6mm | ||
Width 34.5mm | ||
Height 38mm | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- CN
TE Connectivity Non-latching Relay
The TE Connectivity T92 series panel mount general-purpose high power relay has a contact configuration of DPNO. This quick-connect relay is actuated with 24VDC coil voltage and 30A switching current. This series relay is designed to control compressor loads to 3.5 tons, 25.3FLA and 110LRA.
Features and Benefits
Coil resistance is 350ohm
Contact material is silver cadmium oxide (AgCdO)
Meets VDE 8mm spacing, 4kV dielectric coil to contacts
Operating temperature ranges between -40°C and 65°C
Certifications
CSA certified
UL listed
VDE approved
Approvals
UL; CSA; VDE
