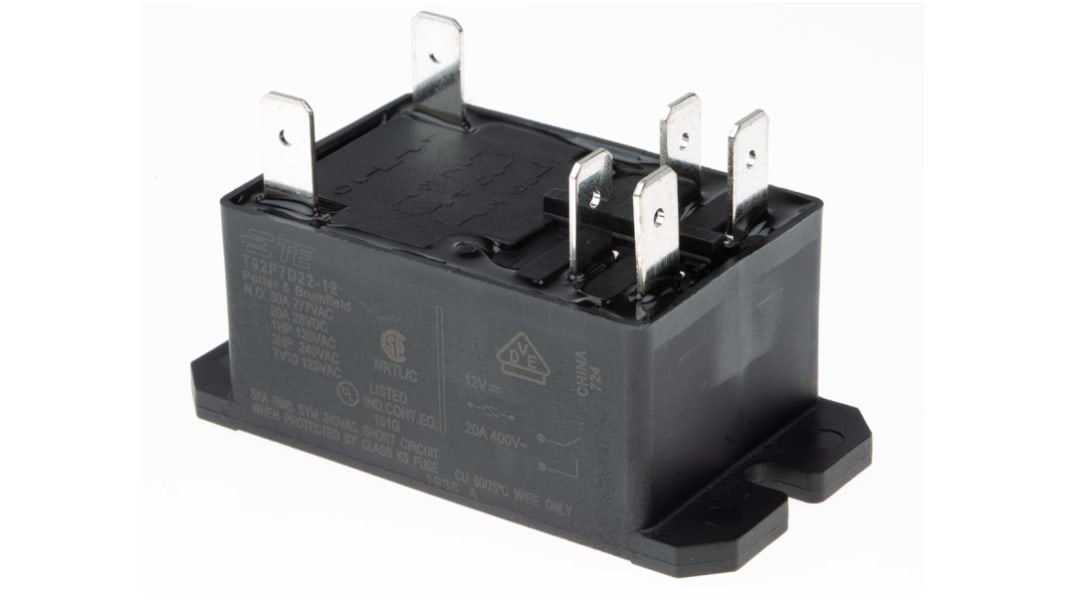

TE Connectivity Flange Mount Power Relay, 12V dc Coil, 30A Switching Current, DPST
- RS Stock No.:
- 235-5469
- Distrelec Article No.:
- 137-21-491
- Mfr. Part No.:
- T92P7D22-12 6-1393211-9
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£16.01
(exc. VAT)
£19.21
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 75 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
- Plus 1,000 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £16.01 |
5 - 9 | £15.55 |
10 + | £14.87 |
*price indicative
- RS Stock No.:
- 235-5469
- Distrelec Article No.:
- 137-21-491
- Mfr. Part No.:
- T92P7D22-12 6-1393211-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coil Voltage | 12V dc | |
Contact Configuration | DPST | |
Mounting Type | Flange Mount | |
Switching Current | 30A | |
Number of Poles | 2 | |
Latching | No | |
Series | T92 | |
Terminal Type | Quick Connect | |
Length | 68.58mm | |
Coil Resistance | 86Ω | |
Maximum Operating Temperature | +85°C | |
Depth | 34.5mm | |
Height | 38mm | |
Contact Material | Silver Alloy | |
Minimum Operating Temperature | -55°C | |
Application | Power | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Contact Configuration DPST | ||
Mounting Type Flange Mount | ||
Switching Current 30A | ||
Number of Poles 2 | ||
Latching No | ||
Series T92 | ||
Terminal Type Quick Connect | ||
Length 68.58mm | ||
Coil Resistance 86Ω | ||
Maximum Operating Temperature +85°C | ||
Depth 34.5mm | ||
Height 38mm | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -55°C | ||
Application Power | ||
- COO (Country of Origin):
- CN




TE Connectivity Non-latching Relay
The TE Connectivity T92 series panel mount general-purpose high power relay has a contact configuration of DPNO. This quick-connect relay is actuated with 12VDC coil voltage and 30A switching current. This series relay is designed to control compressor loads to 3.5 tons, 25.3FLA and 110LRA.
Features and Benefits
Coil resistance is 86ohm
Contact material is silver cadmium oxide (AgCdO)
Meets VDE 8mm spacing, 4kV dielectric coil to contacts
Operating temperature ranges between -40°C and 65°C
Terminal type is quick connect
UL Class F construction system standard
Contact material is silver cadmium oxide (AgCdO)
Meets VDE 8mm spacing, 4kV dielectric coil to contacts
Operating temperature ranges between -40°C and 65°C
Terminal type is quick connect
UL Class F construction system standard
Certifications
CSA certified
UL listed
VDE approved
UL listed
VDE approved
Approvals
UL; CSA; VDE
