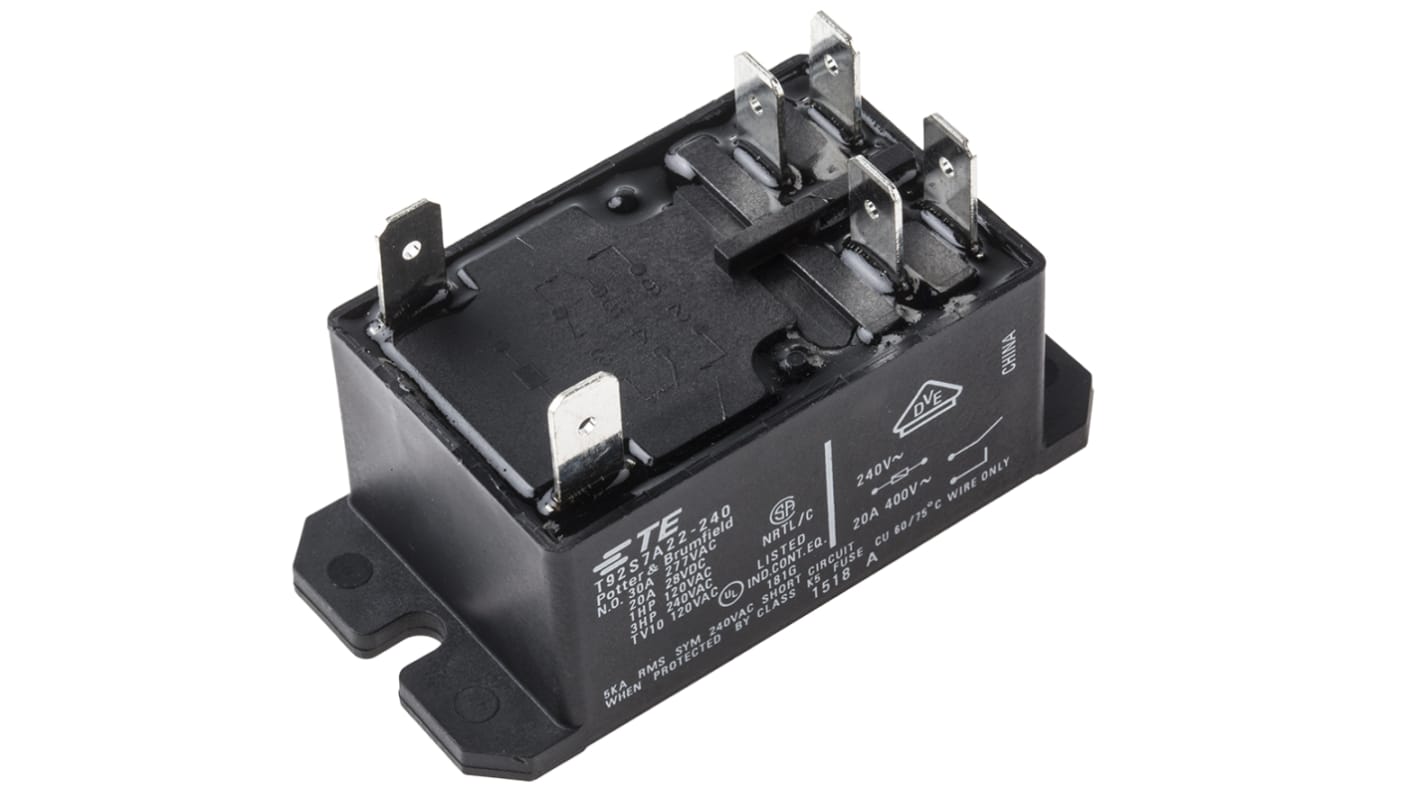

TE Connectivity Flange Power Relay, 240V ac Coil, 30A Switching Current, DPST

View all Power Relays
Bulk discount available

Subtotal (1 bag of 30 units)*

£738.93

(exc. VAT)

£886.71

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 60 unit(s) shipping from 17 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Bag*
30 - 30£24.631£738.93
60 - 90£24.384£731.52
120 - 270£23.621£708.63
300 +£22.857£685.71

*price indicative

RS Stock No.:
164-0204
Mfr. Part No.:
T92S7A22-240=T92
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

Power Relay

Coil Voltage

240V ac

Contact Configuration

DPST

Mount Type

Flange

Series

T92

Terminal Type

Quick Connect

Switching Current

30A

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

65°C

Coil Resistance

3.8kΩ

Length

68.6mm

Height

38mm

Coil Power

1.7W

Standards/Approvals

RoHS, IEC 61810

Width

34.5mm

Contact Material

Silver Alloy

TE Connectivity T92 Series PCB and Panel Mount Relays


T92 Series PCB and panel mount relays have with a 30A switching current and a choice of DPST or DPDT contact configurations. These PCB and panel mount relays are available with dust protected plastic cases (part numbers starting T92P) or with wash tight, tape sealed plastic cases (part numbers starting T92S).

T92 series relays with part numbers T92XXX1X-XX are PCB mount

T92 series relays with part numbers T92XXX2X-XX are panel mount via a flanged cover with 6.35 x 0.81mm QC terminals

T92 series relays with part numbers T92XXX3X-XX are panel mount via a flanged cover with 4.75 x 0.81mm QC terminals for Coil and 6.35mm for contacts.

30A DPST- NO & DPDT Switching capabilities

New screw Terminal version

Operating Temperature Range: -40 → +65°C

Contact Material AgCdO
