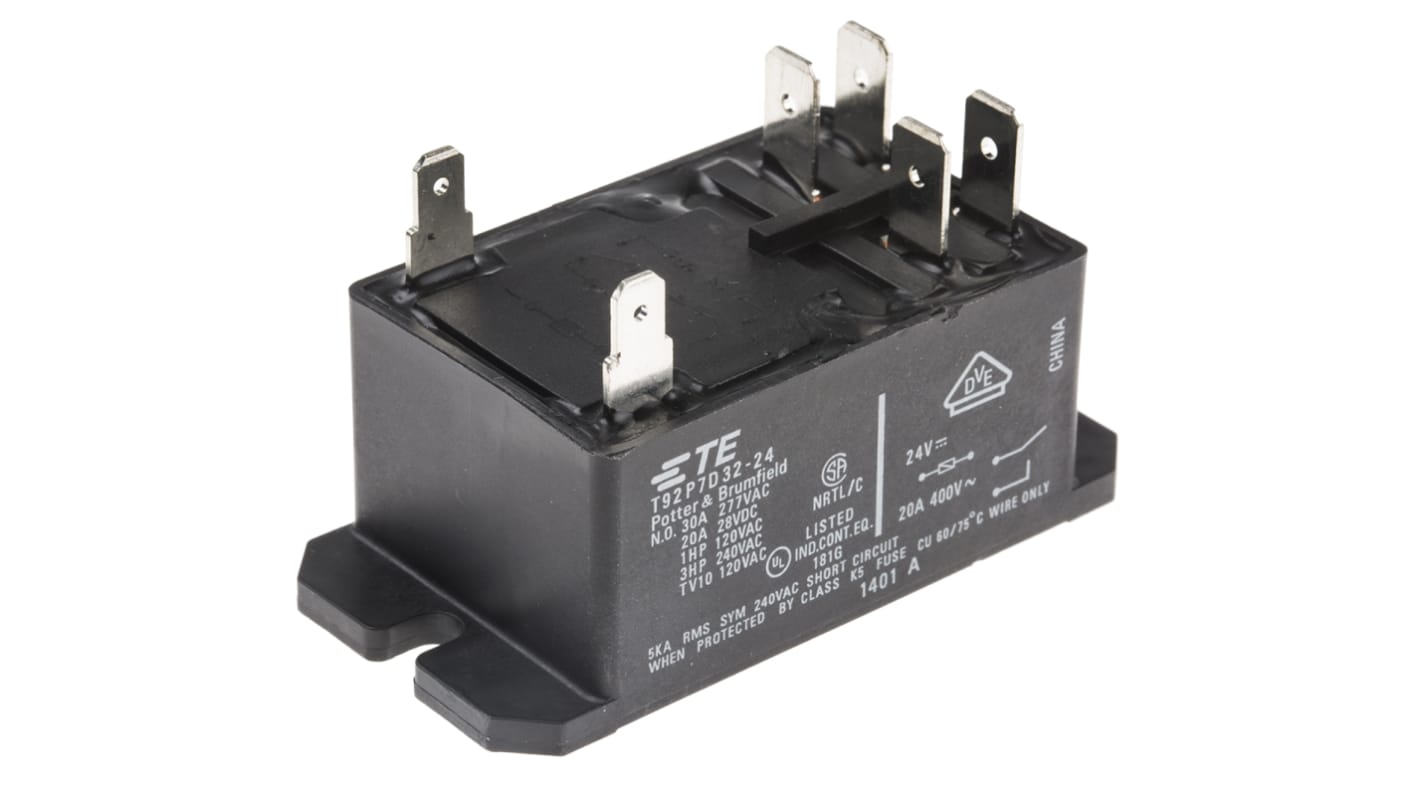

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 30A Switching Current, DPST
- RS Stock No.:
- 745-5977
- Distrelec Article No.:
- 302-21-315
- Mfr. Part No.:
- 7-1393211-4
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£32.83
(exc. VAT)
£39.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
- Plus 34 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £32.83 |
25 - 49 | £31.22 |
50 - 99 | £30.40 |
100 - 249 | £29.61 |
250 + | £28.82 |
*price indicative
- RS Stock No.:
- 745-5977
- Distrelec Article No.:
- 302-21-315
- Mfr. Part No.:
- 7-1393211-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coil Voltage | 24V dc | |
Contact Configuration | DPST | |
Mounting Type | PCB Mount | |
Switching Current | 30A | |
Number of Poles | 2 | |
Latching | No | |
Series | T92 | |
Terminal Type | Through Hole | |
Maximum Switching Voltage AC | 600V | |
Coil Resistance | 350Ω | |
Coil Power | 1.7W | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +85°C | |
Isolation Coil To Contact | 4kVrms | |
Application | General Purpose | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration DPST | ||
Mounting Type PCB Mount | ||
Switching Current 30A | ||
Number of Poles 2 | ||
Latching No | ||
Series T92 | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 600V | ||
Coil Resistance 350Ω | ||
Coil Power 1.7W | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 4kVrms | ||
Application General Purpose | ||
- COO (Country of Origin):
- CN
TE Connectivity T92 Series PCB and Panel Mount Relays
T92 Series PCB and panel mount relays have with a 30A switching current and a choice of DPST or DPDT contact configurations. These PCB and panel mount relays are available with dust protected plastic cases (part numbers starting T92P) or with wash tight, tape sealed plastic cases (part numbers starting T92S).
T92 series relays with part numbers T92XXX1X-XX are PCB mount
T92 series relays with part numbers T92XXX2X-XX are panel mount via a flanged cover with 6.35 x 0.81mm QC terminals
T92 series relays with part numbers T92XXX3X-XX are panel mount via a flanged cover with 4.75 x 0.81mm QC terminals for coil and 6.35mm for contacts.
T92 series relays with part numbers T92XXX1X-XX are PCB mount
T92 series relays with part numbers T92XXX2X-XX are panel mount via a flanged cover with 6.35 x 0.81mm QC terminals
T92 series relays with part numbers T92XXX3X-XX are panel mount via a flanged cover with 4.75 x 0.81mm QC terminals for coil and 6.35mm for contacts.
30A DPST- NO & DPDT Switching capabilities
New screw terminal version
Operating Temperature Range: -40 → +65°C
Contact Material AgCdO
New screw terminal version
Operating Temperature Range: -40 → +65°C
Contact Material AgCdO
