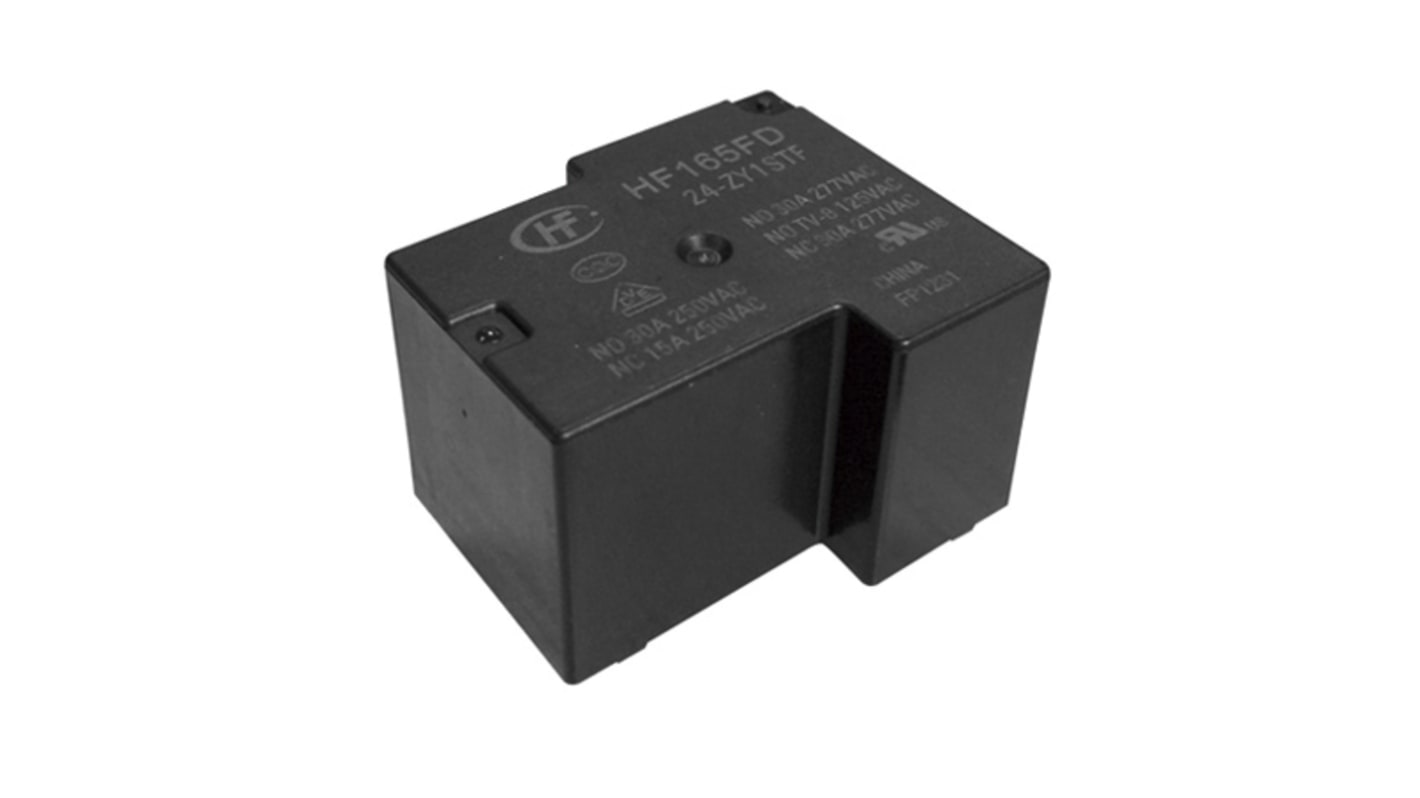

Hongfa Europe GMBH PCB Mount Power Relay, 24V dc Coil, 30A Switching Current, SPST

View all Power Relays
Save 20% when you buy 500 units

Subtotal (1 pack of 2 units)*

£5.14

(exc. VAT)

£6.16

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 72 unit(s) ready to ship
  • Plus 26 unit(s) ready to ship from another location
  • Plus 400 unit(s) shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 98£2.57£5.14
100 - 298£2.385£4.77
300 - 498£2.265£4.53
500 +£2.055£4.11

*price indicative

RS Stock No.:
176-2828
Mfr. Part No.:
HF165FD/24-HY1TF
Brand:
Hongfa Europe GMBH
Find similar products by selecting one or more attributes.
Select all

Brand

Hongfa Europe GMBH

Coil Voltage

24V dc

Contact Configuration

SPST

Mounting Type

PCB Mount

Switching Current

30A

Number of Poles

1

Latching

No

Terminal Type

PCB Pin

Maximum Switching Voltage AC

277V

Maximum Switching Current DC

30 A

Maximum Switching Current AC

30 A

Length

32.2mm

Coil Resistance

660Ω

Coil Power

900mW

Series

HF165FD

Height

20.4mm

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Isolation Coil To Contact

6kV

Contact Material

Silver Alloy

Depth

27.5mm

Life

1 x 10^7 cycles

Maximum Switching Power AC

8.31 kVA
