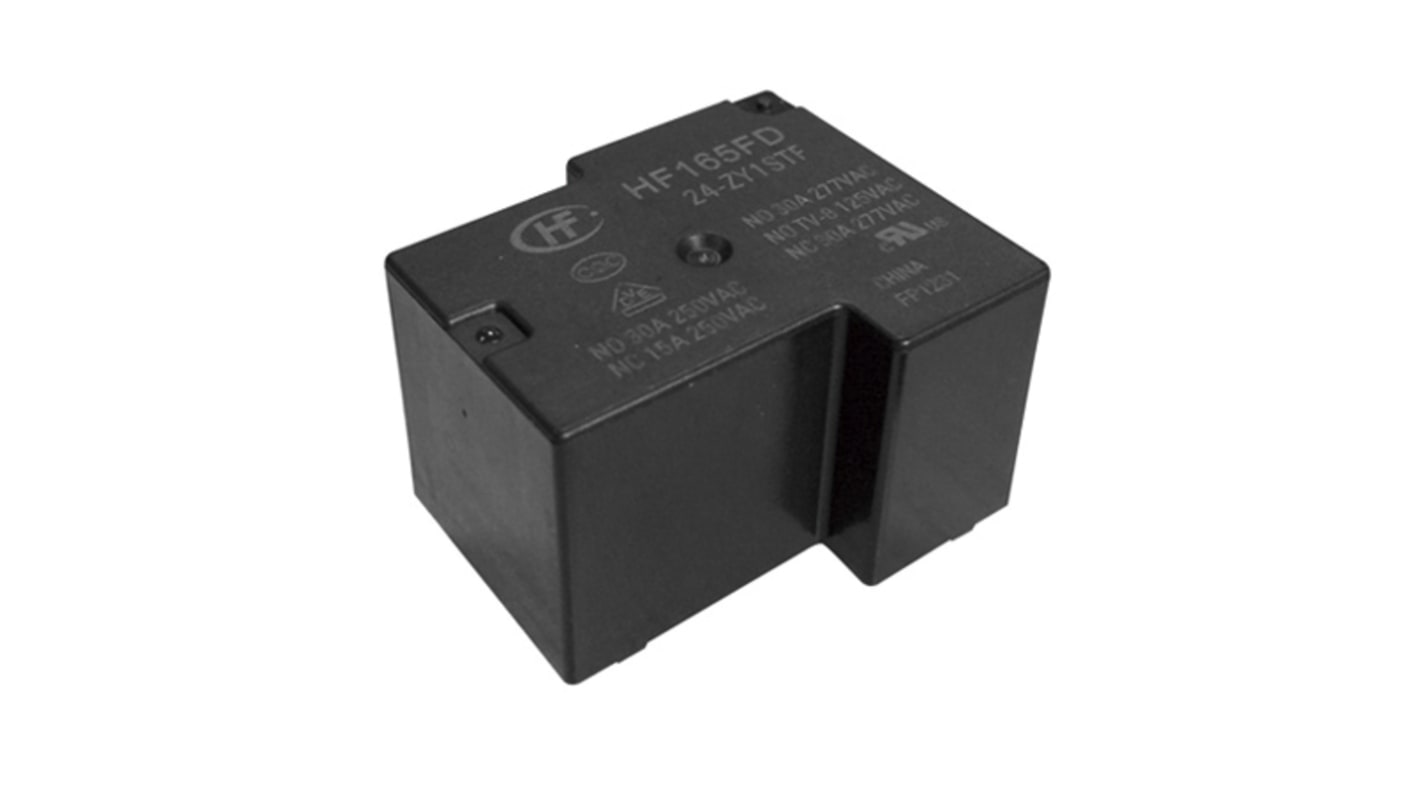

Hongfa Europe GMBH PCB Power Relay, 12V dc Coil, 30A Switching Current, SPST
- RS Stock No.:
- 176-2635
- Mfr. Part No.:
- HF165FD/12-HY1TF
- Brand:
- Hongfa Europe GMBH
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 2)
£2.475
(exc. VAT)
£2.97
(inc. VAT)
- RS Stock No.:
- 176-2635
- Mfr. Part No.:
- HF165FD/12-HY1TF
- Brand:
- Hongfa Europe GMBH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hongfa Europe GMBH | |
| Coil Voltage | 12V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | HF165FD | |
| Terminal Type | PCB Pin | |
| Switching Current | 30A | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 8.3kVA | |
| Switching AC Voltage | 277V ac | |
| Coil Resistance | 155Ω | |
| Maximum Operating Temperature | 85°C | |
| Width | 27.5mm | |
| Standards/Approvals | RoHS | |
| Height | 20.4mm | |
| Length | 32.2mm | |
| Coil Power | 900mW | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Hongfa Europe GMBH | ||
Coil Voltage 12V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series HF165FD | ||
Terminal Type PCB Pin | ||
Switching Current 30A | ||
Minimum Operating Temperature -40°C | ||
Switching Power 8.3kVA | ||
Switching AC Voltage 277V ac | ||
Coil Resistance 155Ω | ||
Maximum Operating Temperature 85°C | ||
Width 27.5mm | ||
Standards/Approvals RoHS | ||
Height 20.4mm | ||
Length 32.2mm | ||
Coil Power 900mW | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
Hongfa SPNO Non-Latching Relay
The Hongfa SPNO 1-pole non-latching PCB mount relay is actuated with the help of a 12VDC coil and up to 30A DC/AC current through the coil to switch positions. It is a miniature high power latching relay. It can be used in single coil winding configuration. This relay has silver alloy contact for high electrical endurance.
Features and Benefits
• Environmental friendly product
• Isolation voltage between the coil and contacts is 6KVAC
• Service temperature range between -40°C and 85°C
• High surge withstand voltage up to 6KV
• High mechanical endurance and life expectancy of 10M cycles
• Resistant to vibration and abrasion
• Shock resistant
• Low power consumption
• Offers excellent board space saving
Applications
• Used as a control device
• Automotive industry
• Household appliances
• Industrial machinery
• Telecommunication
