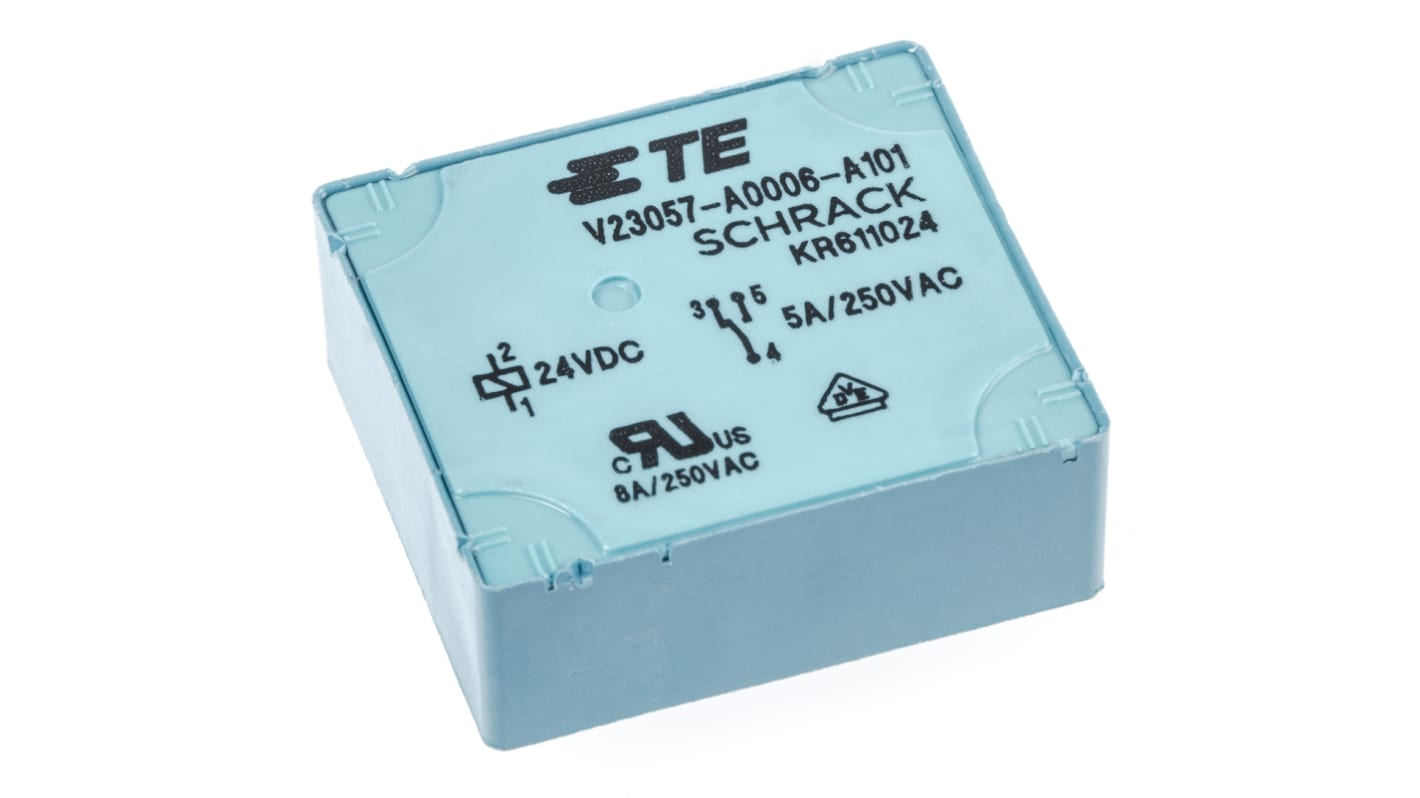

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 5A Switching Current, SPDT
- RS Stock No.:
- 135-4653
- Mfr. Part No.:
- V23057A6A101
- Brand:
- TE Connectivity
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (In a Box of 20)
£14.23
(exc. VAT)
£17.08
(inc. VAT)
| Units | Per unit | Per Box* |
| 20 + | £14.23 | £284.60 |
| *price indicative | ||
- RS Stock No.:
- 135-4653
- Mfr. Part No.:
- V23057A6A101
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
Card E Series
Fully sealed
Operating Temperature Range -40 to +70°C
SPCO
Switching Voltage 250 Vac
Creepage and Clearance 4 mm
Operating Temperature Range -40 to +70°C
SPCO
Switching Voltage 250 Vac
Creepage and Clearance 4 mm
Approvals
UL, C-UL recognised, VDE
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 5A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Through Hole |
| Length | 28mm |
| Coil Resistance | 1200Ω |
| Minimum Operating Temperature | -40°C |
| Series | Card E |
| Height | 10.8mm |
| Maximum Operating Temperature | +70°C |
| Depth | 25mm |
| Contact Material | Silver Alloy |
| Maximum Switching Power AC | 1.25 kVA |
| Application | Power |
