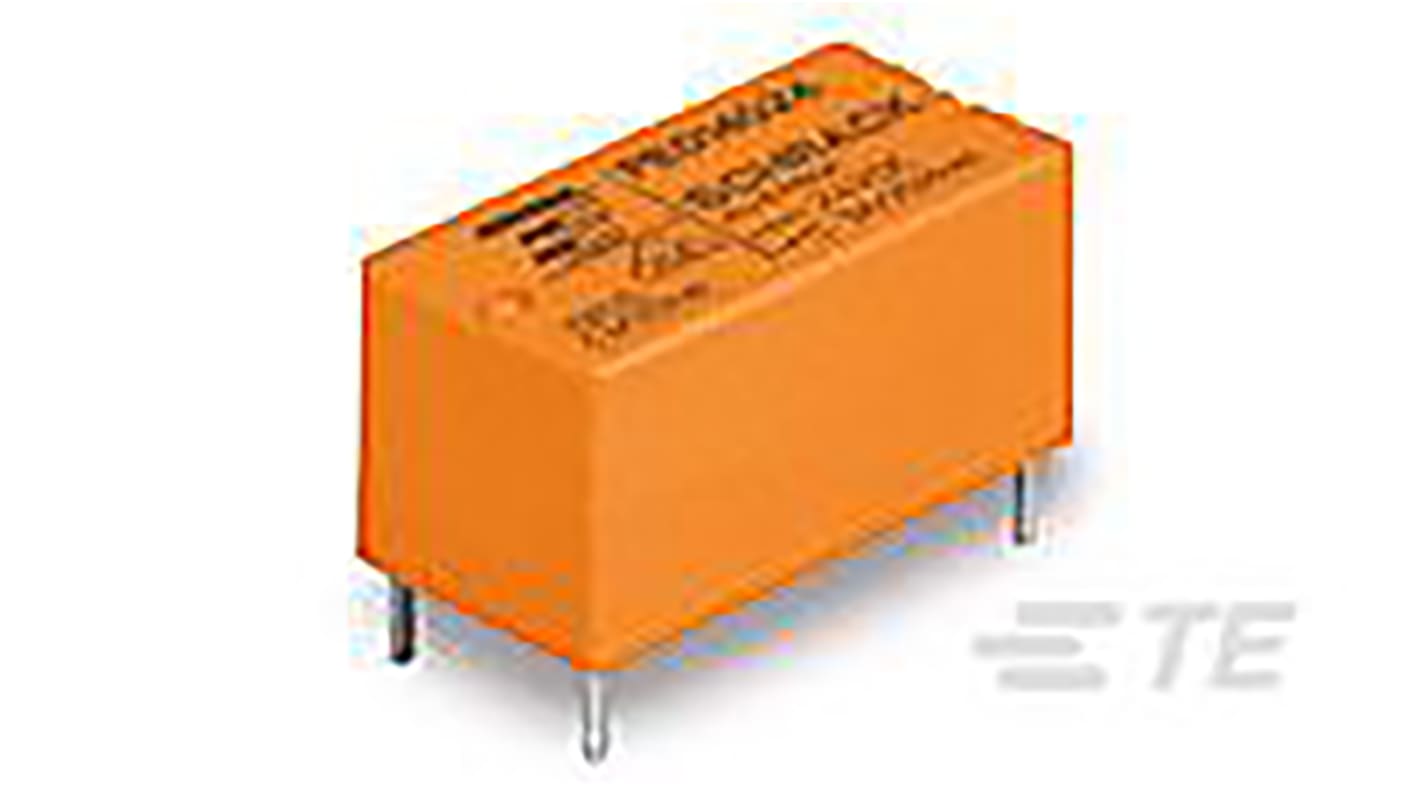

TE Connectivity PCB Mount Latching Power Relay, 2.2V dc Coil, 5A Switching Current, SPDT
- RS Stock No.:
- 191-8318
- Mfr. Part No.:
- 9-1415389-1
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 191-8318
- Mfr. Part No.:
- 9-1415389-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 2.2V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 5A | |
| Number of Poles | 1 | |
| Latching | Yes | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 400V | |
| Length | 20mm | |
| Coil Resistance | 22 Ω | |
| Coil Power | 220mW | |
| Life | 5 x 10^6 (Mechanical) cycles | |
| Isolation Coil To Contact | 4000Vrms | |
| Maximum Operating Temperature | +85°C | |
| Series | PE | |
| Height | 10mm | |
| Depth | 10mm | |
| Contact Material | Silver Alloy | |
| Minimum Operating Temperature | -40°C | |
| Maximum Switching Power AC | 220 mW | |
| Dimensions | 20 x 10 x 10mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 2.2V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 1 | ||
Latching Yes | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 400V | ||
Length 20mm | ||
Coil Resistance 22 Ω | ||
Coil Power 220mW | ||
Life 5 x 10^6 (Mechanical) cycles | ||
Isolation Coil To Contact 4000Vrms | ||
Maximum Operating Temperature +85°C | ||
Series PE | ||
Height 10mm | ||
Depth 10mm | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
Maximum Switching Power AC 220 mW | ||
Dimensions 20 x 10 x 10mm | ||
PE Series - Bistable/Latching Relays
Single-coil polarised latching (bistable) relay
High coil sensitivity: 200mW
1 C/O Contact, 5A
Isolation coil to contact: 4000Vac
Maximum switching voltage 250Vac
Operating temperature range -40 to +85°C
H 10mm, W 20mm, D 10mm
High coil sensitivity: 200mW
1 C/O Contact, 5A
Isolation coil to contact: 4000Vac
Maximum switching voltage 250Vac
Operating temperature range -40 to +85°C
H 10mm, W 20mm, D 10mm
Approvals
VDE
Polarized bistable version
1 pole 5 A, 1 form C (CO) or 6A, 1 form A (NO) contact
Sensitive version with 200mW coil
Ambient temperature 70°C
Low height 10.0mm
1 pole 5 A, 1 form C (CO) or 6A, 1 form A (NO) contact
Sensitive version with 200mW coil
Ambient temperature 70°C
Low height 10.0mm
