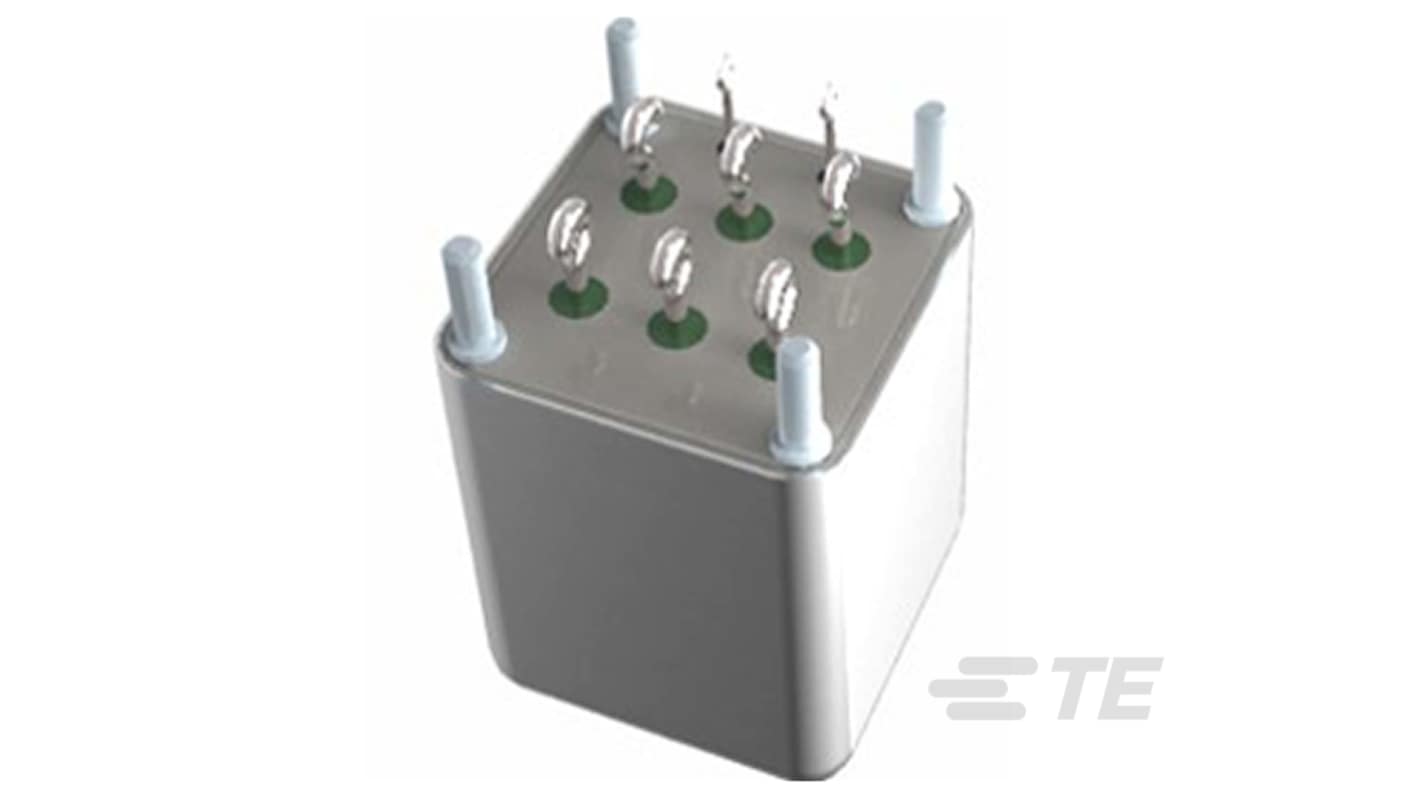

TE Connectivity Panel Power Relay, 28V dc Coil, 3 NO
- RS Stock No.:
- 481-928
- Distrelec Article No.:
- 303-50-712
- Mfr. Part No.:
- 3-1617764-5
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£1,229.97
(exc. VAT)
£1,475.96
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,229.97 |
*price indicative
- RS Stock No.:
- 481-928
- Distrelec Article No.:
- 303-50-712
- Mfr. Part No.:
- 3-1617764-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 28V dc | |
| Contact Configuration | 3 NO | |
| Mount Type | Panel | |
| Series | CII FC-325 | |
| Terminal Type | Solder | |
| Minimum Operating Temperature | -70°C | |
| Coil Resistance | 160Ω | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Contact Material | Silver Alloy Gold Plated | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 28V dc | ||
Contact Configuration 3 NO | ||
Mount Type Panel | ||
Series CII FC-325 | ||
Terminal Type Solder | ||
Minimum Operating Temperature -70°C | ||
Coil Resistance 160Ω | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Contact Material Silver Alloy Gold Plated | ||
Non Compliant
- COO (Country of Origin):
- US
The TE Connectivity General-purpose power relay is engineered for reliable DC applications, boasting a non-polarized, monostable design suitable for various panel mount configurations. Delivering a commendable 25 A contact rating and a 28 VDC coil voltage, this relay excels in both durability and performance. Its hermetically sealed enclosure provides robust protection against environmental factors, ensuring a long lifespan. Designed with efficiency in mind, it features solder hook terminals for both coil and main connections, making installation straightforward for technicians and engineers alike. This product seamlessly integrates into diverse electrical systems, serving a crucial role in enhancing circuit performance and reliability.
Delivers exceptional performance in demanding DC applications
Designed with a non polarized and monostable coil magnetic system
Hermetically sealed for enhanced protection against dust and moisture
Features a user friendly panel mount design for easy installation
Solder hook terminals facilitate secure and reliable connections
Achieves high vibration and shock resistance for improved resilience
Utilises silver cadmium oxide contact material for superior conductivity
Low halogen content supports environmental compliance and safety
