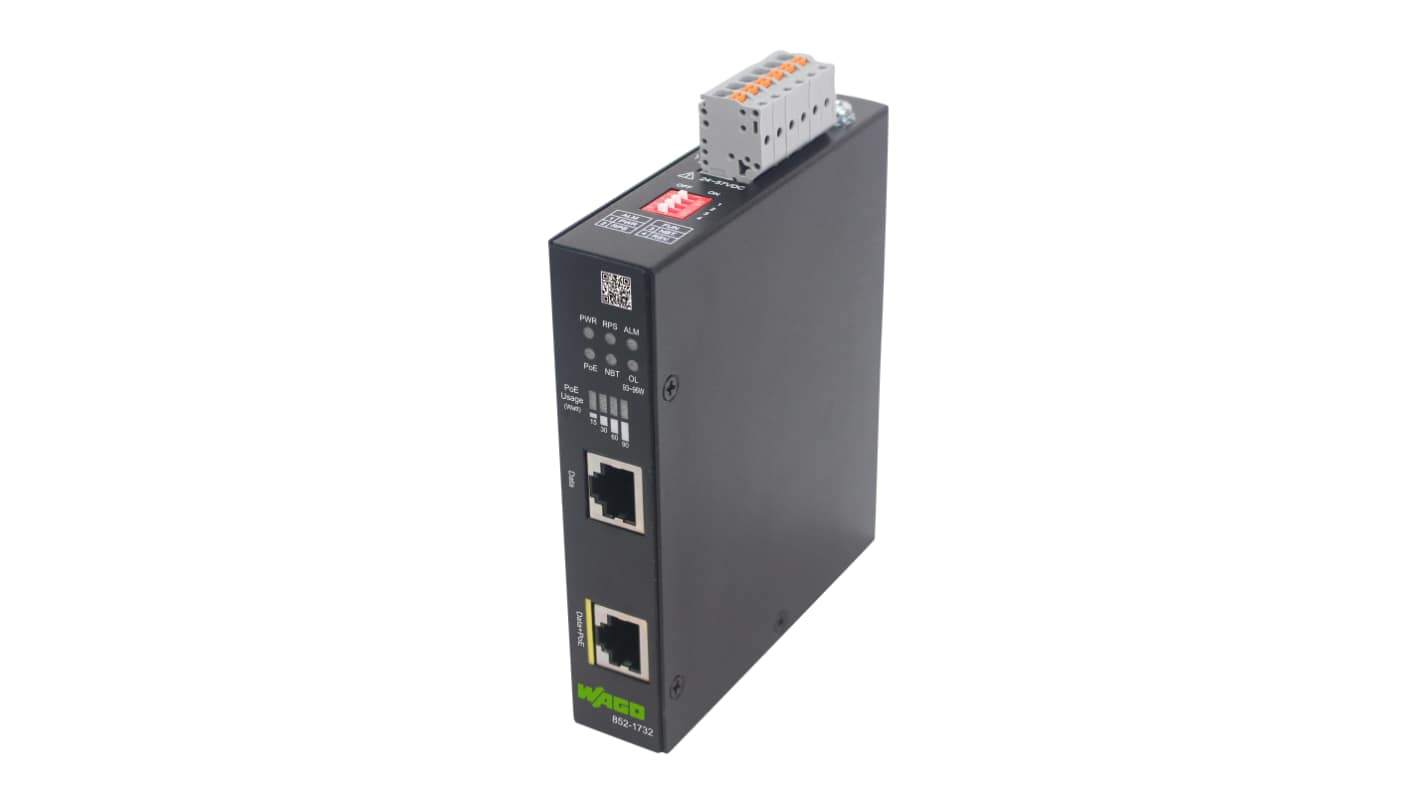

WAGO 2 Port PoE Injector, 24V dc, 57 V dc Input 120 W, 24V dc, 57 V dc Output, 5 A
- RS Stock No.:
- 676-024
- Mfr. Part No.:
- 852-1732
- Brand:
- WAGO
Subtotal (1 unit)*
£210.00
(exc. VAT)
£252.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
- Plus 2 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £210.00 |
*price indicative
- RS Stock No.:
- 676-024
- Mfr. Part No.:
- 852-1732
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Maximum Data Rate | 1000Mbps | |
| Product Type | PoE Injector | |
| Input Voltage | 24, 57V dc | |
| Output Voltage | 24, 57V dc | |
| Output Current | 5A | |
| Number of Outputs | 2 | |
| Mount Type | DIN Rail | |
| Power | 120W | |
| Width | 25mm | |
| Depth | 100mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | IEEE 802.3, UL 61010-2-201, Clause 3, KC National Radio Research Agency Article 58-2, CE, 802.3u, 802.3ab | |
| Weight | 243.8g | |
| Number of Ethernet Ports | 2 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Maximum Data Rate 1000Mbps | ||
Product Type PoE Injector | ||
Input Voltage 24, 57V dc | ||
Output Voltage 24, 57V dc | ||
Output Current 5A | ||
Number of Outputs 2 | ||
Mount Type DIN Rail | ||
Power 120W | ||
Width 25mm | ||
Depth 100mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals IEEE 802.3, UL 61010-2-201, Clause 3, KC National Radio Research Agency Article 58-2, CE, 802.3u, 802.3ab | ||
Weight 243.8g | ||
Number of Ethernet Ports 2 | ||
Industrial PoE Injector; PoE++; 90 watt;
The Wago Industrial PoE injector with two Gigabit ETHERNET ports. An ETHERNET port provides power to PoE devices with up to 71 W. The power output of the PoE injector is up to 90 W. Additionally, automatic transmission rate detection and automatic detection of the transmit and receive lines allow simple plug-and-play operation.
Redundant DC power supply
IP30 protection
DIP switch to set alarm functions
RoHS compliant
