WAGO 2 Port PoE Injector, 24V dc, 57 V dc Input 90 W, 24V dc, 57 V dc Output, 4 A
- RS Stock No.:
- 676-026
- Mfr. Part No.:
- 852-1731
- Brand:
- WAGO
Subtotal (1 unit)*
£190.00
(exc. VAT)
£228.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 3 unit(s) shipping from 19 November 2026
- Plus 1 unit(s) shipping from 10 December 2026
- Plus 8 unit(s) shipping from 14 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £190.00 |
*price indicative
- RS Stock No.:
- 676-026
- Mfr. Part No.:
- 852-1731
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Maximum Data Rate | 1000Mbps | |
| Input Voltage | 24V dc, 57V dc | |
| Product Type | PoE Injector | |
| Output Voltage | 24V dc, 57V dc | |
| Output Current | 4A | |
| Number of Outputs | 2 | |
| Mount Type | DIN Rail | |
| Power | 90W | |
| Width | 25mm | |
| Minimum Operating Temperature | -40°C | |
| Depth | 100mm | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | UL 61010-2-201, RoHS, KC National Radio Research Agency, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3, EN IEC 61000-6-4, EN IEC 61000-6-2, CE, 802.3u, 802.3ab | |
| Weight | 242.8g | |
| Number of Ethernet Ports | 2 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Maximum Data Rate 1000Mbps | ||
Input Voltage 24V dc, 57V dc | ||
Product Type PoE Injector | ||
Output Voltage 24V dc, 57V dc | ||
Output Current 4A | ||
Number of Outputs 2 | ||
Mount Type DIN Rail | ||
Power 90W | ||
Width 25mm | ||
Minimum Operating Temperature -40°C | ||
Depth 100mm | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals UL 61010-2-201, RoHS, KC National Radio Research Agency, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3, EN IEC 61000-6-4, EN IEC 61000-6-2, CE, 802.3u, 802.3ab | ||
Weight 242.8g | ||
Number of Ethernet Ports 2 | ||
- COO (Country of Origin):
- TW
Industrial PoE Injector; PoE++; 60 watt;

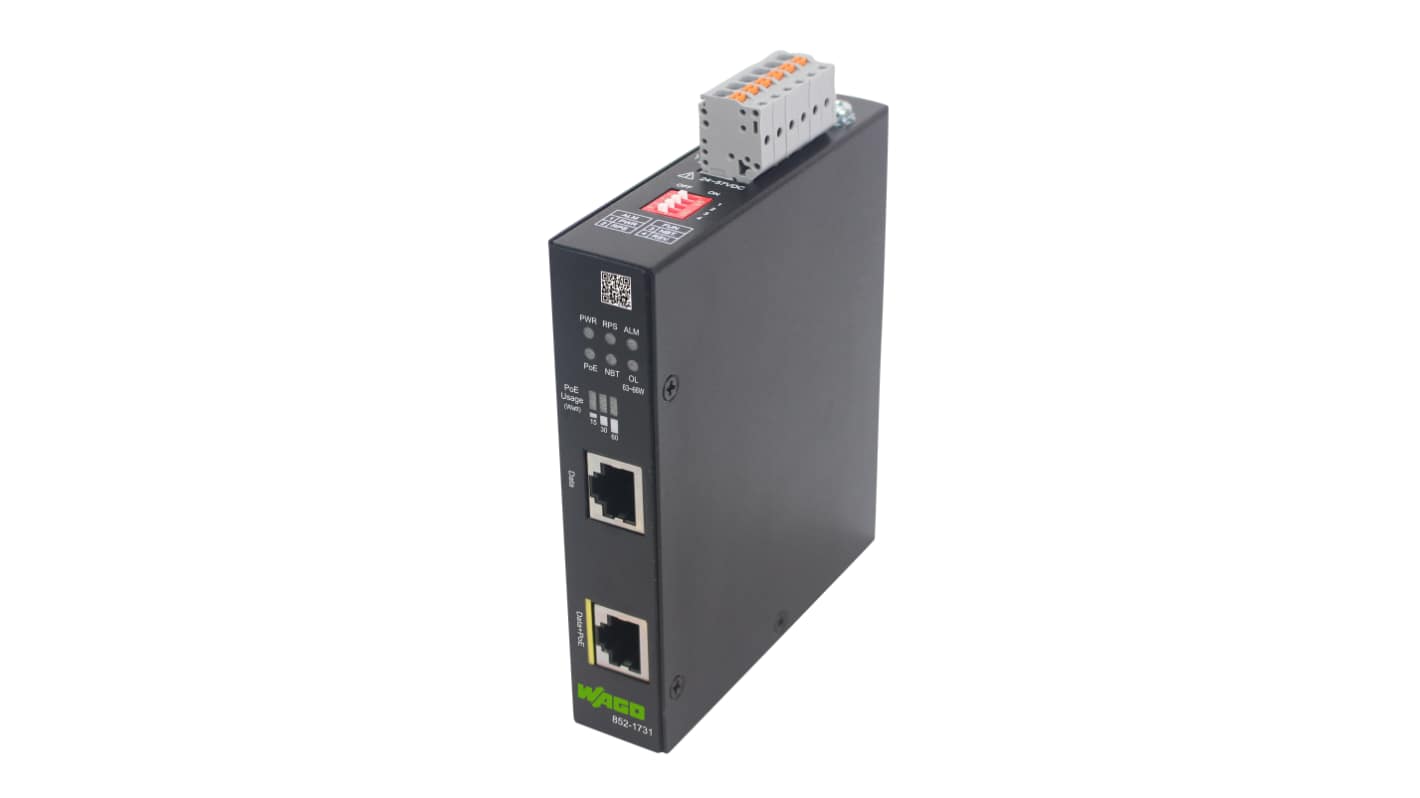

The Wago Industrial PoE injector with two Gigabit ETHERNET ports provides power to PoE devices with up to 51 W. The power output of the PoE injector is up to 60 W. Additionally, automatic transmission rate detection and automatic detection of the transmit and receive lines allow simple plug-and-play operation. Its compact design with a DIN-rail adapter simplifies installation in control cabinets, offering high resistance to temperature, vibration, and shock.
Redundant DC power supply
IP30 protection
DIP switch to set alarm functions
RoHS compliant
