Norgren Pneumatic Solenoid Valve - 2/2 NC Solenoid/Spring G V04 Series 120V ac
- RS Stock No.:
- 227-3446
- Mfr. Part No.:
- V04B286M-B428A
- Brand:
- Norgren

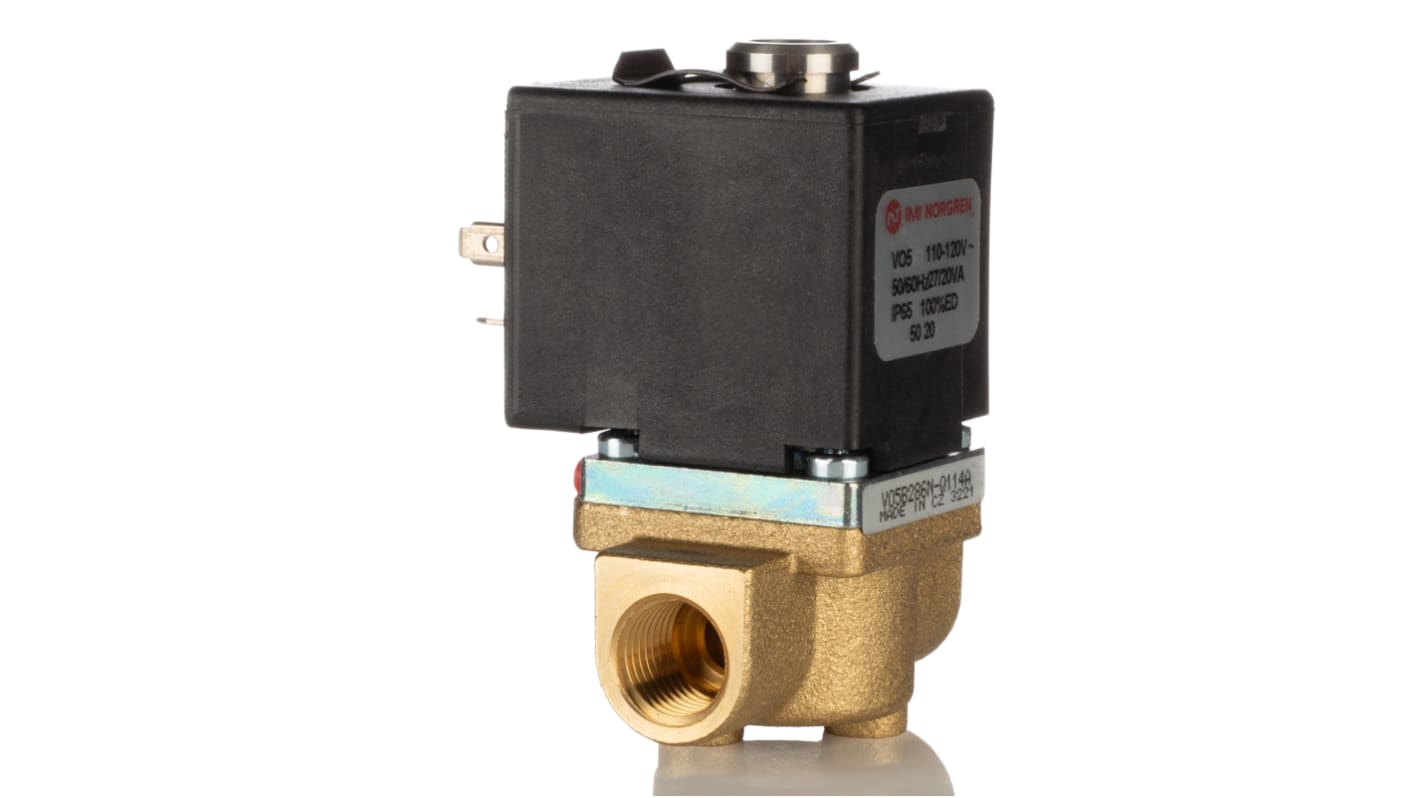

Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£160.75
(exc. VAT)
£192.90
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £160.75 |
| 5 + | £155.75 |
*price indicative
- RS Stock No.:
- 227-3446
- Mfr. Part No.:
- V04B286M-B428A
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Pneumatic Solenoid Valve | |
| Port Size | 1/4 in | |
| Port Type | Push-in | |
| Connection Thread Standard | G | |
| Actuation Type | Solenoid/Spring | |
| Series | V04 | |
| Voltage | 120V ac | |
| Seal Material | Nitrile Rubber (NBR) | |
| Mount Type | In-Line, Manifold | |
| Number of Ports | 2 | |
| Body Material | Brass | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Pilot Pressure | 10bar | |
| Minimum Pilot Pressure | 0bar | |
| Mount Pattern | DIN | |
| Minimum Operating Temperature | -20°C | |
| Valve Function | 2/2 NC | |
| Maximum Flow Rate | 190L/min | |
| Solenoid Power Consumption | 4.5W | |
| Maximum Operating Temperature | 50°C | |
| Height | 83mm | |
| Length | 69mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | No | |
| Width | 50mm | |
| Electrical Connection Type | 3-Pin Plug | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Pneumatic Solenoid Valve | ||
Port Size 1/4 in | ||
Port Type Push-in | ||
Connection Thread Standard G | ||
Actuation Type Solenoid/Spring | ||
Series V04 | ||
Voltage 120V ac | ||
Seal Material Nitrile Rubber (NBR) | ||
Mount Type In-Line, Manifold | ||
Number of Ports 2 | ||
Body Material Brass | ||
Maximum Operating Pressure 10 bar | ||
Maximum Pilot Pressure 10bar | ||
Minimum Pilot Pressure 0bar | ||
Mount Pattern DIN | ||
Minimum Operating Temperature -20°C | ||
Valve Function 2/2 NC | ||
Maximum Flow Rate 190L/min | ||
Solenoid Power Consumption 4.5W | ||
Maximum Operating Temperature 50°C | ||
Height 83mm | ||
Length 69mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals No | ||
Width 50mm | ||
Electrical Connection Type 3-Pin Plug | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
IMI Norgren Excel Solenoid Actuated Poppet Valves
The V03, V04 and V05 series of IMI Norgren solenoid valves provide a wide range of power consumption and flow rate options to help you choose the perfect valve for your pneumatic system.
These valves can be used with compressed air, filtered, lubricated or non-lubricated. They feature a solenoid coil, polyester interface, IP65 ingress protection rating (with connector plug), and G1/8, G1/4 and 7mm interface porting. The base is zinc alloy (G1/8) or brass (G1/4). These solenoid valves have DIN 43650 Form A electrical connection (connector plug must be ordered separately).
Features and Benefits:
• Exhaust diffuser is supplied as standard
• Uses durable stainless-steel tube and spring
• Nitrile seals offer excellent resistance to moisture, oil, grease, and abrasions and high tensile strength
• Reduced installation height due to convenient compact size
• Glass reinforced removable nylon coil with stainless iron armature
What are poppet valves?
A poppet valve is a component used in pneumatic and hydraulic systems to help control flow of air or liquids. They are typically controlled via solenoids and can be set as either Normally Open or Normally Closed. They have faster response times compared to spool valves and a long service life due to less friction.
