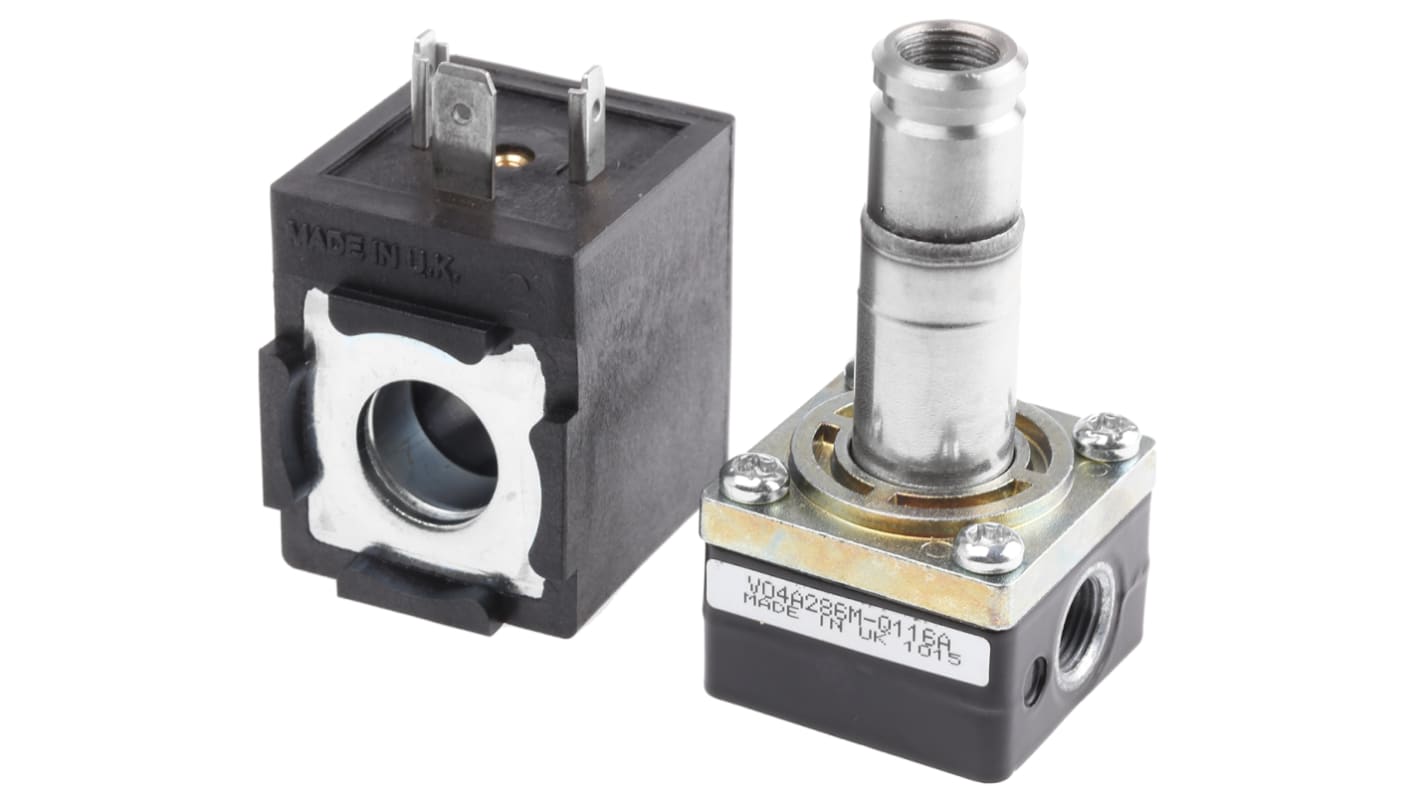

Norgren 2/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/8 V04 Series 24V dc
- RS Stock No.:
- 227-3395
- Mfr. Part No.:
- V04A286M-B623A
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£124.38
(exc. VAT)
£149.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 27 October 2025
- Plus 3 unit(s) shipping from 27 October 2025
- Plus 999,999,996 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £124.38 |
| 5 + | £120.52 |
*price indicative
- RS Stock No.:
- 227-3395
- Mfr. Part No.:
- V04A286M-B623A
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Function | 2/2 | |
| Connection Port Thread | G 1/8 | |
| Actuation Type | Solenoid/Spring | |
| Manufacturer Series | V04 | |
| Mounting Style | Inline, Manifold | |
| Solenoid Voltage | 24V dc | |
| Solenoid Fitted | Yes | |
| Number of Ports | 2 | |
| Body Material | Zinc Alloy | |
| Maximum Flow Rate | 190L/min | |
| Minimum Operating Pressure | 0bar | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Pressure | 10bar | |
| Number of Positions | 2 | |
| Thread Size | 1/8in | |
| Maximum Operating Temperature | +50°C | |
| Thread Standard | G | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Function 2/2 | ||
Connection Port Thread G 1/8 | ||
Actuation Type Solenoid/Spring | ||
Manufacturer Series V04 | ||
Mounting Style Inline, Manifold | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Number of Ports 2 | ||
Body Material Zinc Alloy | ||
Maximum Flow Rate 190L/min | ||
Minimum Operating Pressure 0bar | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Pressure 10bar | ||
Number of Positions 2 | ||
Thread Size 1/8in | ||
Maximum Operating Temperature +50°C | ||
Thread Standard G | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Solenoid Valve, Poppet Type, 2/2 Function - V04 Series - V04A286M-B623A
Direct the flow of air in your systems with this poppet-type solenoid valve from IMI Norgren. It's a 2/2 unit, which means it has two ports (inlet and outlet) and operates in two positions, so it's a versatile option for the distribution of compressed and filtered, as well as lubricated and non-lubricated air. Its durable zinc body is resistant to corrosion and impact, making it a robust choice for challenging environments. Oil-resistant nitrile rubber seals resist corrosion and prevent leakage and contamination, giving reliable long-term performance and reducing maintenance downtime.
Features & Benefits
• IP65 rating means it's sealed against dust and can withstand low-pressure water jets from any direction
• Voltage rating of 24V DC makes it suitable for low-voltage equipment
• Broad operating pressure of 0 to 10 bar for wide-ranging use
• Comes complete with an exhaust diffuser, so no extra parts are needed
• Voltage rating of 24V DC makes it suitable for low-voltage equipment
• Broad operating pressure of 0 to 10 bar for wide-ranging use
• Comes complete with an exhaust diffuser, so no extra parts are needed
Applications
• Air compressors
• Medical equipment
• Automotive industry
• Medical equipment
• Automotive industry
How do I attach this solenoid valve?
This valve is easily mounted using a simple wrench to attach it to a port via its G1/8 thread. This gives you a secure and vibration-proof connection to your equipment.
