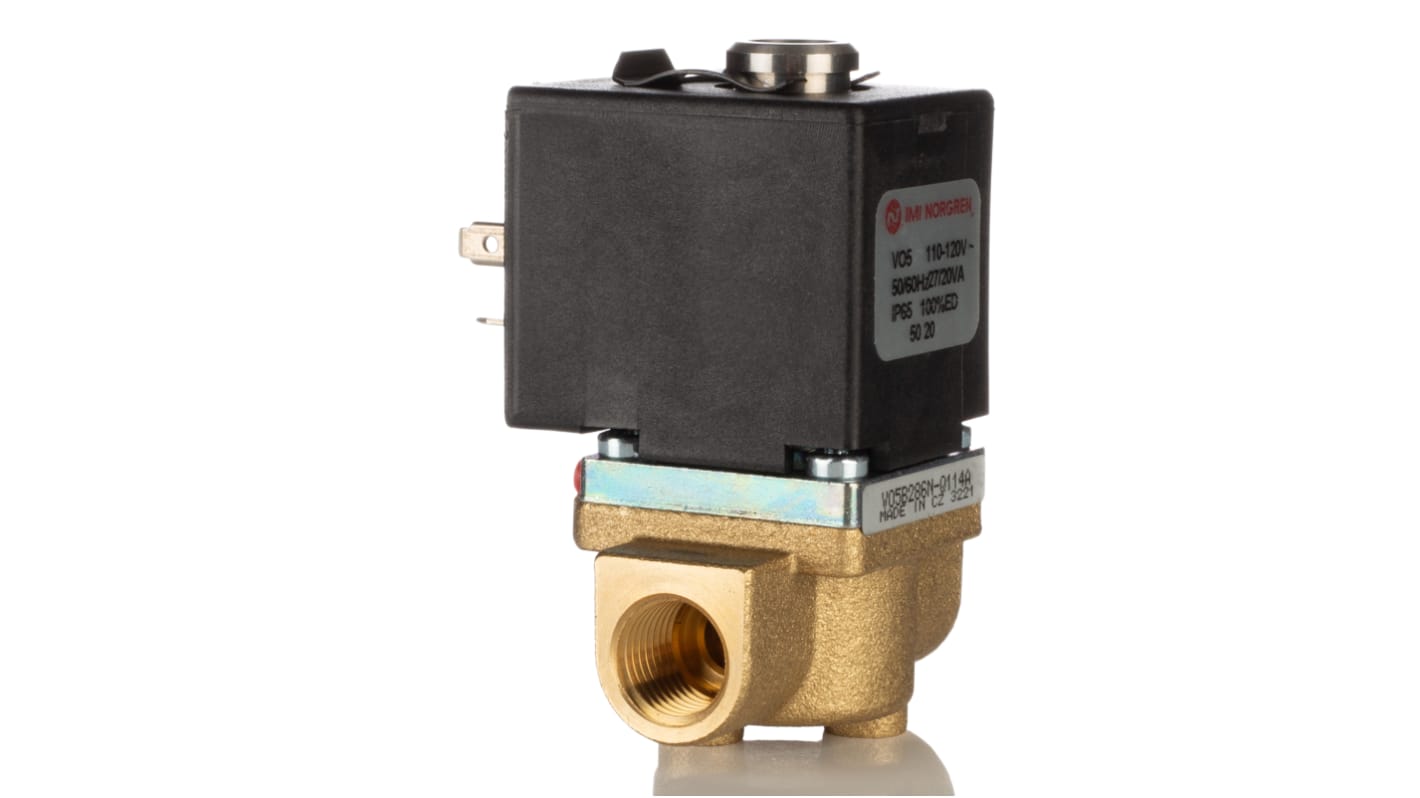

Norgren 2/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/4 V05 Series 110→120V ac, V05B286N
- RS Stock No.:
- 227-3531
- Mfr. Part No.:
- V05B286N-B438A
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£159.19
(exc. VAT)
£191.03
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 5 unit(s) shipping from 06 October 2025
- Plus 1 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £159.19 |
5 + | £154.25 |
*price indicative
- RS Stock No.:
- 227-3531
- Mfr. Part No.:
- V05B286N-B438A
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Function | 2/2 | |
Connection Port Thread | G 1/4 | |
Actuation Type | Solenoid/Spring | |
Manufacturer Series | V05 | |
Mounting Style | Inline, Manifold | |
Solenoid Voltage | 110→120V ac | |
Solenoid Fitted | Yes | |
Number of Ports | 2 | |
Body Material | Brass | |
Maximum Flow Rate | 260L/min | |
Minimum Operating Pressure | 0bar | |
Maximum Operating Pressure | 13bar | |
Configuration | NC | |
Thread Size | 1/4in | |
Number of Positions | 2 | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +50°C | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand Norgren | ||
Function 2/2 | ||
Connection Port Thread G 1/4 | ||
Actuation Type Solenoid/Spring | ||
Manufacturer Series V05 | ||
Mounting Style Inline, Manifold | ||
Solenoid Voltage 110→120V ac | ||
Solenoid Fitted Yes | ||
Number of Ports 2 | ||
Body Material Brass | ||
Maximum Flow Rate 260L/min | ||
Minimum Operating Pressure 0bar | ||
Maximum Operating Pressure 13bar | ||
Configuration NC | ||
Thread Size 1/4in | ||
Number of Positions 2 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +50°C | ||
Thread Standard G | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
IMI Norgren Pneumatic Solenoid Valve, Manifold Mounting Style, Brass Body - V05 Series - V05B286N-B438A
Give compressed air a push in the right direction with this solenoid valve from IMI Norgren. Thanks to a top flow rate of 260L/min, you can trust it to keep your pneumatic system running quickly and smoothly. Electronically controlled via its inner coil, this nifty unit delivers a response time as quick as 8m/s. Nitrile rubber seals keep the insides clear of oil and contaminants, so you get seamless performance. A solenoid voltage range of 110 to 120V AC means this valve is a handy choice for high-power applications.
Features & Benefits
• Removable inside coil for easy replacement and maintenance
• Brass body is resistant to corrosion so it's suitable for humid conditions
• Standard G1/4 thread is widely compatible
• Functions at temperatures as low as -20°C for use in very cold environments
• IP65 rating means it's shielded from dust and water jets
• Brass body is resistant to corrosion so it's suitable for humid conditions
• Standard G1/4 thread is widely compatible
• Functions at temperatures as low as -20°C for use in very cold environments
• IP65 rating means it's shielded from dust and water jets
Applications
• Engineering facilities
• Automation and control mechanics
• Industrial hydraulics
• Medical devices
• Automation and control mechanics
• Industrial hydraulics
• Medical devices
What's the maximum operating pressure of this product?
This product has a maximum operating pressure of 13 bar, so you can use it in demanding industrial applications.
