Norgren 3/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/8 V05 Series 24V dc

View all Pneumatic Solenoid Valves
Bulk discount available

Subtotal (1 unit)*

£118.57

(exc. VAT)

£142.28

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£118.57
5 +£114.90

*price indicative

Pneumatic Solenoid Valves to Solenoid Valve Coils
Need Coils for Your Solenoid Valves?
Pneumatic solenoid valves rely on compatible coils to operate efficiently. If you're browsing valves, don’t forget to check out our range of solenoid valve coils—designed to deliver reliable actuation and optimal performance. Whether you're replacing a coil or building a new system, pairing your valve with the right coil ensures smooth and responsive control.
Shop Now
RS Stock No.:
227-3553
Mfr. Part No.:
V05A486M-B633A
Brand:
Norgren
Find similar products by selecting one or more attributes.
Select all

Brand

Norgren

Function

3/2

Connection Port Thread

G 1/8

Actuation Type

Solenoid/Spring

Manufacturer Series

V05

Mounting Style

Inline, Manifold

Solenoid Voltage

24V dc

Solenoid Fitted

Yes

Number of Ports

3/2

Body Material

Zinc Alloy

Maximum Flow Rate

190L/min

Minimum Operating Pressure

0bar

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+50°C

Thread Size

1/8in

Maximum Operating Pressure

10bar

Thread Standard

G

RoHS Status: Exempt

COO (Country of Origin):
CZ

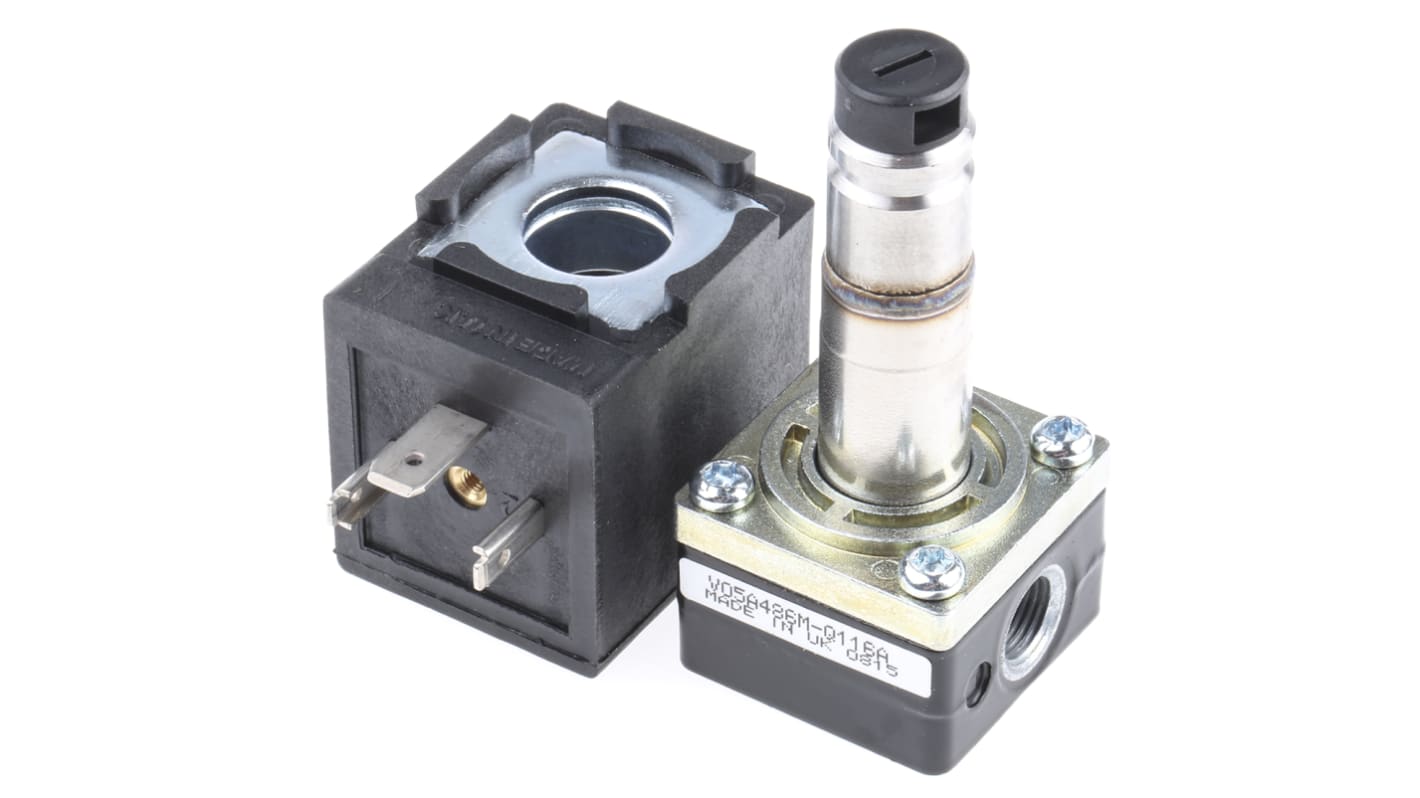

IMI Norgren Pneumatic Solenoid Valve, Zinc Alloy Body Material, 10 Bar Maximum Operating Pressure - V05 Series - V05A486M-B633A


Looking for a device to control the flow of compressed air through your system? Choose this pneumatic solenoid valve from IMI Norgren. For versatility, it's compatible with filtered and non-filtered air, both lubricated and non-lubricated. Actuation is controlled by a solenoid spring that opens and closes using electromagnetic power, making operation fully automated. This unit has a poppet valve that generates low friction to give you fast response times and a long service life. The coil can be removed, which makes it easier to replace and minimises maintenance.

Features & Benefits


• 8 to 15ms response time gives you a high level of control and boosts your workflow
• 190L/min flow rate supports demanding applications
• Broad ambient operating temperature range between -30°C and +50°C for use in harsh environments
• Operates at pressures from 0 to 10 bar for wide compatibility

Applications


• Assembly lines
• Industrial automation
• Chemical processing industry

What type of seals does this solenoid valve have?


This component uses NBR seals that block fluids, dust and other small particles. NBR is corrosion-resistant and doesn't react to chemicals, oils and other liquids, which helps ensure a long service life.
