Norgren Pneumatic Solenoid Valve - 3/2 Solenoid/Spring G V05 Series 240V ac
- RS Stock No.:
- 227-3301
- Mfr. Part No.:
- V05X486M-B639A
- Brand:
- Norgren

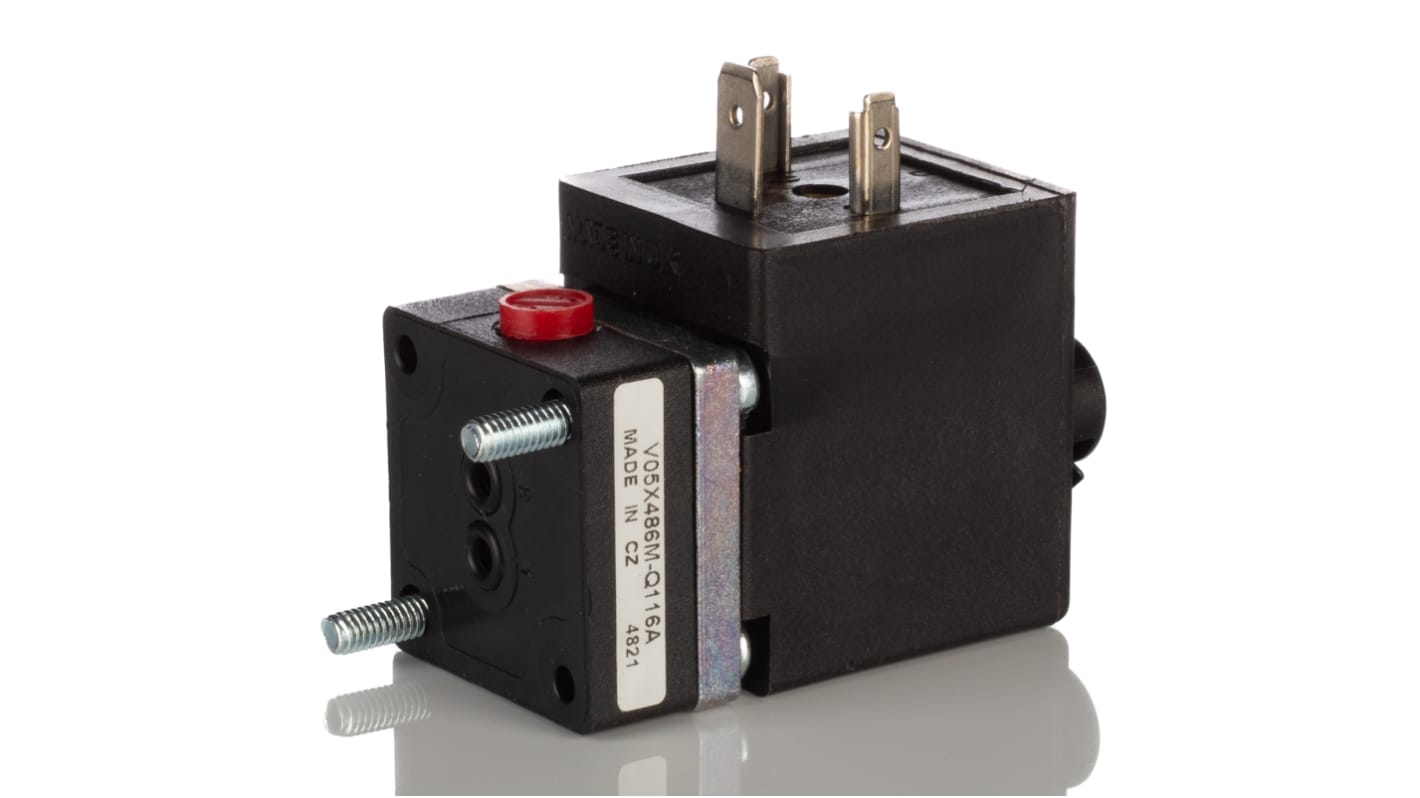

Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£133.24
(exc. VAT)
£159.89
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £133.24 |
| 5 + | £129.11 |
*price indicative
- RS Stock No.:
- 227-3301
- Mfr. Part No.:
- V05X486M-B639A
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Pneumatic Solenoid Valve | |
| Port Type | Push-in | |
| Port Size | 1/4 in | |
| Connection Thread Standard | G | |
| Actuation Type | Solenoid/Spring | |
| Seal Material | Nitrile Rubber (NBR) | |
| Series | V05 | |
| Voltage | 240V ac | |
| Mount Type | Manifold, In-Line | |
| Number of Ports | 3 | |
| Body Material | Polyethylene Terephthalate | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Pilot Pressure | 0bar | |
| Maximum Pilot Pressure | 10bar | |
| Minimum Operating Temperature | -20°C | |
| Mount Pattern | DIN | |
| Valve Function | 3/2 | |
| Maximum Flow Rate | 150L/min | |
| Maximum Operating Temperature | 50°C | |
| Solenoid Power Consumption | 4.5W | |
| Hazardous Area Certification | No | |
| Length | 69mm | |
| Height | 55mm | |
| Standards/Approvals | No | |
| Width | 24mm | |
| Electrical Connection Type | 3-Pin Plug | |
| Number of Positions | 2 | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Pneumatic Solenoid Valve | ||
Port Type Push-in | ||
Port Size 1/4 in | ||
Connection Thread Standard G | ||
Actuation Type Solenoid/Spring | ||
Seal Material Nitrile Rubber (NBR) | ||
Series V05 | ||
Voltage 240V ac | ||
Mount Type Manifold, In-Line | ||
Number of Ports 3 | ||
Body Material Polyethylene Terephthalate | ||
Maximum Operating Pressure 10 bar | ||
Minimum Pilot Pressure 0bar | ||
Maximum Pilot Pressure 10bar | ||
Minimum Operating Temperature -20°C | ||
Mount Pattern DIN | ||
Valve Function 3/2 | ||
Maximum Flow Rate 150L/min | ||
Maximum Operating Temperature 50°C | ||
Solenoid Power Consumption 4.5W | ||
Hazardous Area Certification No | ||
Length 69mm | ||
Height 55mm | ||
Standards/Approvals No | ||
Width 24mm | ||
Electrical Connection Type 3-Pin Plug | ||
Number of Positions 2 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Solenoid Valve, PET Body, 0 Bar Minimum Operating Pressure - V05 Series - V05X486M-B639A
When you're in the business of managing flow, reach for this pneumatic solenoid valve from IMI Norgren. It's designed to efficiently control the rate at which gases and liquids move around a system. When a small electric current is applied to the fitted solenoid, it accurately opens the valve. With a maximum flow rate of 150L/min, this unit's suitable for use in demanding industrial and manufacturing applications. It'll slip in easily with your existing components as its inline manifold mounting style makes it quick to fit and easy to use alongside other valves.
Features & Benefits
• 3/2-port configuration (three ports and two positions) suitable for pressure release and vacuum applications
• -20°C to +50°C broad operating temperature range makes it suitable for use in harsh environments
• Solenoid voltage of 220 to 240V AC for easy compatibility with your processes
Applications
• Factory automation
• Energy production
• Automotive manufacture
How do I reset the valve after it's been activated?
Its solenoid/spring actuation means that it contains a spring that returns the valve's plunger to its neutral position. Because the valve is reset using the spring's stored kinetic force, it uses energy efficiently.
