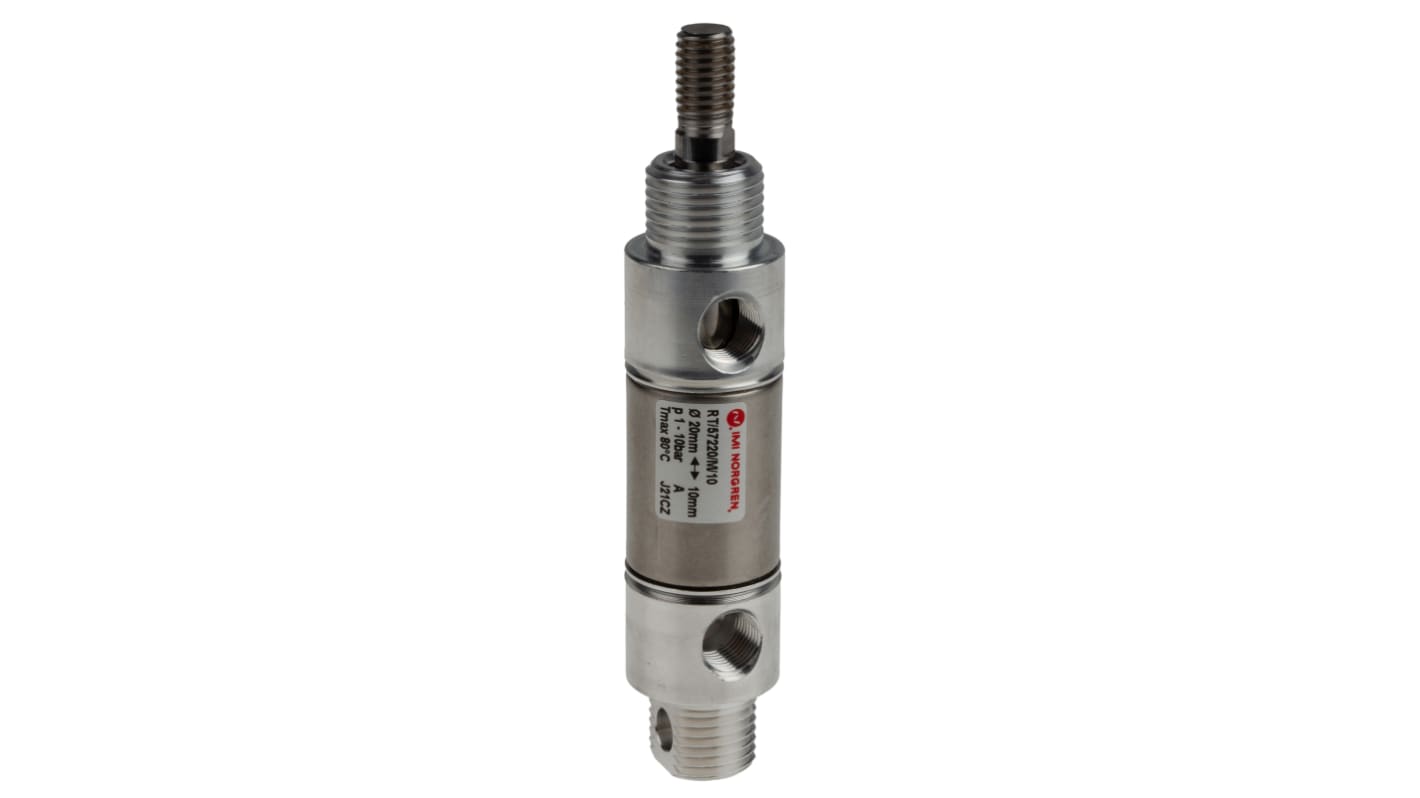

Norgren Pneumatic Roundline Cylinder - 20mm Bore, 10mm Stroke, RT/57200/M Series, Double Acting
- RS Stock No.:
- 212-9330
- Mfr. Part No.:
- RT/57220/M/10
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£62.98
(exc. VAT)
£75.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 15 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £62.98 |
| 5 - 9 | £60.46 |
| 10 + | £57.97 |
*price indicative
- RS Stock No.:
- 212-9330
- Mfr. Part No.:
- RT/57220/M/10
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Manufacturer Series | RT/57200/M | |
| Stroke | 10mm | |
| Action | Double | |
| Bore | 20mm | |
| Pneumatic Connection | Rc 1/8 | |
| Piston Rod Thread Gender | Male | |
| Diameter | 22mm | |
| Length | 99.5mm | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Operating Temperature | +80°C | |
| Test Weight | 0.08 kg | |
| Minimum Operating Temperature | -10°C | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Manufacturer Series RT/57200/M | ||
Stroke 10mm | ||
Action Double | ||
Bore 20mm | ||
Pneumatic Connection Rc 1/8 | ||
Piston Rod Thread Gender Male | ||
Diameter 22mm | ||
Length 99.5mm | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature +80°C | ||
Test Weight 0.08 kg | ||
Minimum Operating Temperature -10°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
IMI Norgren Pneumatic Roundline Cylinder, 20mm Bore, 10mm Stroke - RT/57200/M Series - RT/57220/M/10
Use this reliable pneumatic roundline cylinder from IMI Norgren for efficient performance in your domestic, commercial and industrial applications. The double-acting cylinder delivers controlled linear movements to operate processes by using two ports to alternate pressures. As it has a bore size of just 10mm, you can easily install this compact component in small spaces. A magnetic piston handles pressure ranges between 1 and 10 bar, making the part suitable for both low-pressure and high-pressure systems. It produces low friction and has a durable seal to ensure strength and longevity.
Features & Benefits
• Stainless steel piston rod withstands corrosion for use in heavy-duty environments like industrial kitchens
• Buffer cushioning controls piston movements to minimise vibrations and jolts on the part and linked equipment
• Nitrile-butadiene rubber (NBR) seals are resistant to abrasion and compression to prevent damage, which can compromise pressurised systems
• Buffer cushioning controls piston movements to minimise vibrations and jolts on the part and linked equipment
• Nitrile-butadiene rubber (NBR) seals are resistant to abrasion and compression to prevent damage, which can compromise pressurised systems
Applications
• Industrial presses and punches
• Automated conveyor systems
• Assembly and production lines
• Automated conveyor systems
• Assembly and production lines
What causes a cylinder rod to drift and cause misalignment?
Seal leaks, which cause pressure around the piston to equalize, are one of the factors that can lead to piston drift and misalignment. This can cause the piston to retract position, causing a sudden inability to handle a load mid-stroke.
