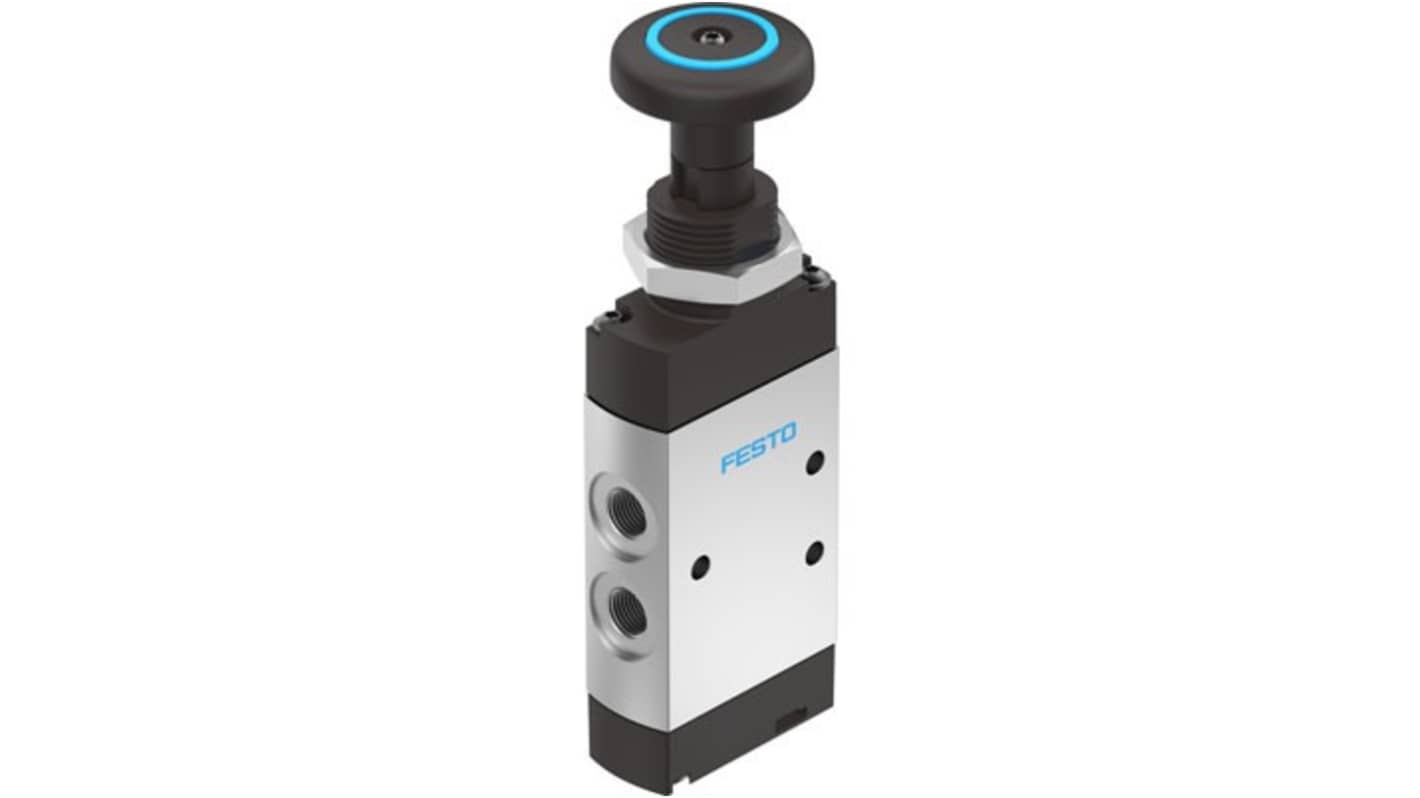

Festo Manual Pneumatic Manual Control Valve VHEF Series, NPT 1/8 in, 5299722

View this category

Subtotal (1 unit)*

£95.90

(exc. VAT)

£115.08

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£95.90

*price indicative

RS Stock No.:
651-792
Mfr. Part No.:
VHEF-P-B52-N18
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Pneumatic Manual Control Valve

Control Mechanism

Manual

Port Type

NPT 1/8

Port Size

1/8 in

Connection Thread Standard

NPT

Series

VHEF

Maximum Operating Pressure

1 Mpa

Body Material

Anodised Wrought Aluminium Alloy

Maximum Flow Rate

750L/min

Valve Function

Directional Control

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS

Width

20 mm

Number of Positions

2

Number of Ports

5

Model Number

5299722

COO (Country of Origin):
HU
The Festo Pushbutton valve is a sophisticated solution designed for reliable manual control in pneumatic systems. This bistable 5/2 valve is engineered to fulfil the demands of varied operating conditions, featuring robust construction with a width of only 20 mm. Capable of handling a standard nominal flow rate of 750 l/min, it effectively manages compressed air as per ISO 8573-1:2010 standards. With an operational pressure range from -0.095 MPa to 1 MPa and an ambient temperature tolerance of -10 °C to 60 °C, this valve is built for versatility and durability. Additional features include an optional exhaust air function with flow control and detecting manual override, ensuring precise control across a range of applications.

Designed for manual actuation offering straightforward control of pneumatic systems

Compact design with a construction width of just 20 mm for space saving installations

Compatible with multiple pneumatic connections for versatile installation options

Features a soft sealing principle enhancing reliability and reducing leakage

Equipped with an exhaust air function that includes flow control allowing for tailored operation

Suitable for a variety of mounting positions and configurations to fit specific application needs

Corrosion resistance class CRC 1 ensures durability in low corrosion stress environments

Complies with RoHS standards reflecting a commitment to environmentally friendly materials
