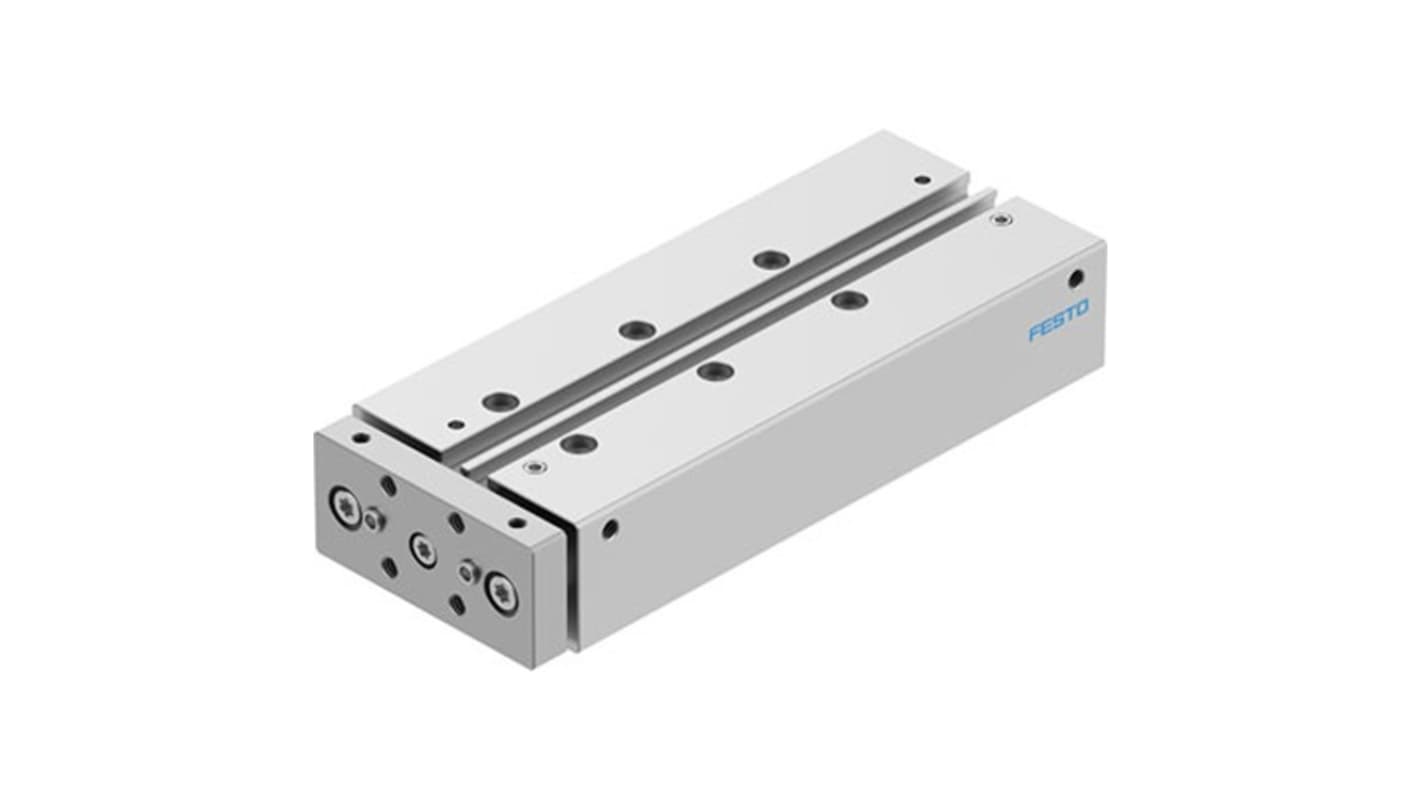

Festo Pneumatic Guided Cylinder - DFM-16-100-B-PPV-A-GF 16 mm Bore, DFM Series, 100 mm Double Acting Acting
- RS Stock No.:
- 342-296
- Mfr. Part No.:
- DFM-16-100-B-PPV-A-GF
- Brand:
- Festo
Subtotal (1 unit)*
£338.28
(exc. VAT)
£405.94
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £338.28 |
*price indicative
- RS Stock No.:
- 342-296
- Mfr. Part No.:
- DFM-16-100-B-PPV-A-GF
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 16mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Wrought Aluminium Alloy | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Piston Rod Thread Size | M5 | |
| Minimum Operating Temperature | -20°C | |
| Guide Type | Plain Bearing | |
| Piston Rod Thread Standard | Metric | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), VDMA24364-B1/B2-L | |
| Stroke Length | 100mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 16mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Wrought Aluminium Alloy | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Piston Rod Thread Size M5 | ||
Minimum Operating Temperature -20°C | ||
Guide Type Plain Bearing | ||
Piston Rod Thread Standard Metric | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), VDMA24364-B1/B2-L | ||
Stroke Length 100mm | ||
- COO (Country of Origin):
- DE
The Festo Pneumatic drive unit is expertly engineered for performance and reliability in a variety of industrial applications. Designed to deliver high efficiency, it features a double acting mechanism, ensuring precise operation. The adjustable pneumatic cushioning at both ends allows for smooth and controlled end of stroke impacts, significantly enhancing longevity. Its versatile plain bearing guide accommodates multiple mounting positions, making it suitable for diverse setups. Crafted from durable materials including wrought aluminium and high alloy stainless steel, this product is built to withstand moderate corrosion stress, thereby ensuring excellent durability even in demanding environments.
Double acting operation enhances efficiency
Adjustable pneumatic cushioning minimises impact wear
Plain bearing guide offers smooth and flexible motion
Robust construction allows for enduring performance
Proximity switch position detection boosts precision
Cleanroom class compliance supports sanitary applications
