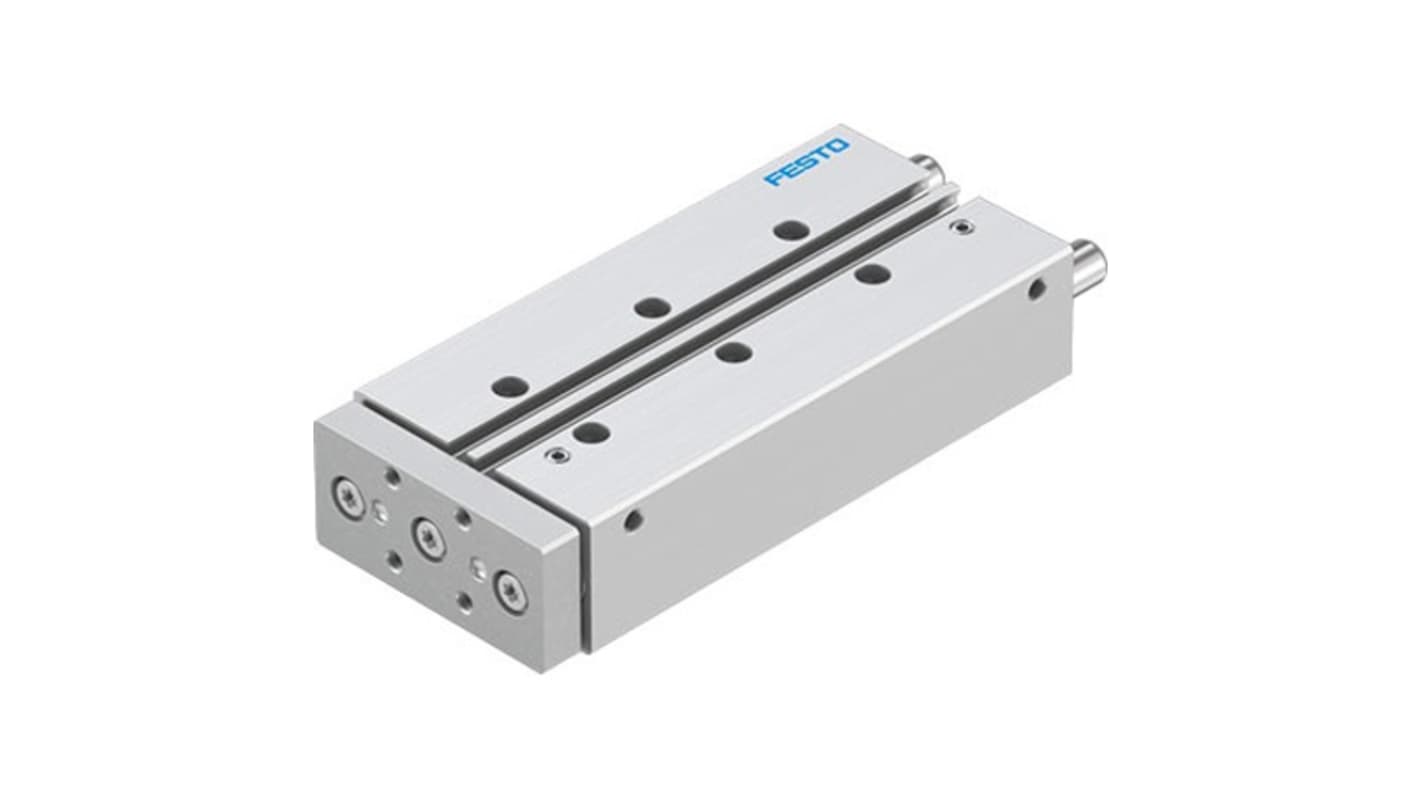

Festo Pneumatic Guided Cylinder - DFM-16-100-P-A-KF-F1A 16 mm Bore, DFM Series, 100 mm Double Acting Acting
- RS Stock No.:
- 343-788
- Mfr. Part No.:
- DFM-16-100-P-A-KF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£407.86
(exc. VAT)
£489.43
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £407.86 |
*price indicative
- RS Stock No.:
- 343-788
- Mfr. Part No.:
- DFM-16-100-P-A-KF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 16mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Elastic | |
| Body Material | Wrought Aluminium Alloy | |
| Guide Type | Ball Bearing | |
| Piston Rod Thread Size | M5 | |
| Piston Rod Thread Standard | Metric | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Weight | 982g | |
| Standards/Approvals | ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L, Class 7 According to ISO 14644-1 | |
| Stroke Length | 100mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 16mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Elastic | ||
Body Material Wrought Aluminium Alloy | ||
Guide Type Ball Bearing | ||
Piston Rod Thread Size M5 | ||
Piston Rod Thread Standard Metric | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Weight 982g | ||
Standards/Approvals ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L, Class 7 According to ISO 14644-1 | ||
Stroke Length 100mm | ||
The Festo Guided drive is engineered to deliver exceptional performance in a range of applications. With an impressive stroke length of 100 mm and a piston diameter of 16 mm, it is designed for precision and reliability. The unique yoke drive unit operates with elastic cushioning at both ends, ensuring smooth motion and control. Crafted from high-quality materials, it showcases robustness through its corrosion resistance class CRC 0 and compliance with RoHS standards. Ideal for environments requiring meticulous attention to detail, this drive allows for flexible mounting positions and is well-suited for cleanroom applications. The meticulous engineering allows for rapid speed adjustments, making it highly effective for a multitude of demanding processes.
Offers elastic cushioning for improved operational longevity
Equipped with a recirculating ball bearing guide for enhanced accuracy
Supports optional positioning detection via a proximity switch
Conducts lubricated operation as a standard requirement
Designed to maintain performance in a broad temperature range
Facilitates alternative connections for versatile installation options
