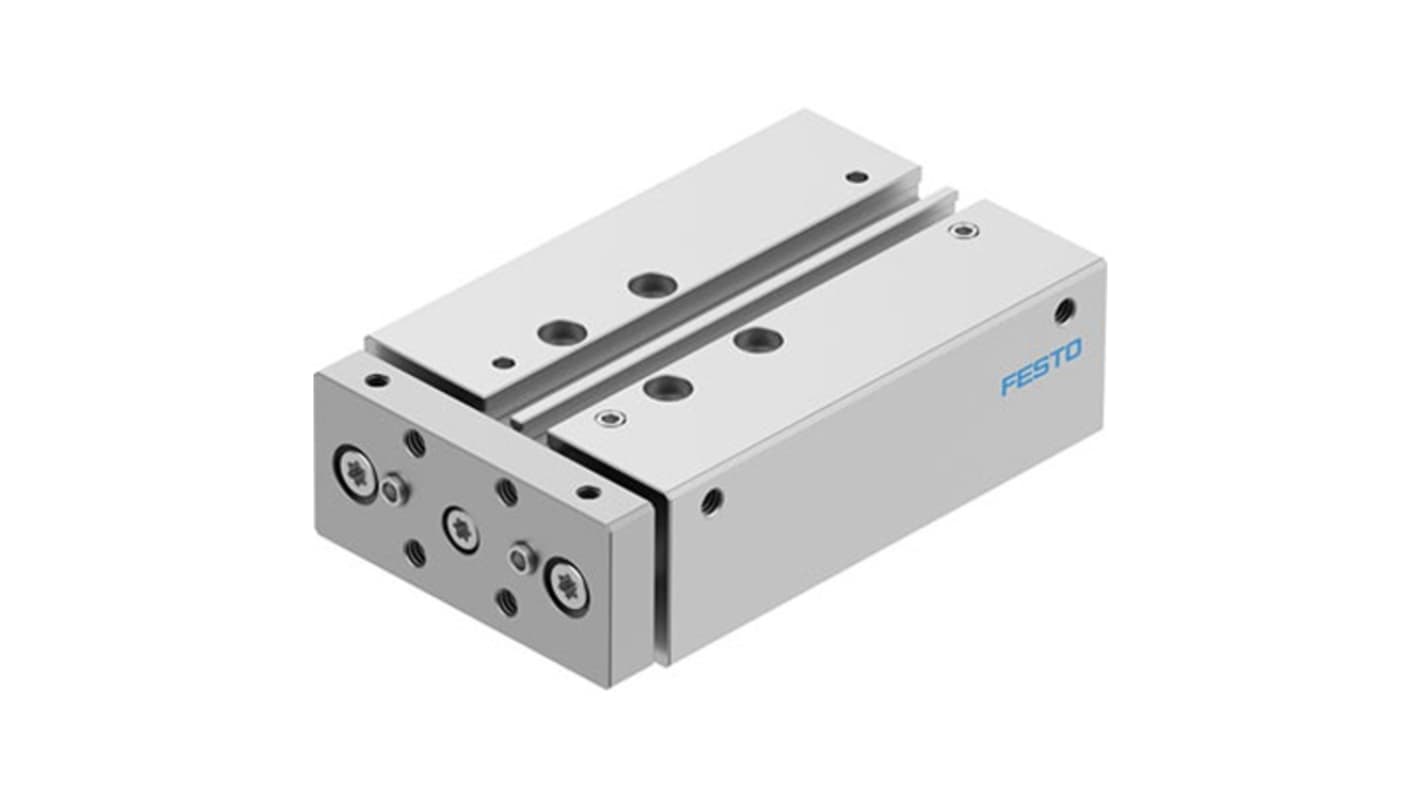

Festo Pneumatic Guided Cylinder - DFM-16-40-B-PPV-A-GF 16 mm Bore, DFM Series, 40 mm Double Acting Acting
- RS Stock No.:
- 343-573
- Mfr. Part No.:
- DFM-16-40-B-PPV-A-GF
- Brand:
- Festo
Subtotal (1 unit)*
£303.67
(exc. VAT)
£364.40
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £303.67 |
*price indicative
- RS Stock No.:
- 343-573
- Mfr. Part No.:
- DFM-16-40-B-PPV-A-GF
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 16mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | Wrought Aluminium Alloy | |
| Guide Type | Plain Bearing | |
| Piston Rod Thread Standard | Metric | |
| Piston Rod Thread Size | M5 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS, Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), VDMA24364-B1/B2-L | |
| Stroke Length | 40mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 16mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material Wrought Aluminium Alloy | ||
Guide Type Plain Bearing | ||
Piston Rod Thread Standard Metric | ||
Piston Rod Thread Size M5 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS, Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), VDMA24364-B1/B2-L | ||
Stroke Length 40mm | ||
- COO (Country of Origin):
- DE
The Festo Cylinder is designed for precise control in dynamic environments, seamlessly integrating advanced pneumatic technology. Built with a robust construction, this model delivers exceptional performance and reliability across a variety of applications. Its lightweight yet sturdy frame ensures maximum efficiency, providing both power and speed without compromising on operational functionality. Featuring an adjustable pneumatic cushioning system, the product allows for optimal performance during both the advance and return strokes, ensuring reduced wear and longevity.
Double-acting mode for efficient performance in both directions
Pneumatic cushioning system offers adjustable settings for customised operation
Corrosion resistance class CRC 2 enables use in moderate exposure environments
Compatible with proximity detection for enhanced operational precision
RoHS-compliant materials ensure environmental responsibility in usage
