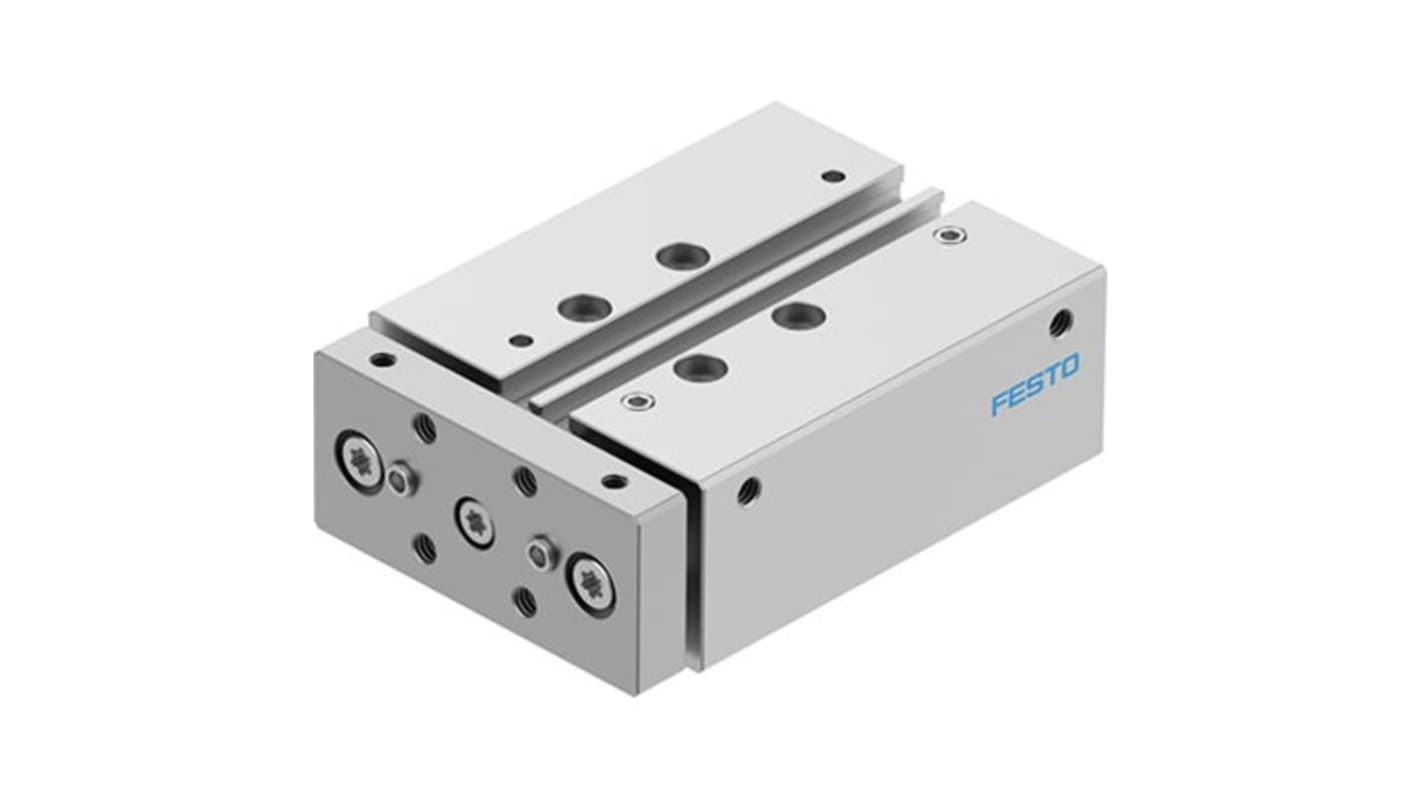

Festo Pneumatic Guided Cylinder - DFM-16-25-B-PPV-A-GF 16 mm Bore, DFM Series, 25 mm Double Acting Acting
- RS Stock No.:
- 342-300
- Mfr. Part No.:
- DFM-16-25-B-PPV-A-GF
- Brand:
- Festo
Subtotal (1 unit)*
£295.00
(exc. VAT)
£354.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £295.00 |
*price indicative
- RS Stock No.:
- 342-300
- Mfr. Part No.:
- DFM-16-25-B-PPV-A-GF
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 16mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | Wrought Aluminium Alloy | |
| Piston Rod Thread Size | M5 | |
| Piston Rod Thread Standard | Metric | |
| Minimum Operating Temperature | -20°C | |
| Guide Type | Plain Bearing | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | VDMA24364-B1/B2-L, RoHS, ISO 8573-1:2010 (7:4:4), Class 7 According to ISO 14644-1 | |
| Stroke Length | 25mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 16mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material Wrought Aluminium Alloy | ||
Piston Rod Thread Size M5 | ||
Piston Rod Thread Standard Metric | ||
Minimum Operating Temperature -20°C | ||
Guide Type Plain Bearing | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals VDMA24364-B1/B2-L, RoHS, ISO 8573-1:2010 (7:4:4), Class 7 According to ISO 14644-1 | ||
Stroke Length 25mm | ||
- COO (Country of Origin):
- DE
The Festo Guided Drive designed to deliver superior performance and reliability. Aimed at dynamic applications, this unit is distinguished by its double acting operation and optimal cushioning, making it ideal for precise movement control in various environments. The robust construction features a combination of wrought aluminium alloy and high alloy stainless steel, ensuring durability and compliance with stringent industry standards. With adjustable pneumatic cushioning at both ends, this product not only enhances efficiency but also contributes to reduced wear, making it an invaluable component where precision and functionality are paramount.
Utilises a plain bearing guide for smooth linear motion
Incorporates adjustable pneumatic cushioning for tailored application needs
Designed for optional mounting positions enhancing installation flexibility
Features a corrosion resistance class of CRC 2 suitable for moderate exposure
Operates seamlessly within a wide temperature range which ensuring reliability in varied conditions
Complies with RoHS directives affirming environmental responsibility
