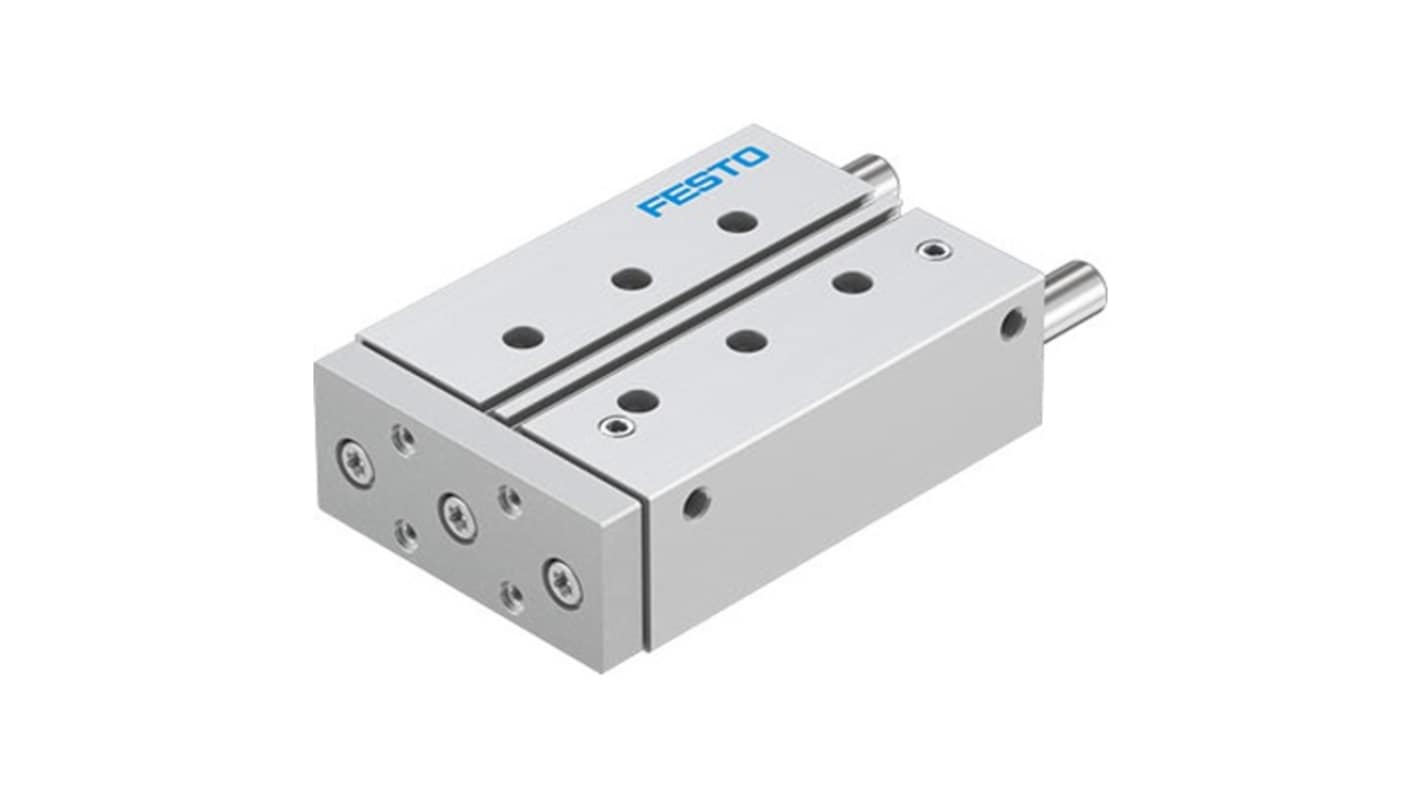

Festo Pneumatic Guided Cylinder - DFM-32-100-P-A-KF-F1A 32 mm Bore, DFM Series, 100 mm Double Acting Acting
- RS Stock No.:
- 341-989
- Mfr. Part No.:
- DFM-32-100-P-A-KF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£561.18
(exc. VAT)
£673.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £561.18 |
*price indicative
- RS Stock No.:
- 341-989
- Mfr. Part No.:
- DFM-32-100-P-A-KF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 32mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Elastic | |
| Body Material | Wrought Aluminium Alloy | |
| Piston Rod Thread Standard | BSPP | |
| Piston Rod Thread Size | 1/8 in G | |
| Guide Type | Ball Bearing | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Weight | 2781g | |
| Standards/Approvals | RoHS, Class 7 According to ISO 14644-1, VDMA24364-B1/B2-L, ISO 8573-1:2010 (7:4:4) | |
| Stroke Length | 100mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 32mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Elastic | ||
Body Material Wrought Aluminium Alloy | ||
Piston Rod Thread Standard BSPP | ||
Piston Rod Thread Size 1/8 in G | ||
Guide Type Ball Bearing | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Weight 2781g | ||
Standards/Approvals RoHS, Class 7 According to ISO 14644-1, VDMA24364-B1/B2-L, ISO 8573-1:2010 (7:4:4) | ||
Stroke Length 100mm | ||
The Festo Guided drive system is engineered for precision and reliability, ensuring optimal operation in various applications. With a robust double-acting operation and a stroke length of 100 mm, it accommodates diverse needs, making it ideal for industries that require adaptability and efficiency. The incorporation of elastic cushioning rings enhances protection and ensures minimal impact, contributing to fewer maintenance needs. Its recirculating ball bearing guide supports smooth movement and reliability, ensuring sustained performance over time. Designed to thrive within a broad temperature range, it boasts excellent corrosion resistance, making it perfect for challenging environments. Discover enhanced productivity with this reliable unit, tailored to meet stringent industrial standards and operational demands.
Double acting mode for efficient operation
Elastic cushioning to reduce impact stress
Recirculating ball bearing guide for smooth movement
Corrosion resistant construction enhances durability
Complies with RoHS for environmentally conscious use
Includes multiple mounting positions for versatile installation
