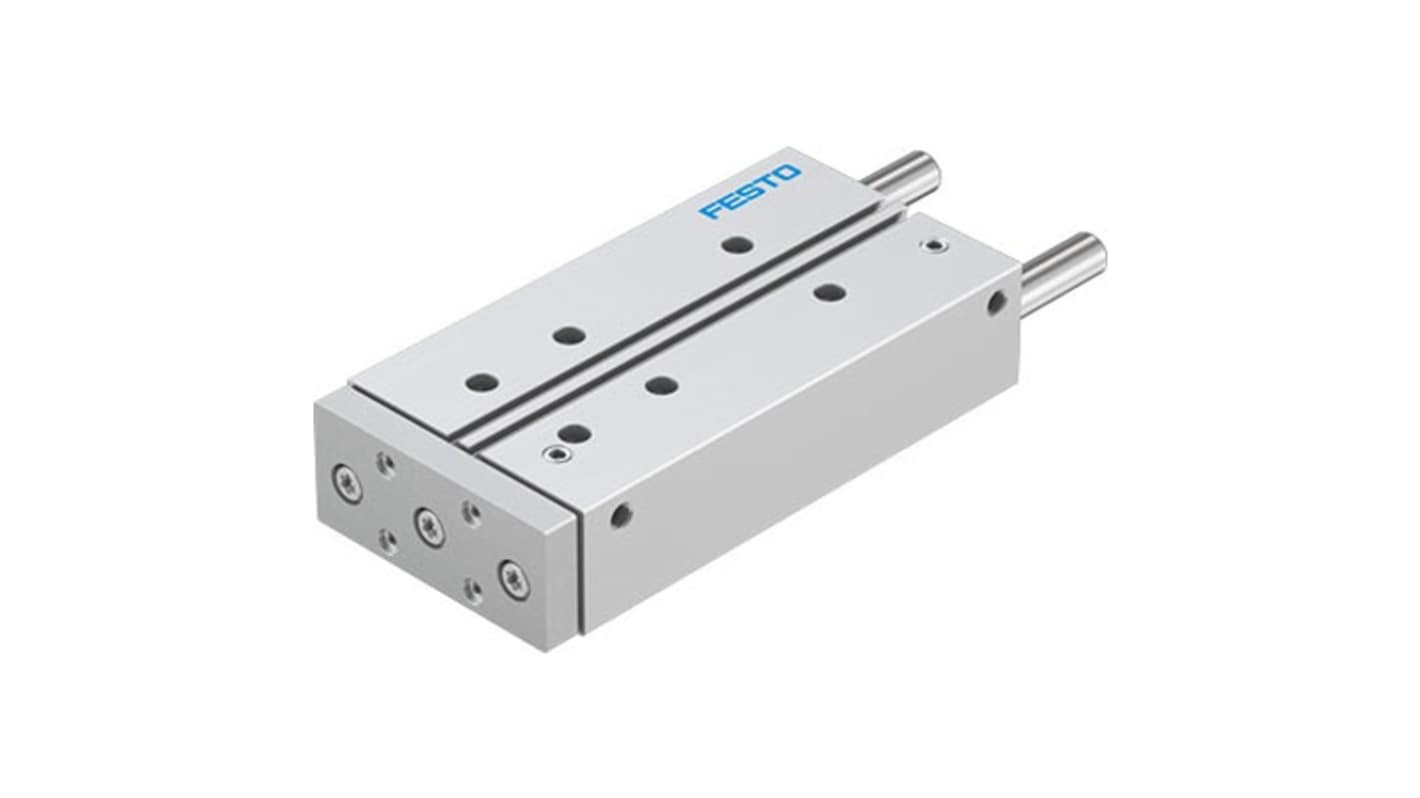

Festo Pneumatic Guided Cylinder - 8118899 32mm Bore, DFM Series, 160 mm Double Acting Acting
- RS Stock No.:
- 344-447
- Mfr. Part No.:
- DFM-32-160-P-A-KF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£676.70
(exc. VAT)
£812.04
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £676.70 |
*price indicative
- RS Stock No.:
- 344-447
- Mfr. Part No.:
- DFM-32-160-P-A-KF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Diameter | 32mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Elastic | |
| Body Material | Wrought Aluminium Alloy | |
| Minimum Operating Temperature | -5°C | |
| Piston Rod Thread Size | 1/8 in G | |
| Piston Rod Thread Standard | BSPP | |
| Guide Type | Ball Bearing | |
| Maximum Operating Temperature | 60°C | |
| Weight | 3.68kg | |
| Standards/Approvals | ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L, Class 7 According to ISO 14644-1 | |
| Stroke Length | 160mm | |
| Model Number | 8118899 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Diameter 32mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Elastic | ||
Body Material Wrought Aluminium Alloy | ||
Minimum Operating Temperature -5°C | ||
Piston Rod Thread Size 1/8 in G | ||
Piston Rod Thread Standard BSPP | ||
Guide Type Ball Bearing | ||
Maximum Operating Temperature 60°C | ||
Weight 3.68kg | ||
Standards/Approvals ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L, Class 7 According to ISO 14644-1 | ||
Stroke Length 160mm | ||
Model Number 8118899 | ||
- COO (Country of Origin):
- CN
The Festo advanced guided drive, part of the DFM series, is engineered to enhance precision in a range of mechanical applications. It combines a robust design with intelligent features to ensure optimal performance. The device maximizes efficiency with its dual-acting operation and elastic cushioning, allowing for smooth transitions and reduced wear. Operating in various ambient conditions, this component proves to be a reliable choice in production environments, enhancing productivity while adhering to strict cleanliness standards.
Proximity switch position detection for accurate automation
Designed for optional mounting to suit various setups
Built with high-alloy stainless steel piston rod for extended durability
Recirculating ball bearing guide ensures enhanced motion control
Accommodates a wide range of operating pressures for versatile use
Constructed from RoHS-compliant materials promoting safety and environmental care
Elastic cushioning at both ends minimizes impact during operation
