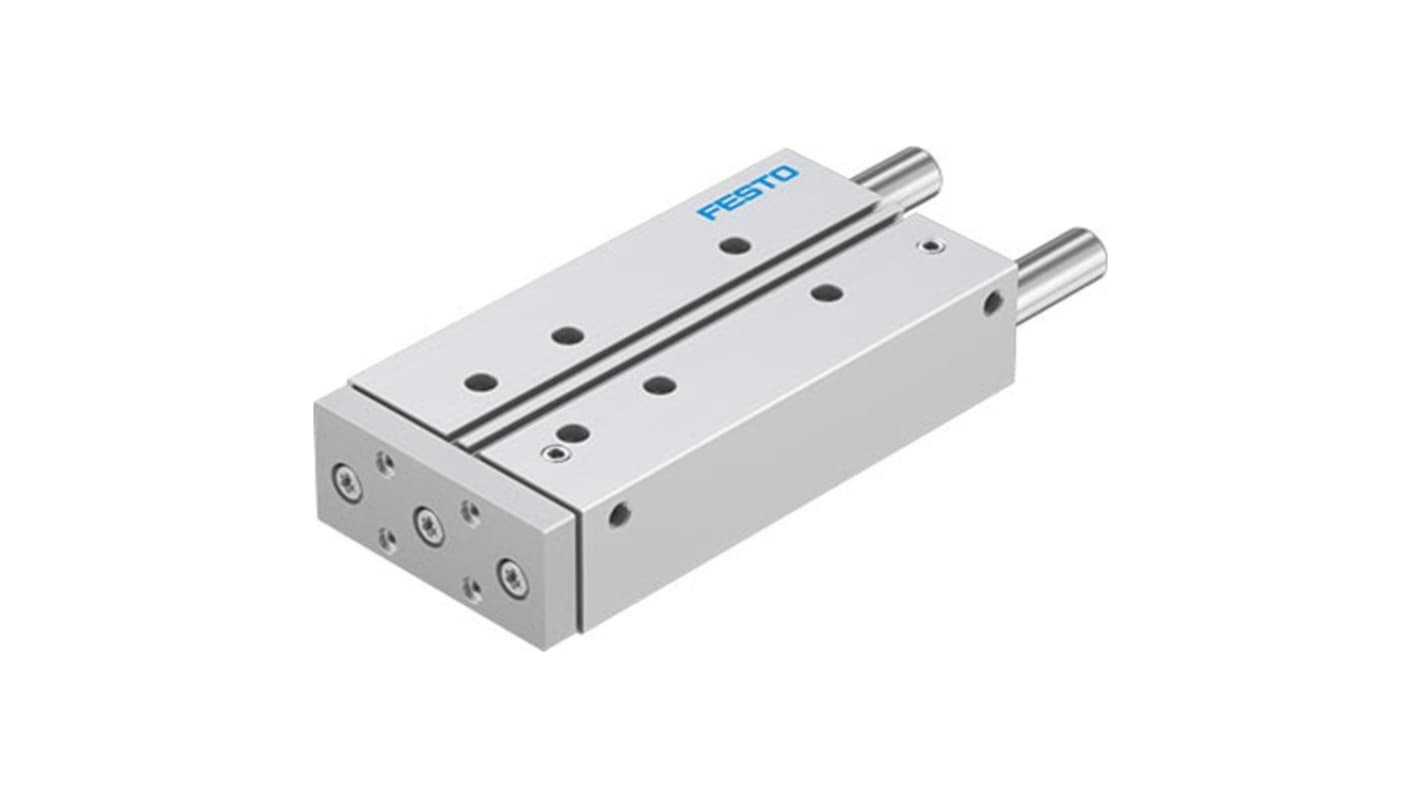

Festo Pneumatic Guided Cylinder - DFM-32-160-P-A-GF-F1A 32 mm Bore, DFM Series, 160 mm Double Acting Acting
- RS Stock No.:
- 351-498
- Mfr. Part No.:
- DFM-32-160-P-A-GF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£515.82
(exc. VAT)
£618.98
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £515.82 |
*price indicative
- RS Stock No.:
- 351-498
- Mfr. Part No.:
- DFM-32-160-P-A-GF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 32mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Elastic | |
| Body Material | Wrought Aluminium Alloy | |
| Piston Rod Thread Size | 1/8 in G | |
| Guide Type | Plain Bearing | |
| Piston Rod Thread Standard | BSPP | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | VDMA24364-B1/B2-L, RoHS, ISO 8573-1:2010 (7:4:4), Class 7 According to ISO 14644-1 | |
| Weight | 4149g | |
| Stroke Length | 160mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 32mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Elastic | ||
Body Material Wrought Aluminium Alloy | ||
Piston Rod Thread Size 1/8 in G | ||
Guide Type Plain Bearing | ||
Piston Rod Thread Standard BSPP | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals VDMA24364-B1/B2-L, RoHS, ISO 8573-1:2010 (7:4:4), Class 7 According to ISO 14644-1 | ||
Weight 4149g | ||
Stroke Length 160mm | ||
- COO (Country of Origin):
- CN
The Festo Guided Drive is designed for precision and reliability in demanding industrial environments. Engineered to operate seamlessly between -20 °C and 80 °C, it features an impressive stroke of 160 mm and a piston diameter of 32 mm. The yoke-driven mechanism ensures maximum efficiency while reducing wear and tear, thanks to its elastic cushioning rings at both ends. With a robust construction from wrought aluminium alloy and high-alloy stainless steel components, this product ensures durability and compliance with RoHS standards. Its plain-bearing guide and double-acting mode enhance positioning accuracy, making it ideal for automation systems requiring consistent performance and minimal downtime.
Efficient cushioning for reduced impact and extended lifespan
Flexible mounting position caters to diverse installation needs
Clean room class suitability ensures compliance for sensitive applications
Corrosion resistance class CRC 0 guarantees reliable operation in challenging environments
Proximity switch integration allows for effective position detection
Lightweight design facilitates easy installation and handling
