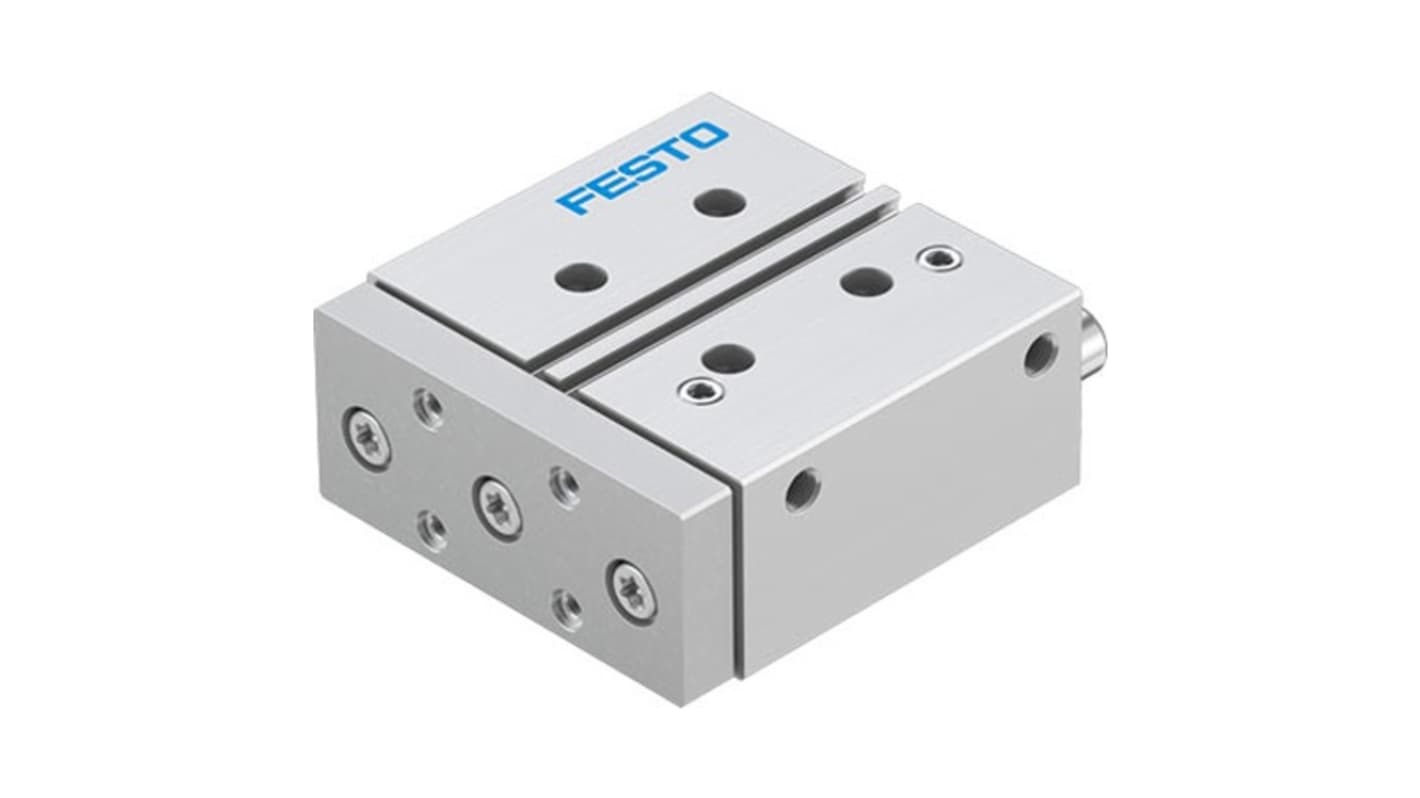

Festo Pneumatic Guided Cylinder - DFM-32-50-P-A-KF-F1A 32 mm Bore, DFM Series, 50 mm Double Acting Acting
- RS Stock No.:
- 341-999
- Mfr. Part No.:
- DFM-32-50-P-A-KF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£464.89
(exc. VAT)
£557.87
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £464.89 |
*price indicative
- RS Stock No.:
- 341-999
- Mfr. Part No.:
- DFM-32-50-P-A-KF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 32mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Wrought Aluminium Alloy | |
| Cushioning Type | Elastic | |
| Piston Rod Thread Standard | BSPP | |
| Guide Type | Ball Bearing | |
| Piston Rod Thread Size | 1/8 in G | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Weight | 2038g | |
| Standards/Approvals | Class 7 According to ISO 14644-1, RoHS, VDMA24364-B1/B2-L, ISO 8573-1:2010 (7:4:4) | |
| Stroke Length | 50mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 32mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Wrought Aluminium Alloy | ||
Cushioning Type Elastic | ||
Piston Rod Thread Standard BSPP | ||
Guide Type Ball Bearing | ||
Piston Rod Thread Size 1/8 in G | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Weight 2038g | ||
Standards/Approvals Class 7 According to ISO 14644-1, RoHS, VDMA24364-B1/B2-L, ISO 8573-1:2010 (7:4:4) | ||
Stroke Length 50mm | ||
- COO (Country of Origin):
- CN
The Festo Guided drive is engineered for precision motion control in various industrial applications. With its robust construction and advanced features, this drive ensures reliable operation under a range of conditions, making it ideal for automation tasks. Designed to accommodate specific mounting positions and optimised for performance, it integrates easily into existing systems. Its pneumatic action, complemented by an elastic cushioning system, guarantees smooth operation and durable service life. The device is also compliant with stringent material regulations, making it suitable for sensitive environments such as cleanrooms and precision manufacturing. Overall, this guided drive stands as a testament to engineering excellence in motion solutions.
Double acting operation enables high efficiency performance
Elastic cushioning reduces impact, enhancing durability
Compatible with proximity switch for precise position detection
Recirculating ball bearing guide assures low friction and longevity
Lubricated operation is possible for optimal functionality
Corrosion resistance class CRC 0 ensures minimal maintenance needs
Lightweight design allows for easy integration into various systems
