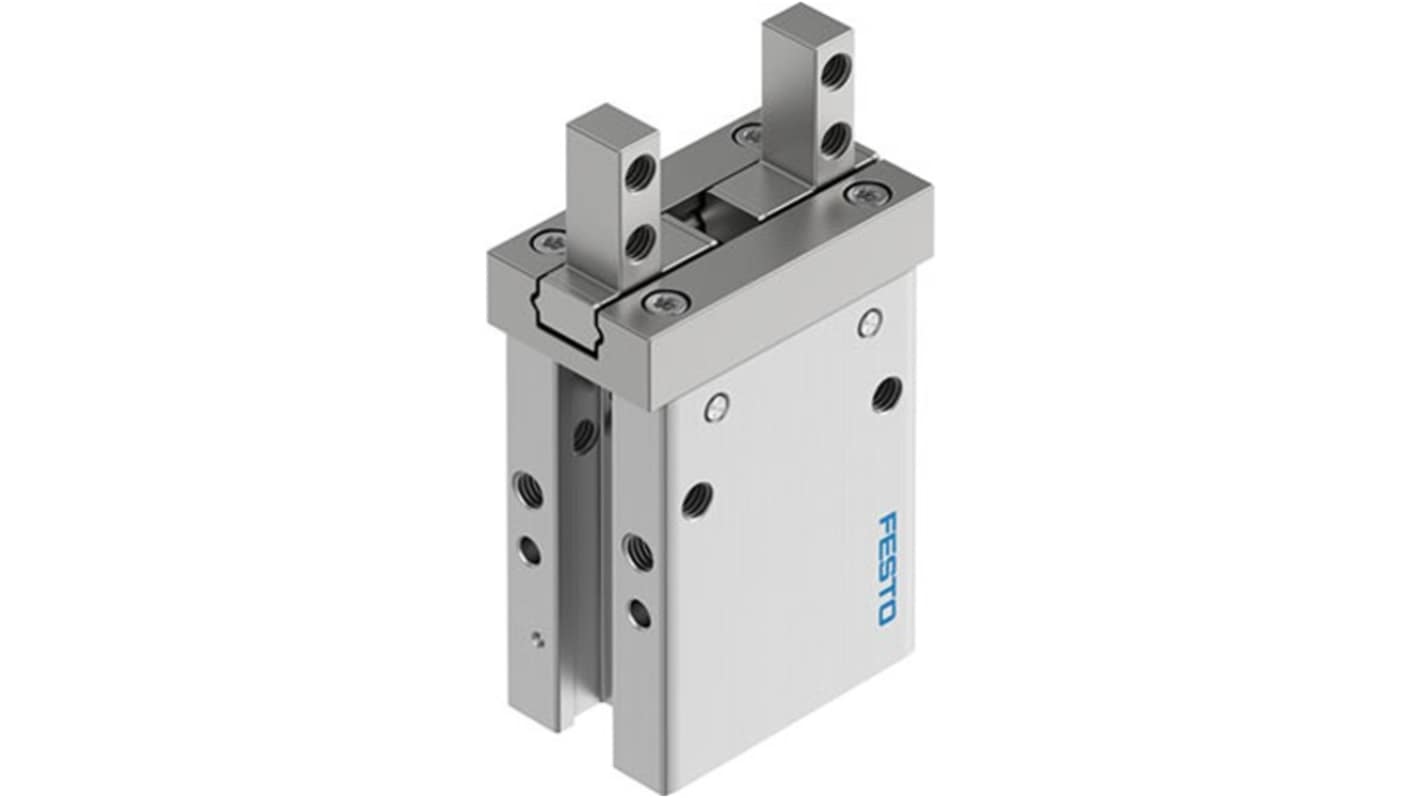

Festo 2 Finger Double Acting Action Pneumatic Gripper, DHPC-10-A-B-1, Parallel Gripping Type
- RS Stock No.:
- 344-019
- Mfr. Part No.:
- DHPC-10-A-B-1
- Brand:
- Festo
Subtotal (1 unit)*
£233.54
(exc. VAT)
£280.25
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £233.54 |
*price indicative
- RS Stock No.:
- 344-019
- Mfr. Part No.:
- DHPC-10-A-B-1
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Number of Fingers | 2 | |
| Product Type | Pneumatic Gripper | |
| Gripping Type | Parallel | |
| Stroke Length | 2mm | |
| Action Type | Double Acting | |
| Series | DHPC-10-A-B-1 | |
| Maximum Operating Pressure | 8 bar | |
| Port Size | M3 | |
| Weight | 49g | |
| Minimum Operating Temperature | -10°C | |
| Gripping Force - External | 51.2N | |
| Gripping Force - Internal | 43N | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS, ISO 8573-1:2010 (7:4:4), VDMA24364-B2-L | |
| Maximum Operating Frequency | 3Hz | |
| Model Number | 8116757 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Number of Fingers 2 | ||
Product Type Pneumatic Gripper | ||
Gripping Type Parallel | ||
Stroke Length 2mm | ||
Action Type Double Acting | ||
Series DHPC-10-A-B-1 | ||
Maximum Operating Pressure 8 bar | ||
Port Size M3 | ||
Weight 49g | ||
Minimum Operating Temperature -10°C | ||
Gripping Force - External 51.2N | ||
Gripping Force - Internal 43N | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS, ISO 8573-1:2010 (7:4:4), VDMA24364-B2-L | ||
Maximum Operating Frequency 3Hz | ||
Model Number 8116757 | ||
- COO (Country of Origin):
- CN
The Festo Parallel Gripper offers advanced functionality tailored for precision automation tasks. Engineered to operate seamlessly under a variety of conditions, this component features double acting pneumatic drive mechanisms that ensure reliable and efficient gripping performance. Constructed from high quality, RoHS compliant materials, the gripper provides a robust solution for delicate and heavy duty applications alike. With a diverse range of mounting options, it offers incredible versatility and adaptability, while the lightweight design minimises strain on machinery. The ambient temperature tolerance from 10 °C to 60 °C makes it suitable for various environments. Overall, this gripper represents a fine balance between precision engineering and practical usability.
Optimised for double acting operation which ensuring swift and reliable gripping
Constructed from anodised aluminium and high alloy stainless steel for durability
Low backlash and precision grip help maintain accuracy during operations
Versatile mounting options including direct and through hole for easy installation
Suitable for lubricated operation enhancing performance longevity
Configured for minimal opening and closing times to improve cycle efficiency
Corrosion resistance class CRC 0 ensures longevity in challenging environments
