RS PRO Reducer, Push In 8 mm to 6 mm, Push-in Connection Style
- RS Stock No.:
- 528-493
- Brand:
- RS PRO
Subtotal (1 bag of 5 units)*
£8.51
(exc. VAT)
£10.21
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 + | £8.51 | £1.702 |
*price indicative
- RS Stock No.:
- 528-493
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Connector A | Push In 8 mm | |
Connector B | 6 mm | |
Pneumatic Fitting Type | Reducer | |
Connection Style | Push-in | |
Number of Inlet Ports | 1 | |
Number of Outlet Ports | 1 | |
Mounting Type | Inline | |
Maximum Operating Pressure | 10bar | |
Body Material | Acetal Copolymer | |
Maximum Operating Temperature | 65°C | |
Minimum Operating Temperature | 1°C | |
Food Grade | Yes | |
Angle | Straight | |
Standards Met | ACS, DM174/2004, EC1935/2004 , ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Connector A Push In 8 mm | ||
Connector B 6 mm | ||
Pneumatic Fitting Type Reducer | ||
Connection Style Push-in | ||
Number of Inlet Ports 1 | ||
Number of Outlet Ports 1 | ||
Mounting Type Inline | ||
Maximum Operating Pressure 10bar | ||
Body Material Acetal Copolymer | ||
Maximum Operating Temperature 65°C | ||
Minimum Operating Temperature 1°C | ||
Food Grade Yes | ||
Angle Straight | ||
Standards Met ACS, DM174/2004, EC1935/2004 , ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS | ||
- COO (Country of Origin):
- KR

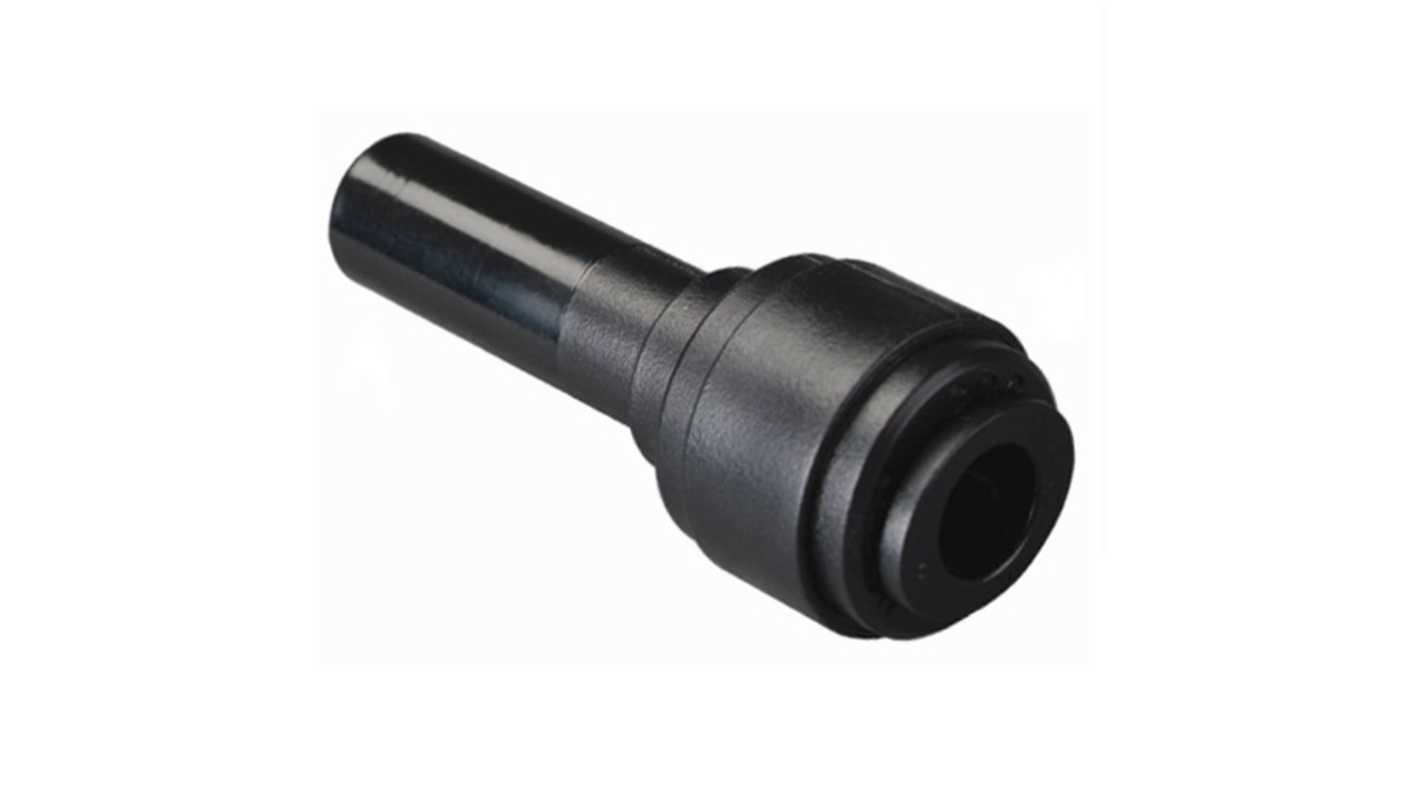

RS PRO Plug-In Tube Reducer, 8 mm to 6 mm, Pneumatic Fitting
The RS PRO Plug-In Tube Reducer is a versatile pneumatic fitting designed to connect tubes of different sizes efficiently. It features an 8 mm inlet port and a 6 mm outlet port, making it ideal for applications requiring a reduction in tube diameter. This fitting is particularly beneficial in systems where quick and reliable connections are essential.
Features and Benefits
Plug-In Tube Reducers Feature an Insert Stem with an Opposing Push-to-Connect Port of a Different Size: Allows for easy connection between varying tube sizes, enhancing system flexibility
Fluidfit Products are Designed for Water, Food, and Air Contact: Can also be used with selected gases, vacuum, and liquids, providing versatility in application
Easy Actions Allow the Tube to Be Connected and Released Quickly: Saves time and reduces expenses by simplifying installation and maintenance
Fluidfit Products are Made From NSF and ACS Approved Non-Toxic Material: Ensures safety and compliance with international standards
Fluidfit Products are Designed for Water, Food, and Air Contact: Can also be used with selected gases, vacuum, and liquids, providing versatility in application
Easy Actions Allow the Tube to Be Connected and Released Quickly: Saves time and reduces expenses by simplifying installation and maintenance
Fluidfit Products are Made From NSF and ACS Approved Non-Toxic Material: Ensures safety and compliance with international standards
Applications
Water
Beverage
Vacuum
Compressed Air
Gases and Liquids Suitable with Construction Material
Beverage
Vacuum
Compressed Air
Gases and Liquids Suitable with Construction Material
Additional Information
Meets key standards such as ACS, DM174/2004, EC1935/2004, ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, and WRAS, ensuring compliance across multiple markets and industries.
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
