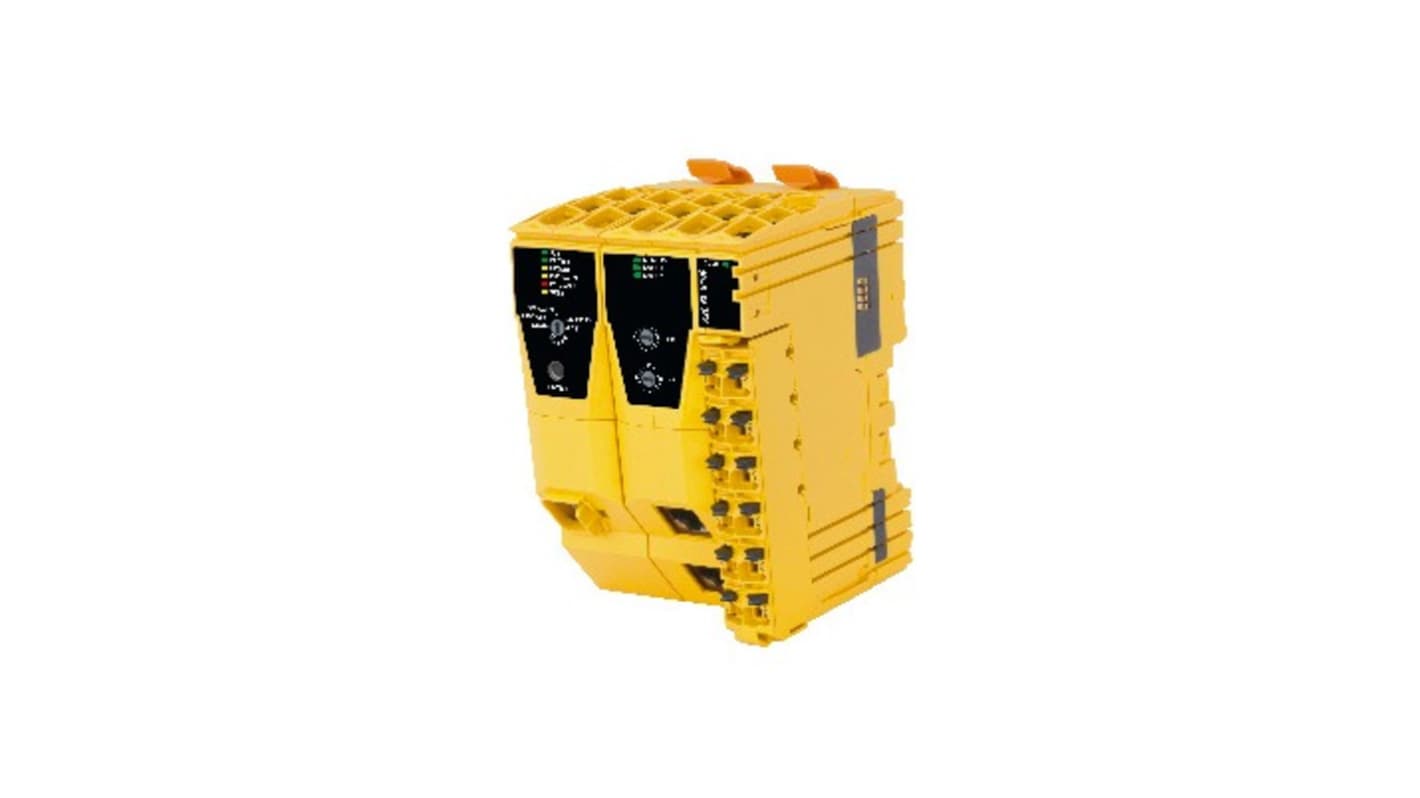

B&R X20 Series Safety Module for Use with X20 Series
- RS Stock No.:
- 590-793
- Mfr. Part No.:
- X20SL8100
- Brand:
- B&R
Subtotal (1 unit)*
£527.14
(exc. VAT)
£632.57
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £527.14 |
*price indicative
- RS Stock No.:
- 590-793
- Mfr. Part No.:
- X20SL8100
- Brand:
- B&R
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | B&R | |
| Product Type | Safety Module | |
| Accessory Type | Safety Module | |
| Series | X20 | |
| For Use With | X20 Series | |
| IP Rating | IP20 | |
| Hazardous Area Certification | T5, II 3G Ex nA nC IIA T5 Gc, Groups ABCD, Division 2, cCSAus, ATEX | |
| Standards/Approvals | UL cULus E115267 Industrial control equipment, ANSI UL 1998:2013, Cat. 4/PL e, CE, DNV GL, EAC, EN 50156-1:2004, EN 62061:2013, EN ISO 13849-1:2015, FTZÚ 09 ATEX 0083X, IEC 61508:2010, IEC 61511:2004, SIL 3 | |
| Supply Voltage | 24 V | |
| Select all | ||
|---|---|---|
Brand B&R | ||
Product Type Safety Module | ||
Accessory Type Safety Module | ||
Series X20 | ||
For Use With X20 Series | ||
IP Rating IP20 | ||
Hazardous Area Certification T5, II 3G Ex nA nC IIA T5 Gc, Groups ABCD, Division 2, cCSAus, ATEX | ||
Standards/Approvals UL cULus E115267 Industrial control equipment, ANSI UL 1998:2013, Cat. 4/PL e, CE, DNV GL, EAC, EN 50156-1:2004, EN 62061:2013, EN ISO 13849-1:2015, FTZÚ 09 ATEX 0083X, IEC 61508:2010, IEC 61511:2004, SIL 3 | ||
Supply Voltage 24 V | ||
- COO (Country of Origin):
- AT
The B&R Industrial Automation GmbH Module is equipped with SafeLOGIC functionality that allows it to safely execute applications designed in SafeDESIGNER. The module can be used in safety-related applications up to PL e or SIL 3. In addition, the module coordinates the safety-related communication of all modules involved in the application. In this context, the module also monitors the configuration of these modules and carries out autonomous parameter downloads to the modules whenever necessary.
openSAFETY manager for up to 100 SafeNODEs
Flexibly programmable using Automation Studio / SafeDESIGNER
Innovative management of safe machine options (SafeOPTION)
Parameter and configuration management
