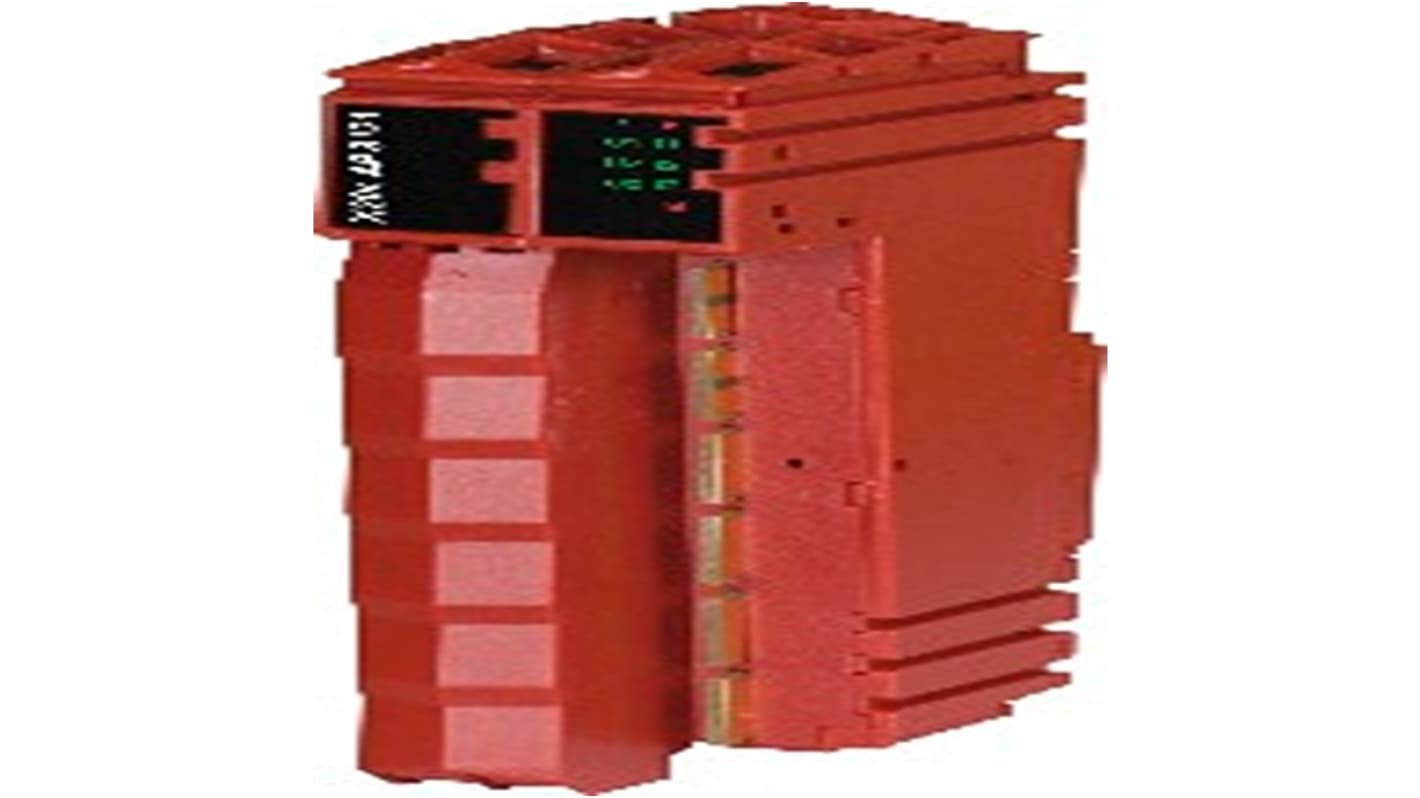

B&R X20 Series Analog Input Module for Use with PLCs
- RS Stock No.:
- 589-185
- Mfr. Part No.:
- X20CAP3121
- Brand:
- B&R
Subtotal (1 unit)*
£371.59
(exc. VAT)
£445.91
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £371.59 |
*price indicative
- RS Stock No.:
- 589-185
- Mfr. Part No.:
- X20CAP3121
- Brand:
- B&R
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | B&R | |
| Accessory Type | Energy Meter | |
| Product Type | Analog Input Module | |
| Series | X20 | |
| For Use With | PLCs | |
| IP Rating | IP20 | |
| Standards/Approvals | CE, ABS, BMW GS 95011-4, DNV, EAC, EN 60068-2-60, EN 60529, KR, LR ENV1, UKCA, UL cULus E115267 Industrial control equipment | |
| Hazardous Area Certification | ATEX | |
| Select all | ||
|---|---|---|
Brand B&R | ||
Accessory Type Energy Meter | ||
Product Type Analog Input Module | ||
Series X20 | ||
For Use With PLCs | ||
IP Rating IP20 | ||
Standards/Approvals CE, ABS, BMW GS 95011-4, DNV, EAC, EN 60068-2-60, EN 60529, KR, LR ENV1, UKCA, UL cULus E115267 Industrial control equipment | ||
Hazardous Area Certification ATEX | ||
- COO (Country of Origin):
- AT
The B&R Industrial Automation GmbH Analog Input modules measure active, reactive and apparent power individually for each of the 3 phases as well as all of them collectively. The power consumption of each phase is also recorded individually and in total. In addition, the modules provide the RMS values for voltage and current on the 3 phases. When measuring the current, the value of the current through the neutral conductor can also be detected and monitored. Measurement of the mains frequency and the phase angle of the 3 phases (current and voltage) complete the power measurement data.
Measures individual phases and calculates cumulative values
Optional measurement of current through the neutral conductor
Calculates frequency and harmonics with high precision
NetTime timestamp: Moment when measured value groups are read
