Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

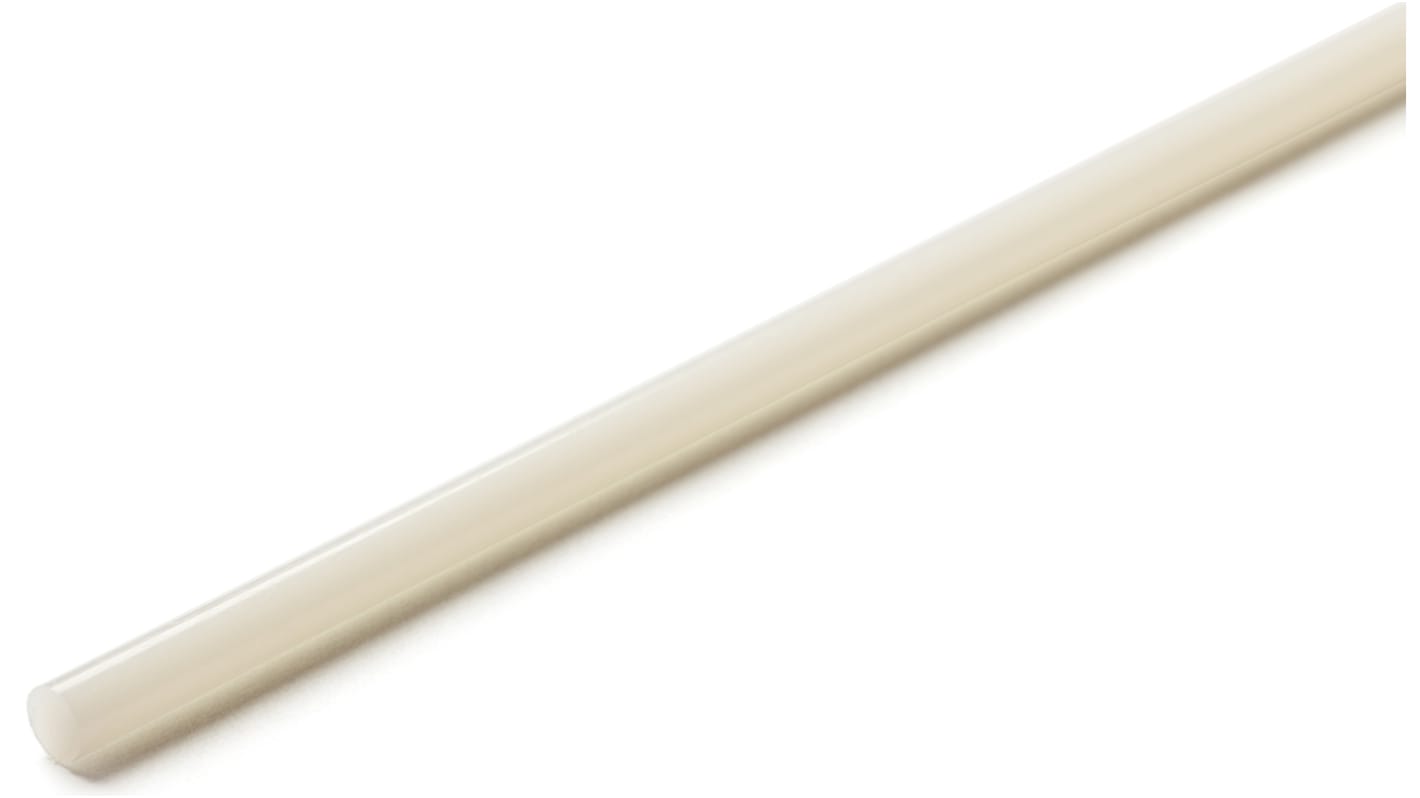

RS PRO White Nylon Rod, 1 m x 45 mm Diameter
This RS PRO white nylon rod can be used to make durable and lightweight technical components. It's highly machinable and has a length of one metre, allowing you to make a large number of small components.
The rod has a UL (Underwriters' Laboratories) HB (Horizontal Burning) grade, indicating that it will burn slowly when exposed to flames. The nylon 66 material provides a high level of impact strength and is chemically resistant, ensuring consistent performance over a long period of time.
As this product has a high melting point, it can safely be used at high temperatures of up to +170°C. You'll commonly find it used for gears, wheels and bearings in aircraft equipment, as well as packaging and food processing equipment.
The rod has a UL (Underwriters' Laboratories) HB (Horizontal Burning) grade, indicating that it will burn slowly when exposed to flames. The nylon 66 material provides a high level of impact strength and is chemically resistant, ensuring consistent performance over a long period of time.
As this product has a high melting point, it can safely be used at high temperatures of up to +170°C. You'll commonly find it used for gears, wheels and bearings in aircraft equipment, as well as packaging and food processing equipment.
Features and Benefits
- White colour
- Density of 1.14 g/cm³
- Elongation of 150%
- UL HB (Underwriters' Laboratories Horizontal Burning) flammability rating
- Rod form
- Hardness of 170 ball indentation
- Length of 1 m
- Nylon material
- Maximum operating temperature of +170°C
- Rod diameter of 45 mm
- Tensile strength of 60 megapascals (MPa) wet, 80 MPa dry
- Water absorption of 8.5%
Specifications
Attribute | Value |
---|---|
Colour | White |
Length | 1m |
Material | Nylon |
Form | Rod |
Rod Diameter | 45mm |
Density | 1.14g/cm³ |
Tensile Strength | 60 (Wet) MPa, 80 (Dry) MPa |
Flammability Rating | UL HB |
Maximum Operating Temperature | +170°C |
Elongation | 150% |
Hardness | 170 Ball Indentation |
Water Absorption | 8.5% |
