Bulk discount available
Subtotal (1 lot of 2 units)*
£26.78
(exc. VAT)
£32.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 95 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Lot(s) | Per Lot | Per unit* |
---|---|---|
1 - 2 | £26.78 | £13.39 |
3 - 9 | £24.88 | £12.44 |
10 - 29 | £23.57 | £11.785 |
30 + | £21.42 | £10.71 |
*price indicative
- RS Stock No.:
- 680-268
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Colour | White | |
Length | 1m | |
Material | Nylon | |
Form | Rod | |
Rod Diameter | 20mm | |
Density | 1.14g/cm³ | |
Tensile Strength | 60 (Wet) MPa, 80 (Dry) MPa | |
Maximum Operating Temperature | +170°C | |
Flammability Rating | UL HB | |
Water Absorption | 8.5% | |
Elongation | 150% | |
Hardness | 170 Ball Indentation | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Colour White | ||
Length 1m | ||
Material Nylon | ||
Form Rod | ||
Rod Diameter 20mm | ||
Density 1.14g/cm³ | ||
Tensile Strength 60 (Wet) MPa, 80 (Dry) MPa | ||
Maximum Operating Temperature +170°C | ||
Flammability Rating UL HB | ||
Water Absorption 8.5% | ||
Elongation 150% | ||
Hardness 170 Ball Indentation | ||
- COO (Country of Origin):
- DE

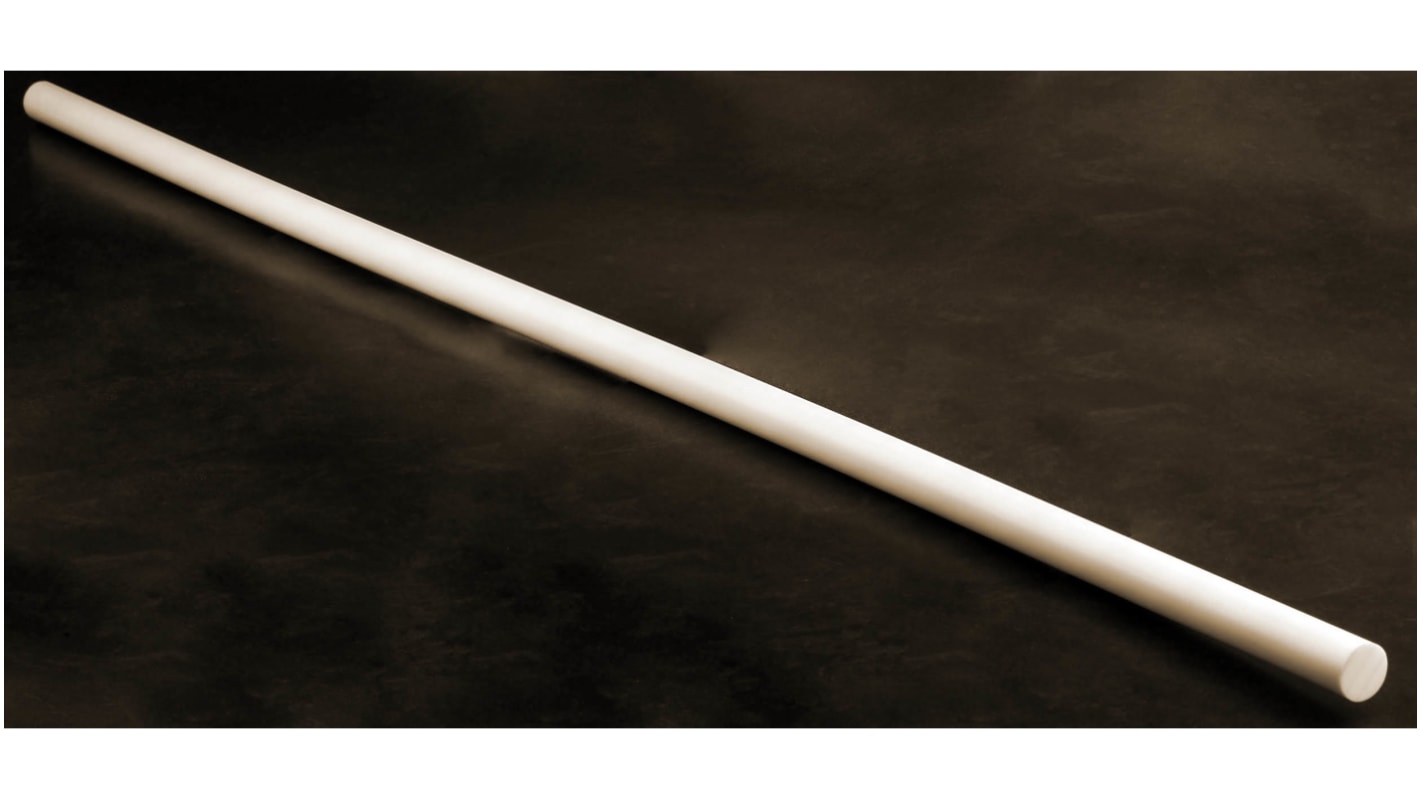

RS PRO Plastic Rod/Bar 1000 mm x 20 mm diameter
Nylon material withstands far more heat than normal plastic. No surprise it is commonly used to produce high-quality Plastic Rod.
Today, we are proudly introducing our own branded RS PRO Plastic Rod (known as Round Bar) with 1000 mm long with a white, natural appearance.
The Rod finds appreciation in electric, marine or automotive industries, but has its highly ranked position by DIY enthusiasts.
Our Rod provides high chemical and UV resistance along with possessing good self-lubricating qualities.
The maximum long term working temperature tolerance is up to + 170°C to suits different project requirements.
Today, we are proudly introducing our own branded RS PRO Plastic Rod (known as Round Bar) with 1000 mm long with a white, natural appearance.
The Rod finds appreciation in electric, marine or automotive industries, but has its highly ranked position by DIY enthusiasts.
Our Rod provides high chemical and UV resistance along with possessing good self-lubricating qualities.
The maximum long term working temperature tolerance is up to + 170°C to suits different project requirements.
Features and Benefits
- The 1000 mm Natural Rod characterising high melting point nylon 66
- The Rod offers excellent electrical properties
- 20 mm diameter Rod has high chemical resistance characteristics
- Easy process to make gears during machine operation
- Natural, white colour
- Higher heat tolerance
- Outstanding frictional properties
Applications
- DIY building projects
- Bushings
- Insulators
- Rollers
- Gears
- Sheaves
Why RS PRO?
RS PRO is our own-brand range of great-value products. Each part of every RS PRO product is stringently tested against demanding industry standards. We give it our seal of approval only when we're confident of exceptional quality. That's why RS PRO is trusted by engineers worldwide.
Standards
DIN 50 014
Natural & Cast Nylon
