Bulk discount available
Subtotal (1 lot of 3 units)*
£26.72
(exc. VAT)
£32.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 91 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Lot(s) | Per Lot | Per unit* |
|---|---|---|
| 1 - 2 | £26.72 | £8.907 |
| 3 - 9 | £24.84 | £8.28 |
| 10 - 29 | £23.51 | £7.837 |
| 30 + | £22.41 | £7.47 |
*price indicative
- RS Stock No.:
- 282-0581
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Colour | White | |
| Length | 1m | |
| Material | Nylon | |
| Form | Rod | |
| Rod Diameter | 16mm | |
| Density | 1.14g/cm³ | |
| Tensile Strength | 60 (Wet) MPa, 80 (Dry) MPa | |
| Flammability Rating | UL HB | |
| Maximum Operating Temperature | +170°C | |
| Elongation | 150% | |
| Water Absorption | 8.5% | |
| Hardness | 170 Ball Indentation | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Colour White | ||
Length 1m | ||
Material Nylon | ||
Form Rod | ||
Rod Diameter 16mm | ||
Density 1.14g/cm³ | ||
Tensile Strength 60 (Wet) MPa, 80 (Dry) MPa | ||
Flammability Rating UL HB | ||
Maximum Operating Temperature +170°C | ||
Elongation 150% | ||
Water Absorption 8.5% | ||
Hardness 170 Ball Indentation | ||
- COO (Country of Origin):
- DE

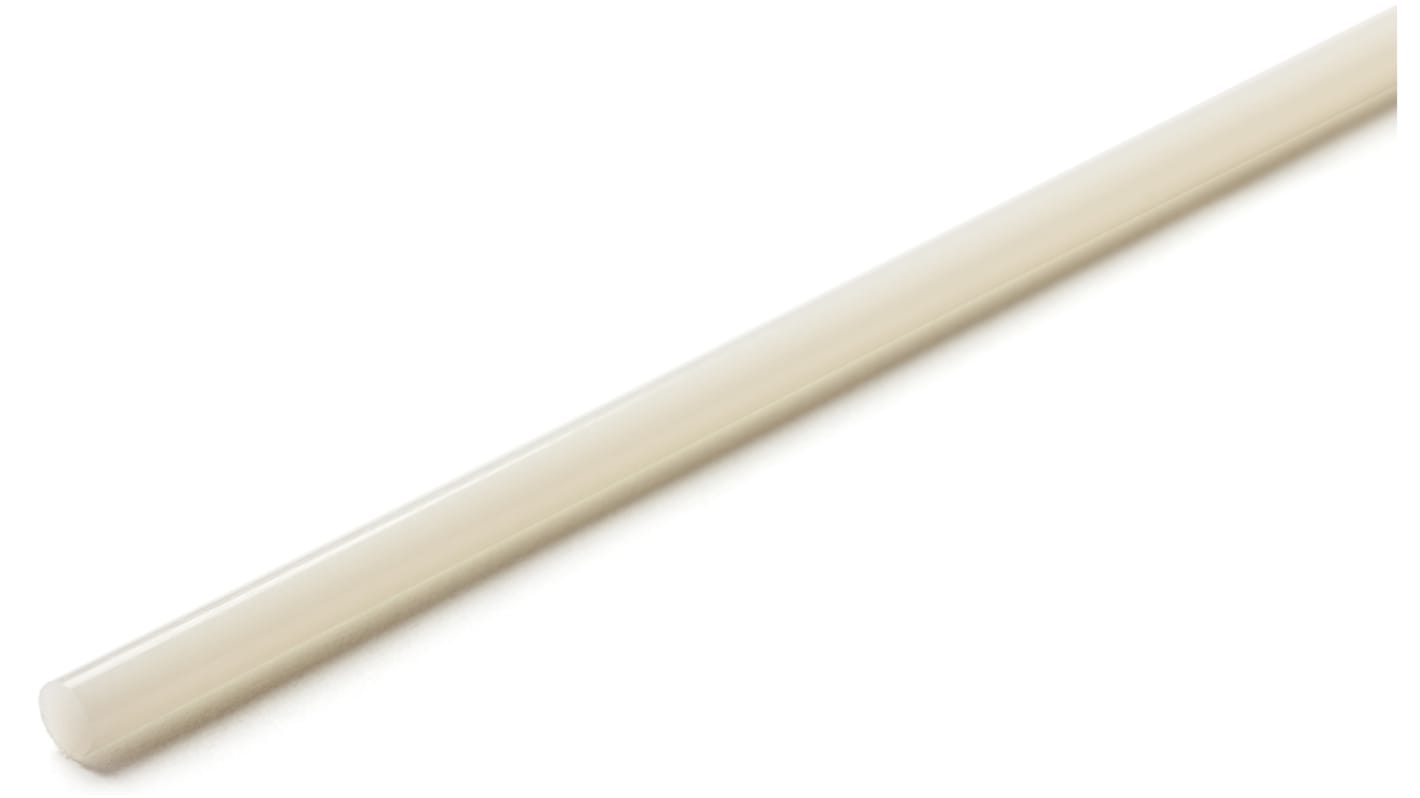

RS PRO White Nylon Rod, 1 m x 16 mm Diameter
This RS PRO white nylon rod can be used to make engineering components that are both strong and lightweight. It has a one-metre length and is highly machinable, allowing you to adapt the rod's shape and size according to your needs.
The rod's UL HB (Underwriters' Laboratories Horizontal Burning) grade means it will burn slowly, so it's safe to use in environments where flames may be present. The chemically resistant nylon 66 material offers a high level of impact strength, ensuring a long and reliable product life.
It has a high melting point and can withstand temperatures of up to +170°C, making it ideal for high-temperature applications. It's commonly used for wheels, bearings and gears in aerospace equipment, as well as food processing and packaging machinery.
The rod's UL HB (Underwriters' Laboratories Horizontal Burning) grade means it will burn slowly, so it's safe to use in environments where flames may be present. The chemically resistant nylon 66 material offers a high level of impact strength, ensuring a long and reliable product life.
It has a high melting point and can withstand temperatures of up to +170°C, making it ideal for high-temperature applications. It's commonly used for wheels, bearings and gears in aerospace equipment, as well as food processing and packaging machinery.
Features and Benefits
- White colour
- Density of 1.14 g/cm³
- Elongation of 150%
- UL HB (Underwriters' Laboratories Horizontal Burning) flammability rating
- Rod form
- Hardness of 170 ball indentation
- Length of 1 m
- Nylon material
- Maximum operating temperature of +170°C
- Rod diameter of 16 mm
- Tensile strength of 60 megapascals (MPa) wet, 80 MPa dry
- Water absorption of 8.5%
