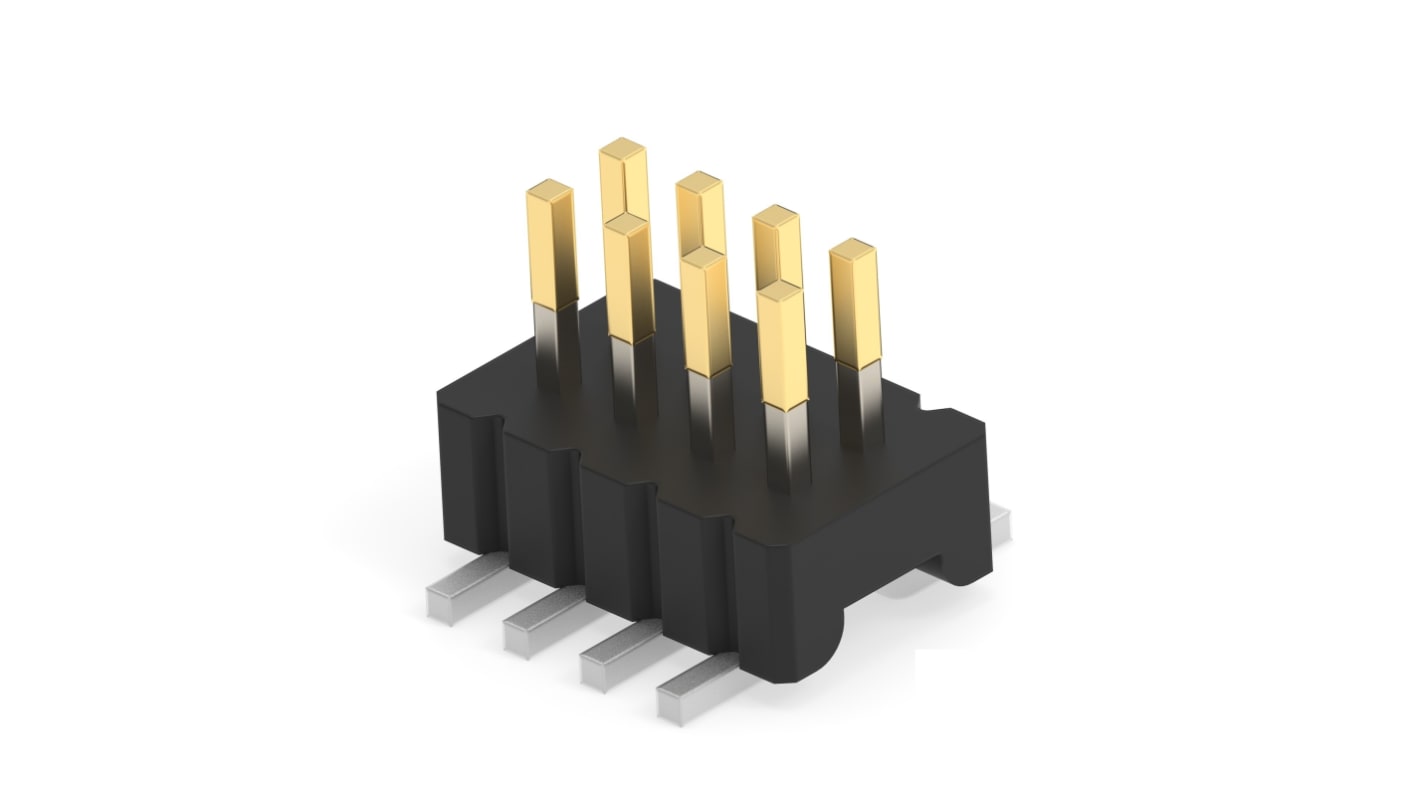

TE Connectivity 5-2331928 Series Vertical Board Mount PCB Header, 10 Contact(s), 1mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 278-8616
- Mfr. Part No.:
- 5-2331928-4
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£2.84
(exc. VAT)
£3.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 900 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £2.84 |
| 10 - 24 | £2.56 |
| 25 - 49 | £2.33 |
| 50 - 99 | £2.13 |
| 100 + | £1.91 |
*price indicative
- RS Stock No.:
- 278-8616
- Mfr. Part No.:
- 5-2331928-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | 5-2331928 | |
| Pitch | 1mm | |
| Number of Contacts | 10 | |
| Number of Rows | 2 | |
| Body Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mounting Type | Board Mount | |
| Connector System | Board to Board | |
| Termination Method | Surface Mount | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold Flash | |
| Current Rating | 1A | |
| Tail Pin Length | 0.3mm | |
| Gender | Male | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series 5-2331928 | ||
Pitch 1mm | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mounting Type Board Mount | ||
Connector System Board to Board | ||
Termination Method Surface Mount | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold Flash | ||
Current Rating 1A | ||
Tail Pin Length 0.3mm | ||
Gender Male | ||
- COO (Country of Origin):
- US
The TE Connectivity AMPMODU Small Centerline Interconnection Systems are fine pitch 1.0 mm connectors that offer 85 percent space savings on the board when compared to standard 2.54 mm pitch products. Their dual beam contact design provides a reliable electrical connection even in severe shock and vibration environments. To serve a broad range of design requirements, the portfolio offers up to 100 positions with 2 plating options and supports automated surface mounting and reflow processes.
Improved durability and corrosion resistance with gold plating
Time savings thanks to reflow capable materials
Greater flexibility in assembly of boards with dual entry receptacles
Time savings thanks to reflow capable materials
Greater flexibility in assembly of boards with dual entry receptacles
