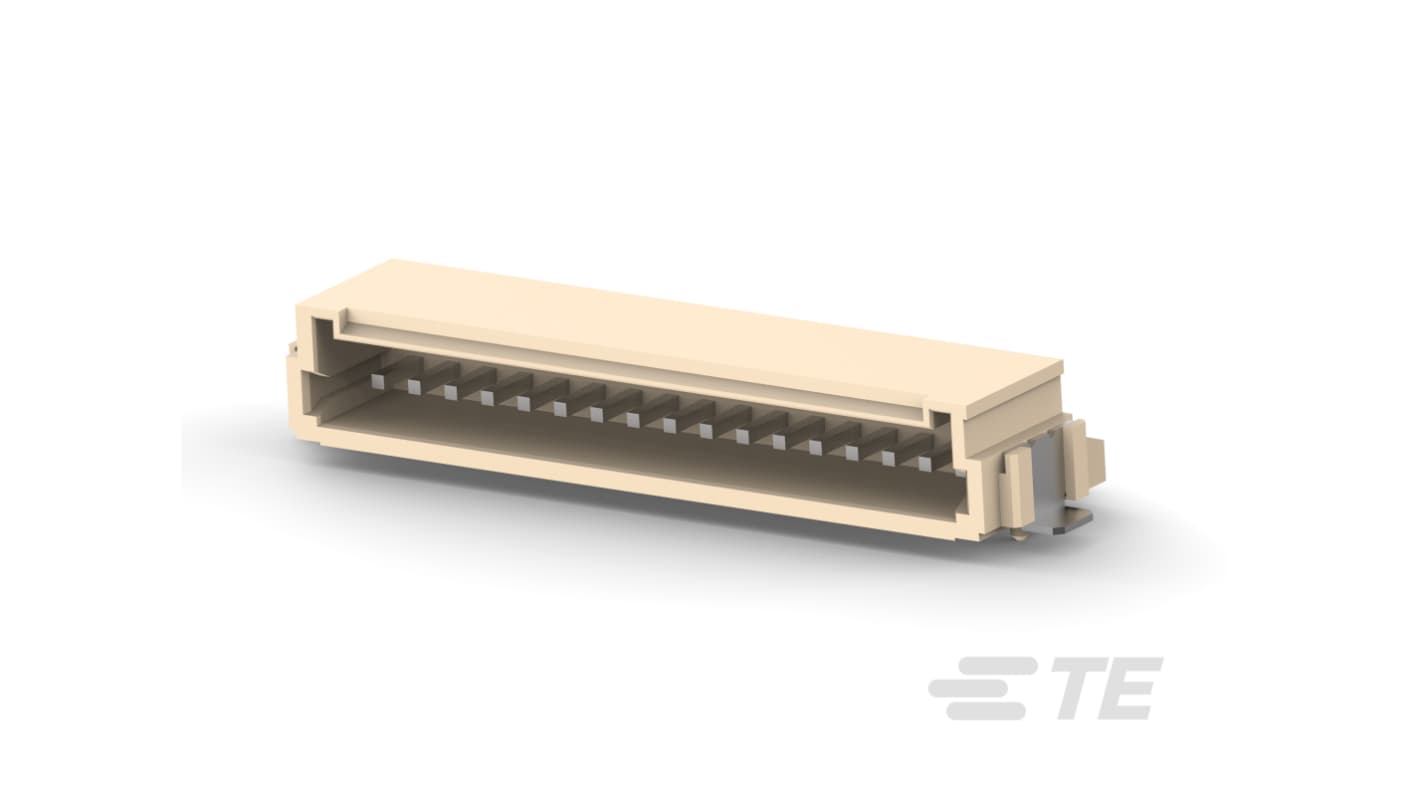

TE Connectivity VAL-U-LOK Series Right Angle Board PCB Header, 17 Contact(s), 1.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 526-203
- Mfr. Part No.:
- 1-292227-7
- Brand:
- TE Connectivity
Subtotal (1 reel of 700 units)*
£1,052.20
(exc. VAT)
£1,262.64
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,052.20 | £1.503 |
*price indicative
- RS Stock No.:
- 526-203
- Mfr. Part No.:
- 1-292227-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | VAL-U-LOK | |
| Current | 2A | |
| Pitch | 1.5mm | |
| Number of Contacts | 17 | |
| Housing Material | Polyamide 6T | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Plating | Tin Plated | |
| Contact Material | Brass | |
| Termination Type | Surface Mount | |
| Minimum Operating Temperature | 30°C | |
| Row Pitch | 1.5mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Mating Pin Length | 2.4mm | |
| Voltage | 50 V | |
| Distrelec Product Id | 304-53-485 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series VAL-U-LOK | ||
Current 2A | ||
Pitch 1.5mm | ||
Number of Contacts 17 | ||
Housing Material Polyamide 6T | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Plating Tin Plated | ||
Contact Material Brass | ||
Termination Type Surface Mount | ||
Minimum Operating Temperature 30°C | ||
Row Pitch 1.5mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Mating Pin Length 2.4mm | ||
Voltage 50 V | ||
Distrelec Product Id 304-53-485 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB mount header is engineered for efficient wire-to-board connectivity, offering a right-angled orientation that maximises space utilisation on circuit boards. This component features 17 positions, making it ideal for applications where multiple signal connections are required. Fully shrouded with a natural nylon 6T housing, it ensures secure and reliable operation even in demanding environments. With a surface mount design, the connector is easily incorporated into printed circuit boards, enhancing assembly efficiency. Designed to operate within a temperature range of -30 to 105 °C, it accommodates a variety of applications, from consumer electronics to industrial machinery, demonstrating versatility and durability.
Constructed with a latch for enhanced mating retention, ensuring a secure connection
Designed for surface mount termination, simplifying the circuit board assembly process
Mating alignment is facilitated by built-in polarization features for easier installation
Compact dimensions enable efficient use of board space, aiding in overall device design
Compatible with various industry standards, guaranteeing compliance and quality assurance
Primary contact material is brass, providing excellent conductivity and reliability
Product is packaged in bulk quantities, making it suitable for large-scale manufacturing
