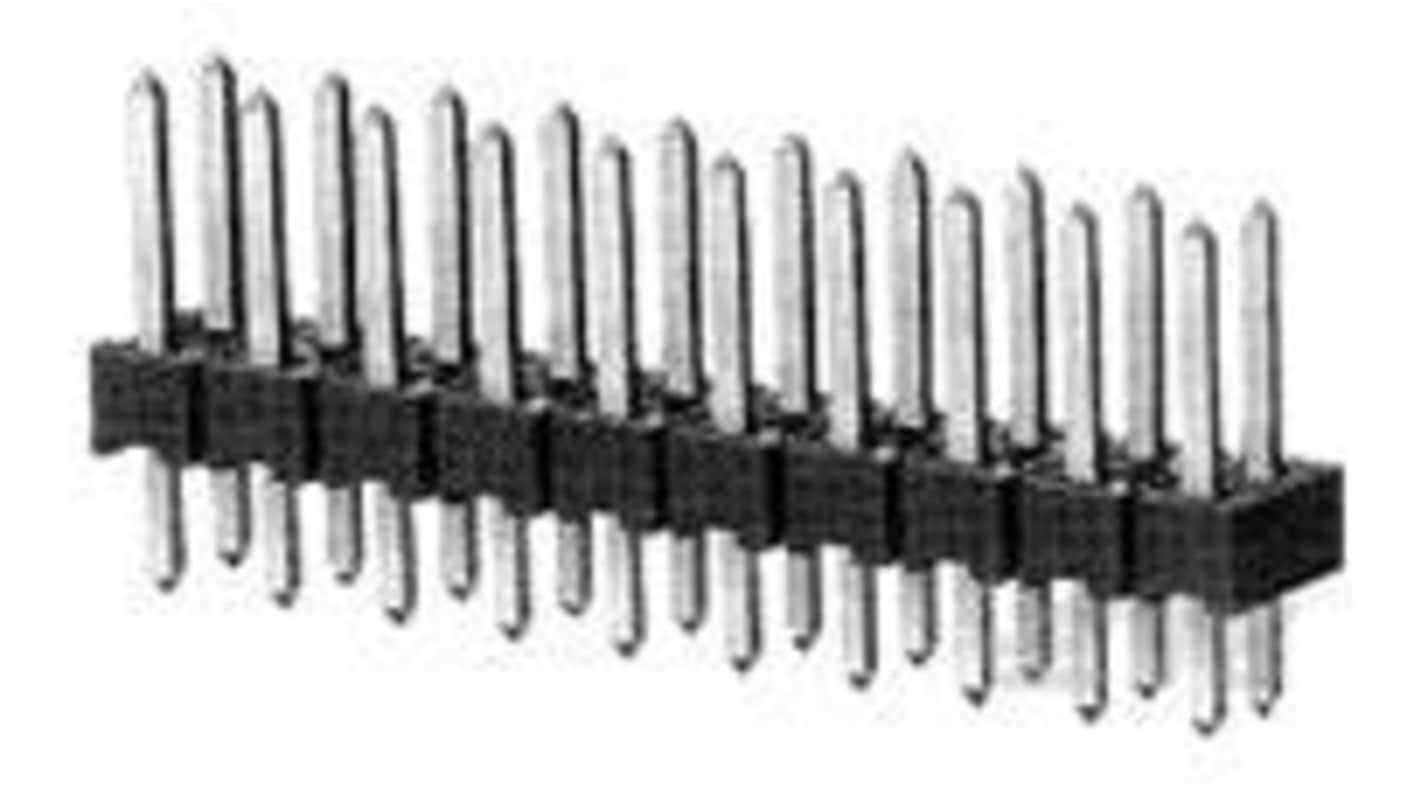

TE Connectivity AMPMODU Series Vertical Through Hole PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row(s), Unshrouded

View all PCB Headers

Subtotal (1 pack of 320 units)*

£238.97

(exc. VAT)

£286.76

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£238.97£0.747

*price indicative

RS Stock No.:
520-553
Mfr. Part No.:
5-146258-5
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Header

Series

AMPMODU

Current

3A

Pitch

2.54mm

Number of Contacts

10

Housing Material

Thermoplastic

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Unshrouded

Mount Type

Through Hole

Connector System

Board-to-Board

Contact Plating

Tin Plated

Contact Material

Phosphor Bronze

Row Pitch

2.54mm

Minimum Operating Temperature

65°C

Termination Type

Solder

Maximum Operating Temperature

105°C

Tail Pin Length

2.29mm

Standards/Approvals

No

Voltage

30 V

Distrelec Product Id

304-50-882

COO (Country of Origin):
MX
The TE Connectivity PCB Mount Header is expertly designed to facilitate reliable board-to-board connections in applications demanding precision and durability. This connector assembly features a vertical orientation with a breakaway header type, ensuring seamless integration into various electronic configurations. Constructed from high-quality thermoplastic housing and incorporating nickel underplated contacts, it promises impressive longevity and performance. The unit accommodates a 10-position layout with a standard pitch, making it compatible with a wide range of circuit applications, including signal transmission. Furthermore, its robust operating temperature range ensures functionality in diverse environments, reinforcing its utility in demanding industrial settings.

Constructed for vertical PCB mounting to optimise space within your design

Breakaway header type allows easy manufacturing integration

Features a dependable board-to-board connection for enhanced signal integrity

Durable thermoplastic housing withstands high operational demands

Contact materials are designed for maximum durability and conductivity

Supports a wide operating temperature range for versatile applications

Pin-compatible design simplifies upgrades and replacements in existing setups

Compliant with crucial industry standards, ensuring safety and reliability

Package quantity of 320 facilitates large-scale production needs
