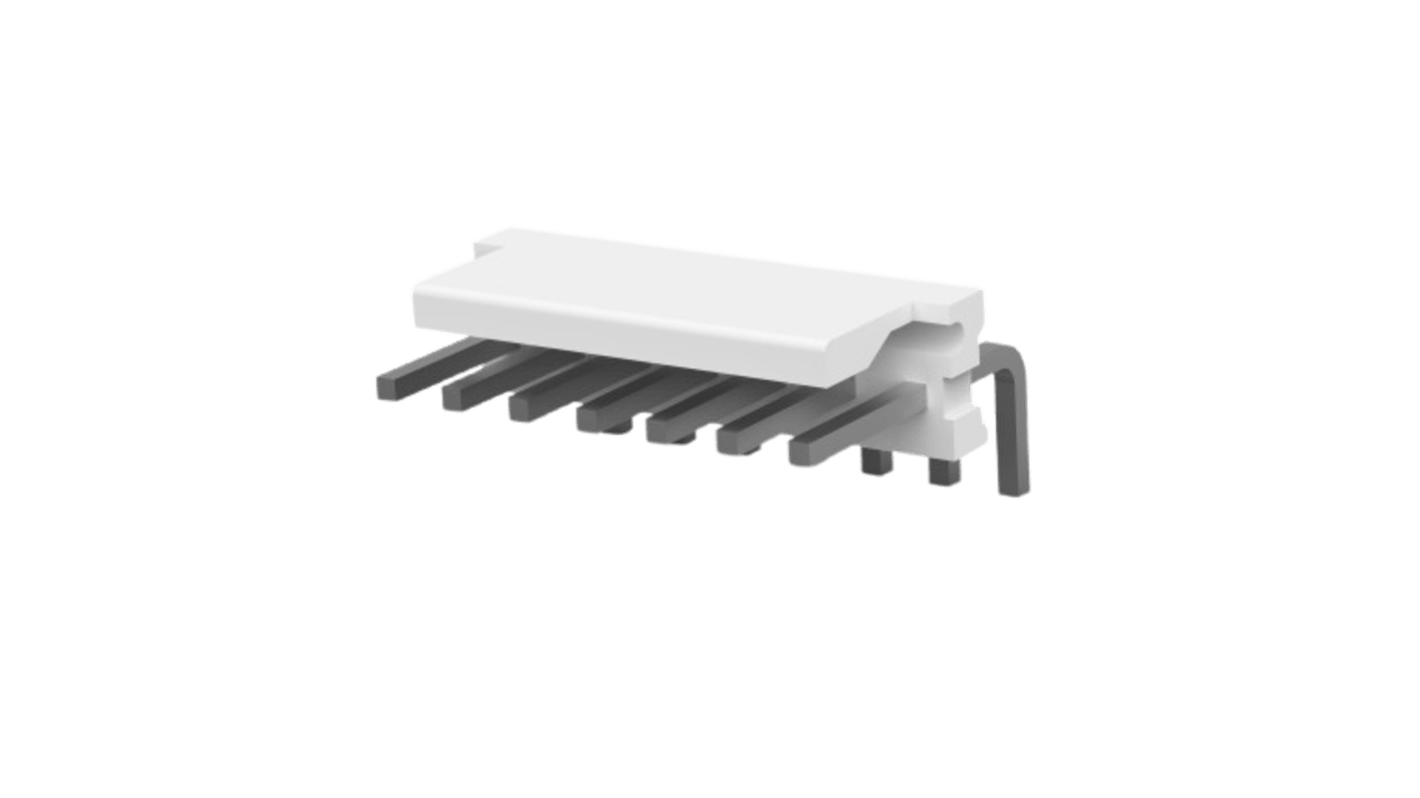

TE Connectivity 3-644 Series Right Angled Board Mount PCB Header, 7 Contact(s), 3.96mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 509-913
- Mfr. Part No.:
- 3-644754-7
- Brand:
- TE Connectivity
Subtotal (1 pack of 150 units)*
£227.14
(exc. VAT)
£272.57
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £227.14 | £1.514 |
*price indicative
- RS Stock No.:
- 509-913
- Mfr. Part No.:
- 3-644754-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | 3-644 | |
Pitch | 3.96mm | |
Number of Contacts | 7 | |
Number of Rows | 1 | |
Body Orientation | Right Angled | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Board Mount | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series 3-644 | ||
Pitch 3.96mm | ||
Number of Contacts 7 | ||
Number of Rows 1 | ||
Body Orientation Right Angled | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Board Mount | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is an innovative solution designed for reliable wire-to-board connections. Engineered with precision, the right-angle orientation and partially shrouded design ensure optimal performance in compact spaces. It features seven positions with a robust 3.96 mm centreline, making it suitable for a variety of applications in power circuits. The headers construction utilises high-grade materials, including a tin-plated copper alloy, which provides excellent conductivity and durability, ensuring longevity in demanding electrical environments. Additionally, this product is compliant with rigorous industry standards, making it a trusted choice for engineers and designers seeking reliability in their electronic assemblies. Its thoughtful design minimizes the risk of misalignment during installation, further enhancing operational efficiency.
Offers seamless integration into existing PCB layouts with a right-angle orientation
Designed for ease of use with friction lock features for secure mating
Constructed with thermoplastic polyester for superior heat resistance
Accommodates a variety of PCB thicknesses, ensuring versatile application
Supports high current ratings, facilitating robust performance in power applications
Optimised for wave soldering processes, streamlining production capabilities
Enhanced with a matte finish to reduce soldering halos and improve aesthetic appeal
Delivers reliable electrical connections with minimal maintenance requirements
Designed for ease of use with friction lock features for secure mating
Constructed with thermoplastic polyester for superior heat resistance
Accommodates a variety of PCB thicknesses, ensuring versatile application
Supports high current ratings, facilitating robust performance in power applications
Optimised for wave soldering processes, streamlining production capabilities
Enhanced with a matte finish to reduce soldering halos and improve aesthetic appeal
Delivers reliable electrical connections with minimal maintenance requirements
