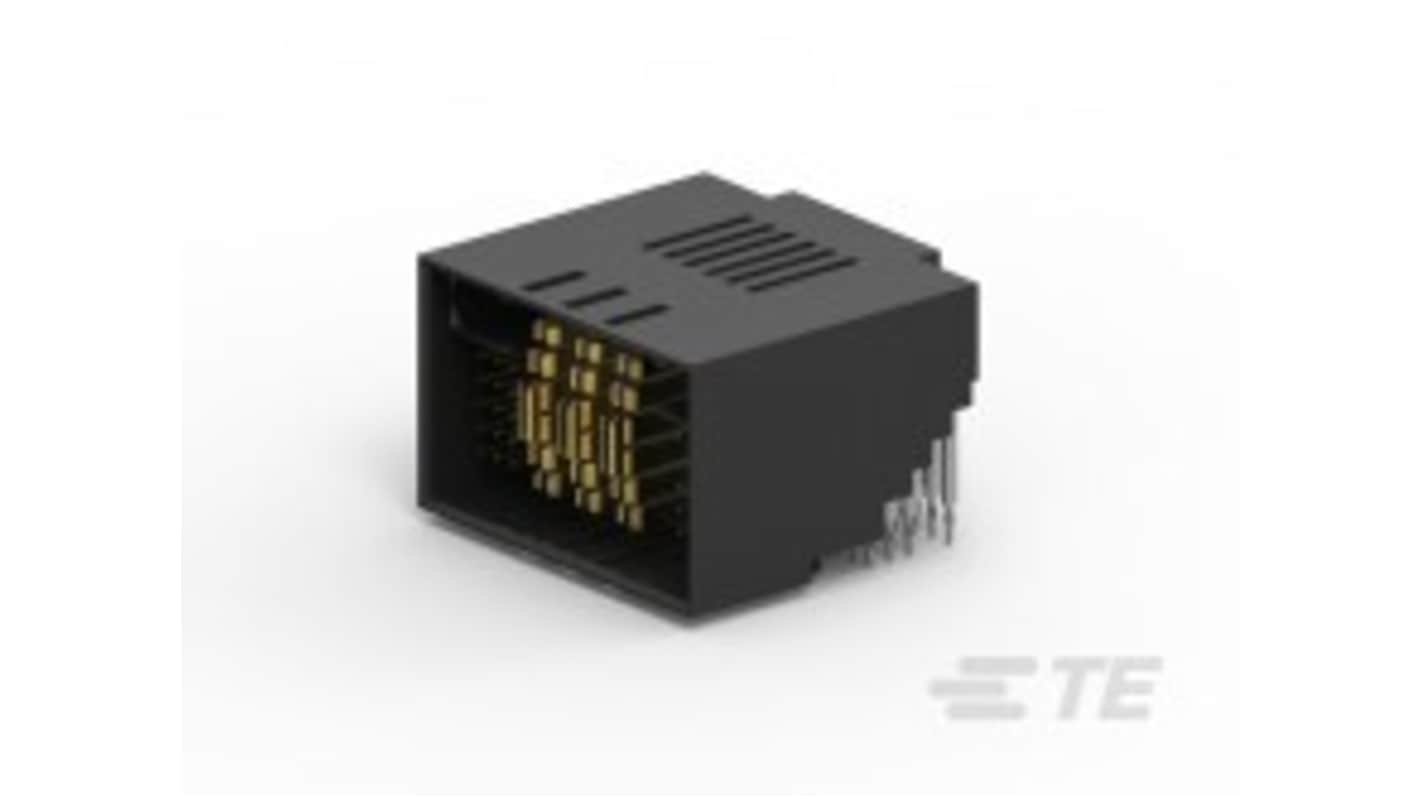

TE Connectivity 2204440-7 Series Right Angle PCB PCB Header, 30 Contact(s), 2.5 mm Pitch, 5 Row(s), Shrouded
- RS Stock No.:
- 508-937
- Mfr. Part No.:
- 2204440-7
- Brand:
- TE Connectivity
Subtotal (1 tray of 9 units)*
£213.18
(exc. VAT)
£255.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £213.18 | £23.687 |
*price indicative
- RS Stock No.:
- 508-937
- Mfr. Part No.:
- 2204440-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | 2204440-7 | |
| Product Type | PCB Header | |
| Pitch | 2.5mm | |
| Current | 279A | |
| Housing Material | High Temperature Thermoplastic | |
| Number of Contacts | 30 | |
| Number of Rows | 5 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | PCB | |
| Contact Plating | Gold over Nickel | |
| Termination Type | Solder | |
| Row Pitch | 2.5mm | |
| Minimum Operating Temperature | -40°C | |
| Tail Pin Length | 3.2mm | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-58-453 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series 2204440-7 | ||
Product Type PCB Header | ||
Pitch 2.5mm | ||
Current 279A | ||
Housing Material High Temperature Thermoplastic | ||
Number of Contacts 30 | ||
Number of Rows 5 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type PCB | ||
Contact Plating Gold over Nickel | ||
Termination Type Solder | ||
Row Pitch 2.5mm | ||
Minimum Operating Temperature -40°C | ||
Tail Pin Length 3.2mm | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | ||
Voltage 60 V | ||
Distrelec Product Id 304-58-453 | ||
- COO (Country of Origin):
- CN
The TE Connectivity Rectangular power connector is designed for seamless board-to-board applications, providing premium reliability and versatility across various electronic devices. With its fully shrouded header type and robust construction, this connector is ideal for high-density power and signal configurations, accommodating up to 30 positions. Engineered with a 2 mm and 5 mm centreline pitch, it ensures compatibility with diverse PCB designs, making it a preferred choice in demanding environments. The advanced MULTI-BEAM HD technology enhances performance while offering a right-angle PCB mount orientation for space-efficient integration. Additionally, this connector supports an impressive operating voltage of 60 VDC, catering to a broad range of electronic needs with confidence and safety.
Offers a highly secure fit for reliable connections
Robust design withstands high temperatures and demanding conditions
Facilitates easy assembly with through-hole press-fit termination
Optimised for power and signal applications simultaneously
Complies with stringent UL flammability and RoHS directives
