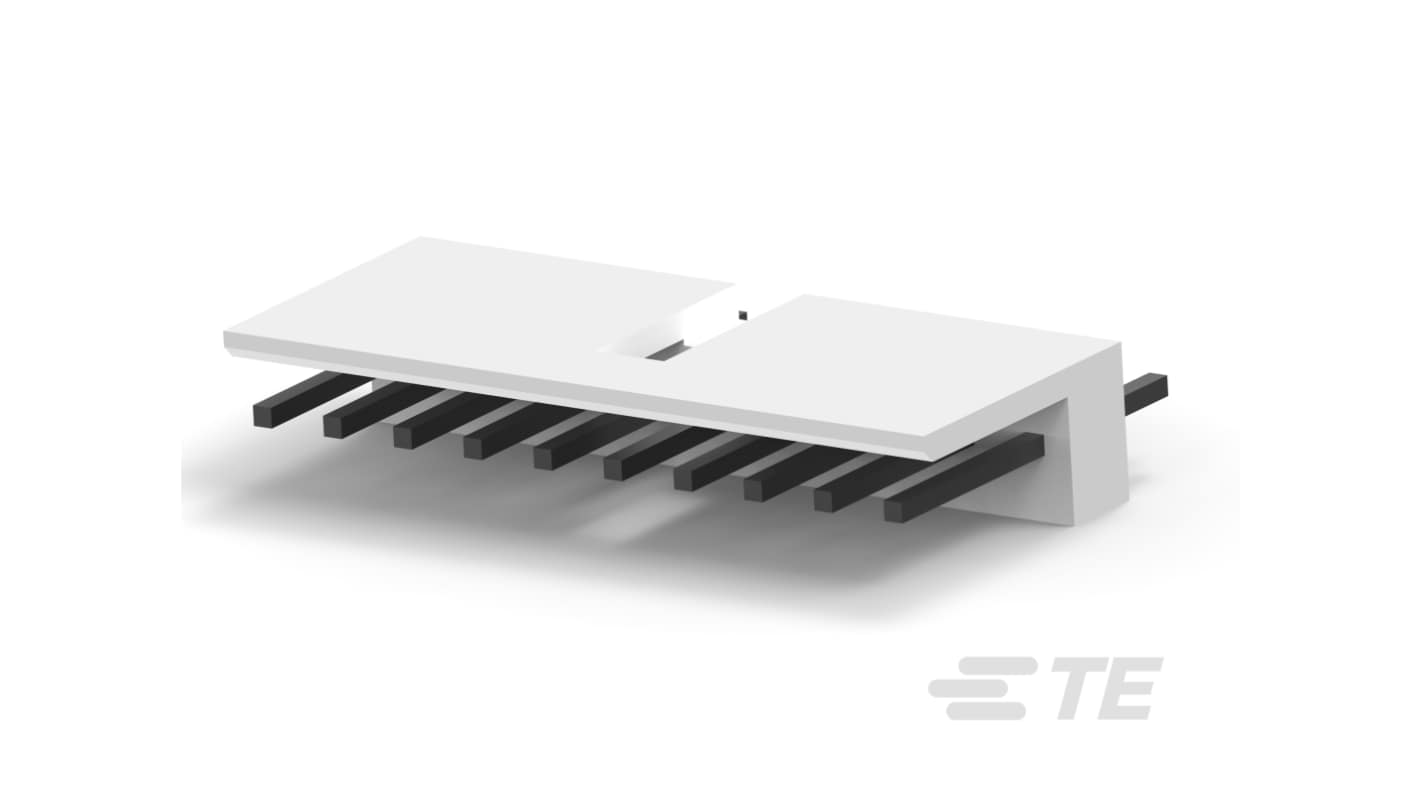

TE Connectivity 1-1718 Series Vertical Board PCB Header, 10 Contact(s), 5 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 bag of 300 units)*

£169.40

(exc. VAT)

£203.28

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 +£169.40£0.565

*price indicative

RS Stock No.:
508-378
Mfr. Part No.:
1-171825-0
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Header

Series

1-1718

Current

5A

Pitch

5mm

Number of Contacts

10

Housing Material

Polyamide 66

Number of Rows

1

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Board

Contact Plating

Tin Plated

Contact Material

Brass

Termination Type

Solder

Row Pitch

5mm

Minimum Operating Temperature

-20°C

Tail Pin Length

3.6mm

Maximum Operating Temperature

95°C

Contact Gender

Male

Standards/Approvals

China RoHS 2, EU ELV, EU RoHS, UL, UL 94V-0

Mating Pin Length

7.5mm

Voltage

250 V

COO (Country of Origin):
CN
The TE Connectivity PCB Mount Header is a versatile component designed for seamless wire-to-board connections. Engineered for reliability, it features a vertical orientation and can accommodate up to 10 positions, making it ideal for compact designs. With a 5 mm centreline spacing and partially shrouded header type, this connector is perfect for applications requiring efficient space utilisation without compromising performance. The part boasts robust construction using high-quality materials, ensuring it withstands demanding conditions. Rated for up to 250 VDC, this header is particularly suited for signal applications. Its low-profile design enhances compatibility with various PCBs, while the tin-plated finish provides superior solder ability, securing a strong connection. Whether you’re working on automotive, industrial, or consumer electronics, this header delivers dependable performance and ease of installation.

Optimised for vertical mounting to save space in compact applications

Compatible with multiple wire sizes enhancing versatility for various projects

Designed for through hole soldering ensuring secure PCB attachment

Employs low halogen materials contributing to environmentally friendly manufacturing

Includes features for easy alignment during mating simplifying the installation process

Crafted from durable nylon housing offering resilience against mechanical stresses
