Molex 505270 Series Board PCB Header, Shrouded
- RS Stock No.:
- 506-048
- Mfr. Part No.:
- 505270-1010
- Brand:
- Molex
Subtotal (1 reel of 1000 units)*
£201.92
(exc. VAT)
£242.30
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £201.92 | £0.202 |
*price indicative
- RS Stock No.:
- 506-048
- Mfr. Part No.:
- 505270-1010
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 505270 | |
| Product Type | PCB Header | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 505270 | ||
Product Type PCB Header | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- JP

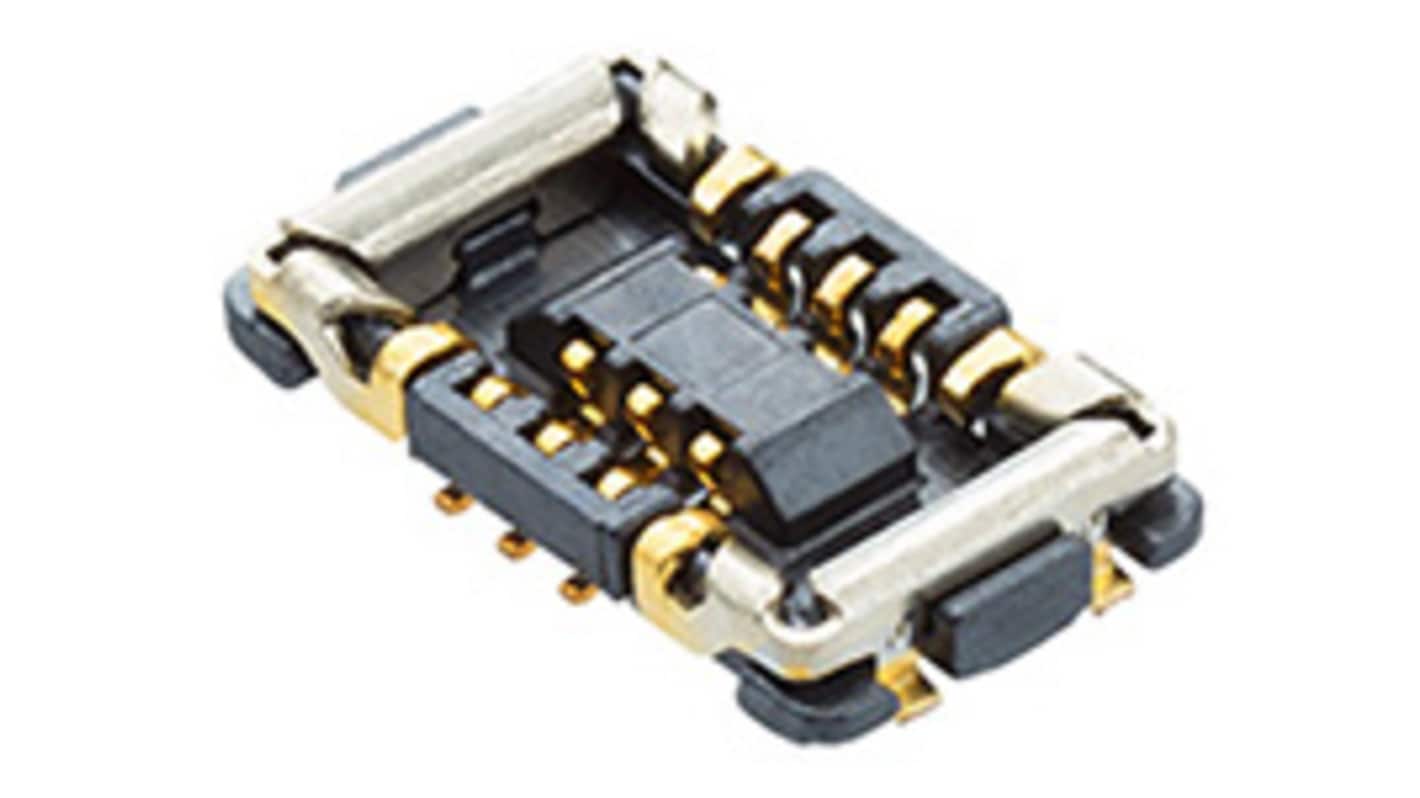

The Molex Board-to-Board Receptacle is a Compact and reliable connector designed for high-density electronic applications. It features a 0.35mm pitch and offers flexibility with either a 0.70mm or 0.80mm mated height, accommodating 10 circuits within a 2.00mm mated width. Equipped with an armor nail, this connector ensures enhanced mechanical stability and secure mating, making it Ideal for space-constrained designs requiring dependable electrical performance.
RoHS compliant
Low halogen
