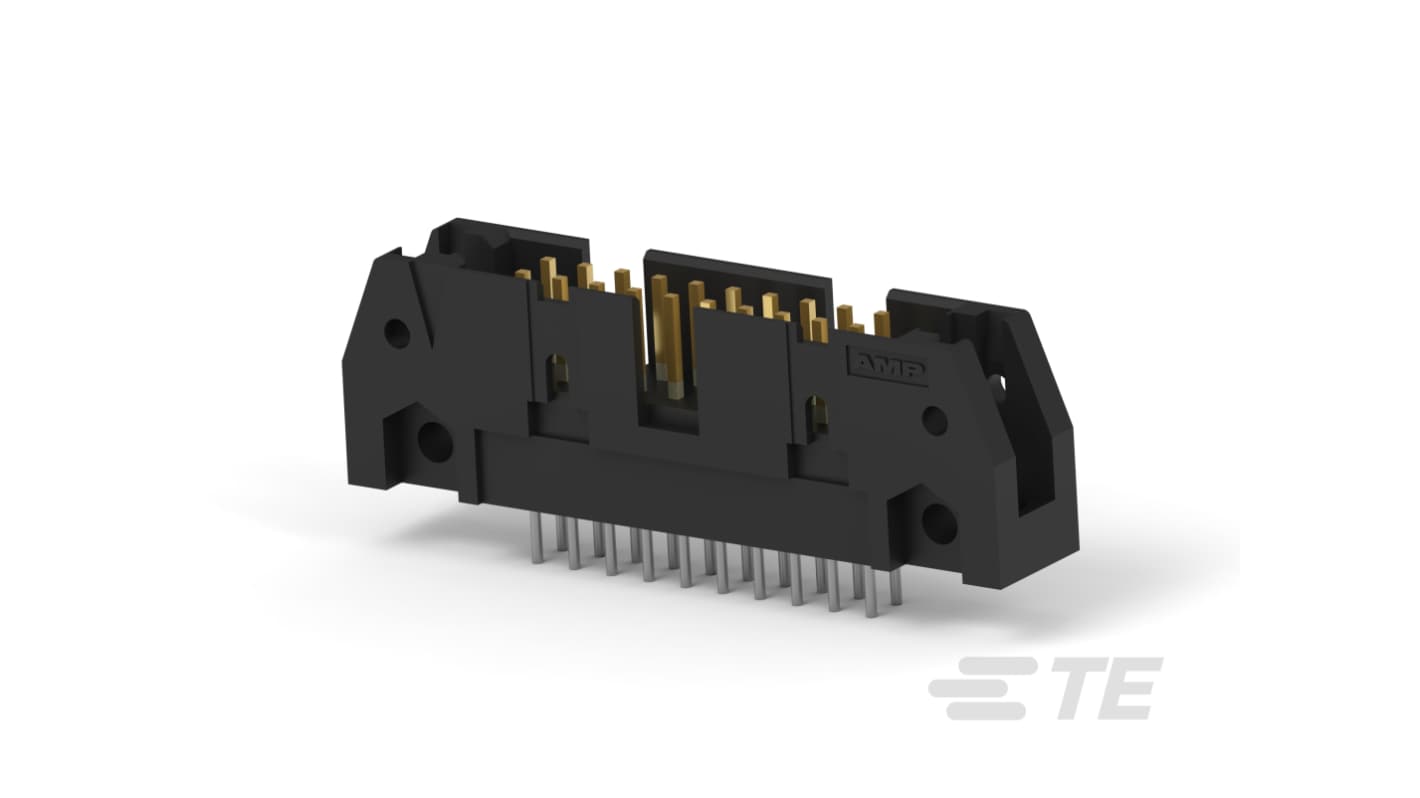

TE Connectivity AMP-LATCH Series Vertical Board PCB Header, 20 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 tray of 80 units)*

£176.60

(exc. VAT)

£211.92

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s)
Per Tray
Per unit*
1 +£176.60£2.208

*price indicative

RS Stock No.:
505-949
Mfr. Part No.:
5102156-4
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Series

AMP-LATCH

Product Type

PCB Header

Pitch

2.54mm

Current

1A

Number of Contacts

20

Housing Material

Nylon Fibreglass

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Board

Contact Material

Phosphor Bronze

Contact Plating

Gold Flash over Nickel

Row Pitch

2.54mm

Termination Type

Solder

Minimum Operating Temperature

65°C

Tail Pin Length

3.94mm

Maximum Operating Temperature

105°C

Standards/Approvals

UL 94V-0

Voltage

250 V

COO (Country of Origin):
CN
The TE Connectivity Wire-to-Board connector is designed for seamless integration of electrical circuits in compact spaces. This versatile solution offers a robust 20-position configuration with a precise 2.54 mm centreline spacing, ensuring reliable connections for various applications. Its vertical orientation is tailored for through-hole soldering, providing enhanced stability on printed circuit boards. Crafted for high performance, this connector operates effectively within an extensive temperature range, accommodating diverse environmental conditions. With features such as a dual polarising bar for improved mating alignment and a secure ejection latch for added retention, it ensures secure connections that withstand mechanical stress. The connector’s construction prioritises both functionality and durability, making it an indispensable component in modern electronic designs.

Designed for superior wire-to-board connectivity

Offers enhanced mechanical alignment for secure mating

Built to handle a wide operating temperature range

Made with high-quality materials ensuring long-lasting use

Incorporates features to simplify installation and assembly

Provides reliable performance for a variety of applications

Streamlined design helps to save valuable board space

Facilitates easy integration with compatible components
