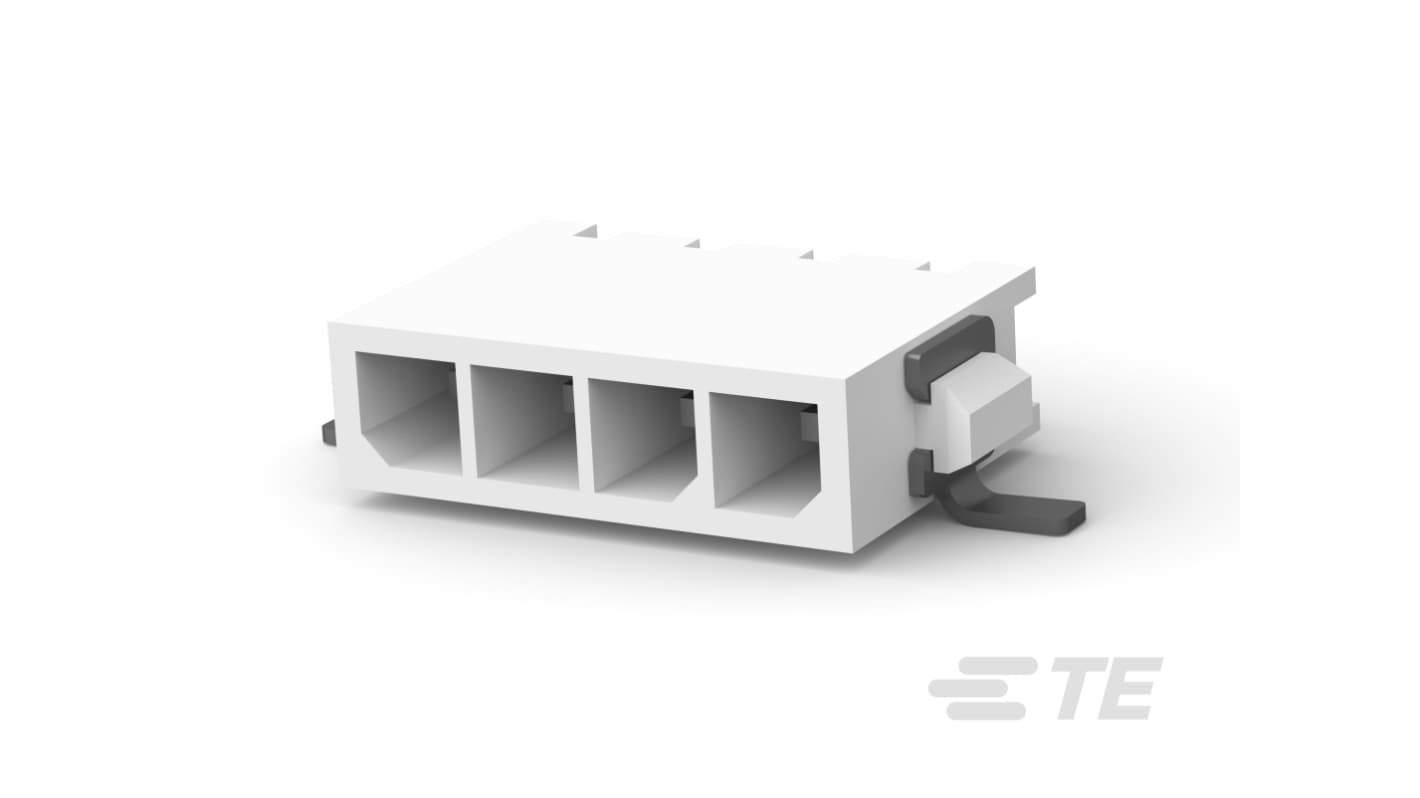

TE Connectivity Micro MATE-N-LOK Series Right Angle Surface PCB Header, 4 Contact(s), 3 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 504-677
- Mfr. Part No.:
- 2029104-4
- Brand:
- TE Connectivity
Subtotal (1 reel of 120 units)*
£173.81
(exc. VAT)
£208.57
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £173.81 | £1.448 |
*price indicative
- RS Stock No.:
- 504-677
- Mfr. Part No.:
- 2029104-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Micro MATE-N-LOK | |
| Product Type | PCB Header | |
| Pitch | 3mm | |
| Current | 5A | |
| Housing Material | Nylon | |
| Number of Contacts | 4 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Surface | |
| Contact Plating | Tin Plated | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Surface Mount | |
| Row Pitch | 3mm | |
| Maximum Operating Temperature | 105°C | |
| Mating Pin Length | 4.15mm | |
| Standards/Approvals | CSA, UL, VDE | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-52-773 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Micro MATE-N-LOK | ||
Product Type PCB Header | ||
Pitch 3mm | ||
Current 5A | ||
Housing Material Nylon | ||
Number of Contacts 4 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Surface | ||
Contact Plating Tin Plated | ||
Contact Material Brass | ||
Minimum Operating Temperature -40°C | ||
Termination Type Surface Mount | ||
Row Pitch 3mm | ||
Maximum Operating Temperature 105°C | ||
Mating Pin Length 4.15mm | ||
Standards/Approvals CSA, UL, VDE | ||
Voltage 250 V | ||
Distrelec Product Id 304-52-773 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB mount header is expertly designed to facilitate seamless wire-to-board connections with its right angle configuration and four positions. Engineered for efficiency, it features a fully shrouded structure that ensures optimal safety and reliability in demanding environments. The 3 mm centreline spacing makes it versatile for various applications, catering to both industrial and consumer electronic needs. With a focus on durability, the connector boasts a robust construction, complemented by a tin-plated finish that enhances its resistance to corrosion, ensuring a long-lasting performance. Maintenance is simplified due to its straightforward surface mount design, which aids in quick assembly and minimises installation time. Ideal for powering electronic circuitry, this connector is an essential component in modern electronic assemblies.
Designed for high reliability and performance in electronic connections
Offers easy soldering capabilities for efficient installation
Features a low connector profile to fit into compact spaces
Incorporates a natural housing material for improved thermal resistance
Achieves effective contact load conditions with fully loaded configurations
Provides mating alignment through built-in polarization for user convenience
Equipped with PCB retention features to ensure stability during operation
Meets industry standards for compatibility with various applications
