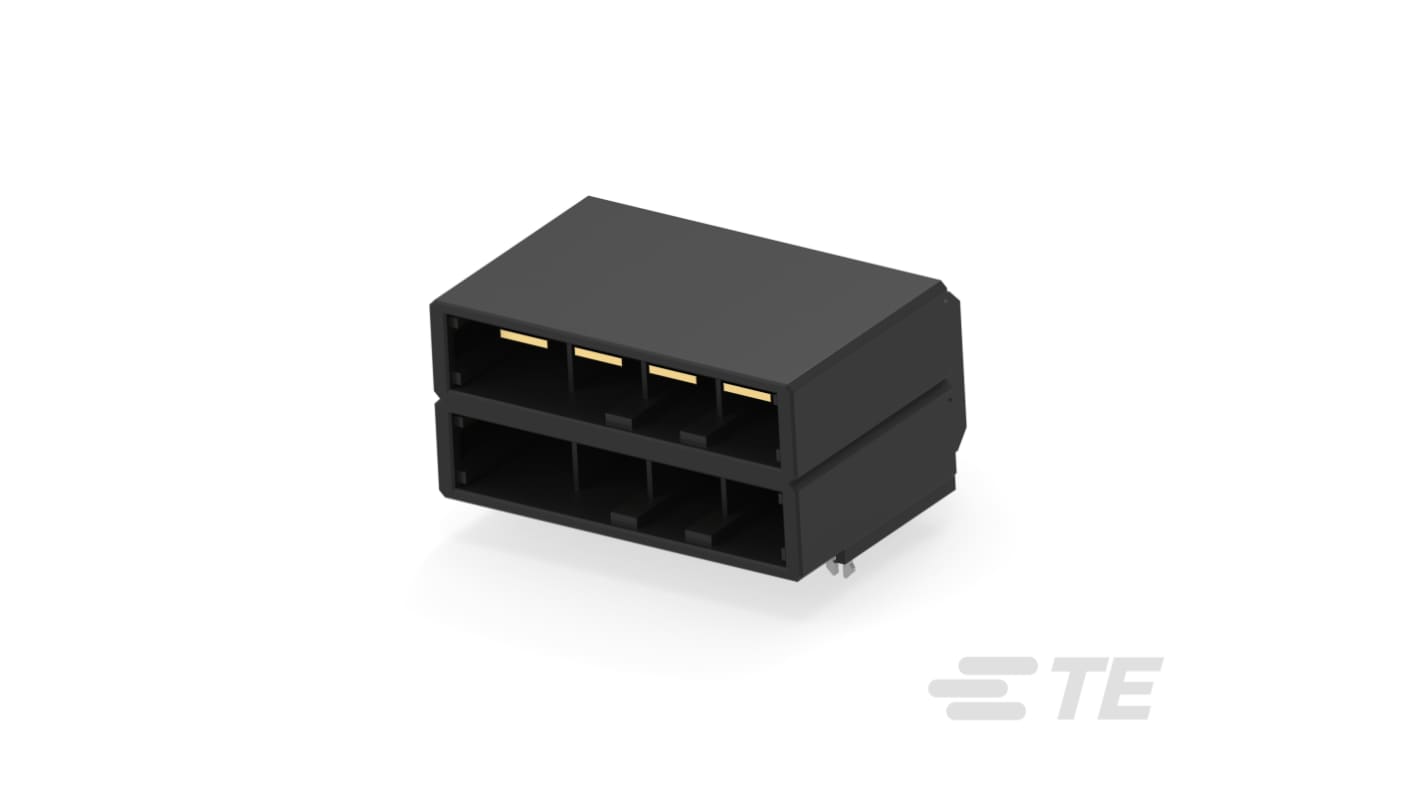

TE Connectivity PCB Header Series Horizontal Board Mount PCB Header, 8 Contact(s), 10.16mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 504-253
- Mfr. Part No.:
- 3-1123829-1
- Brand:
- TE Connectivity
Subtotal (1 tube of 9 units)*
£286.65
(exc. VAT)
£343.98
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 + | £286.65 | £31.85 |
*price indicative
- RS Stock No.:
- 504-253
- Mfr. Part No.:
- 3-1123829-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | PCB Header | |
Pitch | 10.16mm | |
Number of Contacts | 8 | |
Number of Rows | 2 | |
Body Orientation | Horizontal | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Board Mount | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series PCB Header | ||
Pitch 10.16mm | ||
Number of Contacts 8 | ||
Number of Rows 2 | ||
Body Orientation Horizontal | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Board Mount | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is meticulously designed for horizontal wire-to-board connectivity, making it an essential component for modern electronic applications. This connector assembly features an 8-position layout with a 10.16 mm centreline, offering reliable performance and exceptional placement stability. Enhanced by its fully shrouded design and gold plating, this connector ensures optimum electrical conductivity while safeguarding against physical and environmental stresses. Engineered to endure a broad temperature range, it guarantees robustness in diverse operating conditions, supporting efficient and uninterrupted functionalities. With the added assurance of compliance with various industry standards, this header is an ideal choice for manufacturers seeking reliability and quality in their PCB connections.
Fully shrouded header provides enhanced protection against damage
Black polyester GF housing contributes to a sturdy build
Designed for through hole soldering ensures robust connections
Keyed mating alignment features prevent incorrect connections
Suitable for wave soldering processes accommodating high volume production
UL 94V 0 rated for safety ensuring flame retardancy during operation
Ideal for applications requiring durability in extreme temperature ranges
Black polyester GF housing contributes to a sturdy build
Designed for through hole soldering ensures robust connections
Keyed mating alignment features prevent incorrect connections
Suitable for wave soldering processes accommodating high volume production
UL 94V 0 rated for safety ensuring flame retardancy during operation
Ideal for applications requiring durability in extreme temperature ranges
