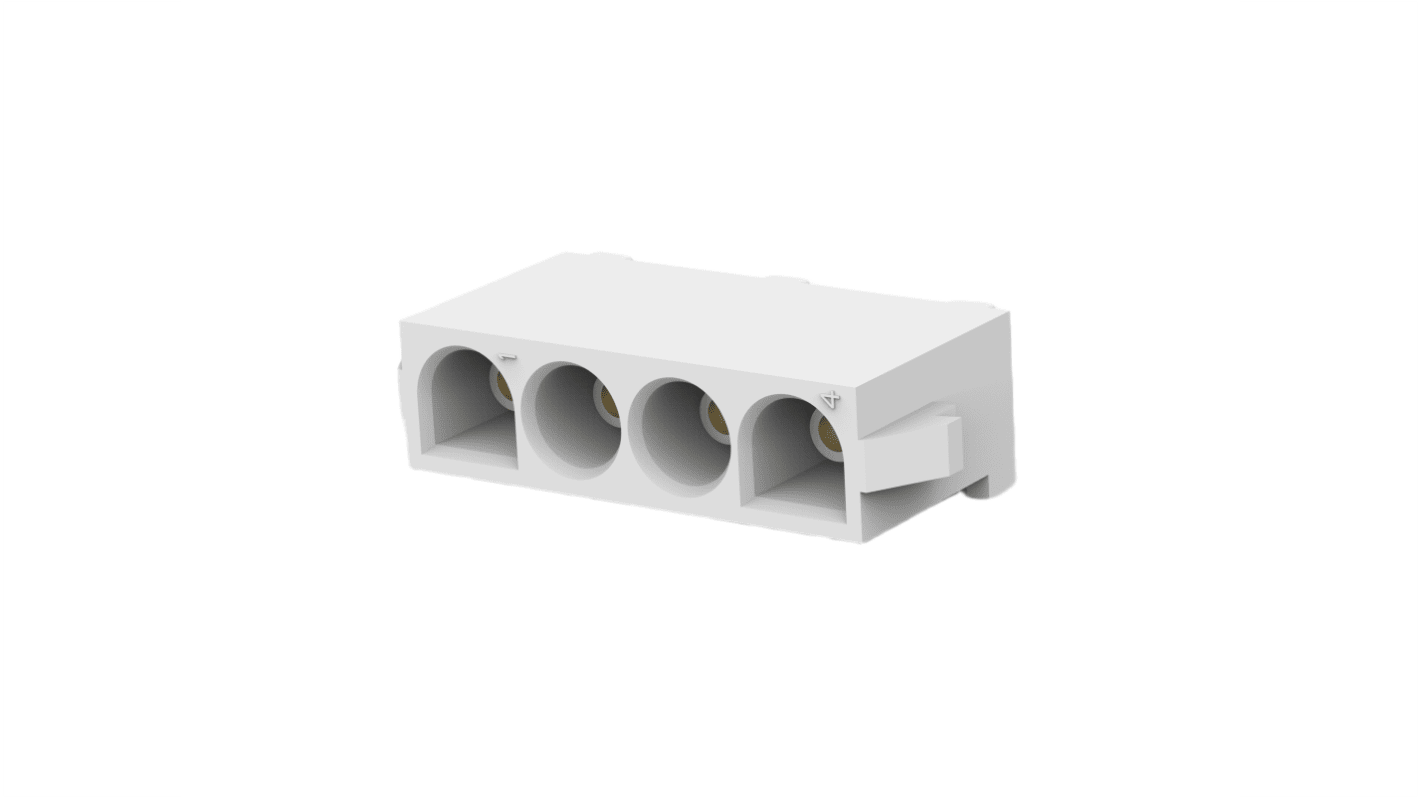

TE Connectivity MATE-N-LOK Series Vertical Board PCB Header, 4 Contact(s), 6.35 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 503-757
- Mfr. Part No.:
- 350761-5
- Brand:
- TE Connectivity
Subtotal (1 pack of 100 units)*
£200.00
(exc. VAT)
£240.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £200.00 | £2.00 |
*price indicative
- RS Stock No.:
- 503-757
- Mfr. Part No.:
- 350761-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | MATE-N-LOK | |
| Product Type | PCB Header | |
| Pitch | 6.35mm | |
| Current | 12A | |
| Number of Contacts | 4 | |
| Housing Material | Nylon | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Row Pitch | 6.35mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Tail Pin Length | 3.56mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CSA, UL, VDE | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-50-737 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series MATE-N-LOK | ||
Product Type PCB Header | ||
Pitch 6.35mm | ||
Current 12A | ||
Number of Contacts 4 | ||
Housing Material Nylon | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Row Pitch 6.35mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Tail Pin Length 3.56mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CSA, UL, VDE | ||
Voltage 60 V | ||
Distrelec Product Id 304-50-737 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header represents a pinnacle of connectivity solutions, expertly designed for efficient wire-to-board applications. Offering a robust vertical orientation and fully shrouded construction, this connector ensures secure and reliable connections for various electronic assemblies. Its precise 6.35 mm centreline spacing optimises circuit board layouts, while the gold-plated contacts guarantee excellent conductivity and corrosion resistance. Ideal for power circuit applications, this connector meets high operating voltage standards, making it suitable for various industrial environments. With its durable nylon housing and thoughtful design that includes locking tabs and alignment features, this product enhances both performance and user convenience, reflecting a commitment to quality engineering.
Supports a wide operating temperature range
Features a round contact shape for enhanced stability
Incorporates locking tab for secure mating retention
Manufactured with low halogen materials for safety
Allows for wave solder process capability up to 265°C
Designed to be compatible with both standard and polarised connectors
Constructed with materials that comply with rigorous industry standards
