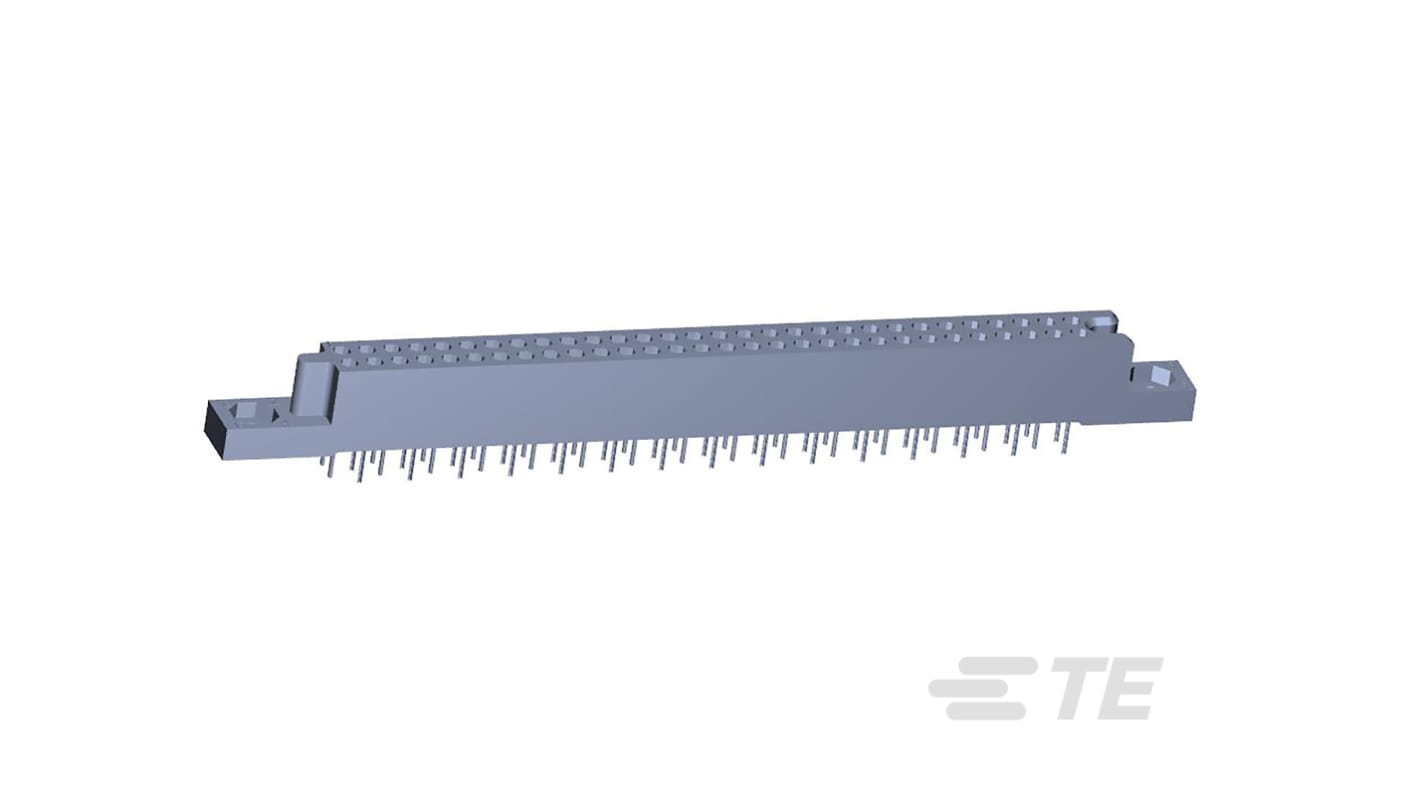

TE Connectivity 530340 Series Board PCB Header, 70 Contact(s), 0.1 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 482-313
- Mfr. Part No.:
- 530340-5
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£477.84
(exc. VAT)
£573.41
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £477.84 |
*price indicative
- RS Stock No.:
- 482-313
- Mfr. Part No.:
- 530340-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | 530340 | |
| Pitch | 0.1mm | |
| Number of Contacts | 70 | |
| Number of Rows | 2 | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Board | |
| Row Pitch | 0.1mm | |
| Maximum Operating Temperature | 265°C | |
| Standards/Approvals | Mil-Spec: (M55302/27-95) | |
| Distrelec Product Id | 303-27-768 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series 530340 | ||
Pitch 0.1mm | ||
Number of Contacts 70 | ||
Number of Rows 2 | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Board | ||
Row Pitch 0.1mm | ||
Maximum Operating Temperature 265°C | ||
Standards/Approvals Mil-Spec: (M55302/27-95) | ||
Distrelec Product Id 303-27-768 | ||
Non Compliant
- COO (Country of Origin):
- US
The TE Connectivity 2 ROW BX RCPT is designed for high reliability and superior performance in a variety of applications. Crafted with precision engineering and adherence to stringent military specifications, this connector supports up to 70 positions, ensuring exceptional connectivity and functionality in demanding environments. The product's robust design is complemented by its compatibility with various mounting options and efficient solder process capabilities, tailored for high-quality assembly. The connector is ideal for military and industrial applications, providing a reliable solution for your connectivity needs while ensuring compliance with essential regulations such as EU RoHS and China RoHS.
Features 2 rows offering efficient space utilisation
Accommodates up to 70 positions for versatile connectivity
Designed to meet military specifications for enhanced durability
Wave solder capable to temperatures up to 265°C ensuring robust assembly
Not compliant with EU RoHS, providing insights for material considerations
Compatible with various applications, ensuring widespread usability
Includes comprehensive compliance documentation for regulatory assurance
