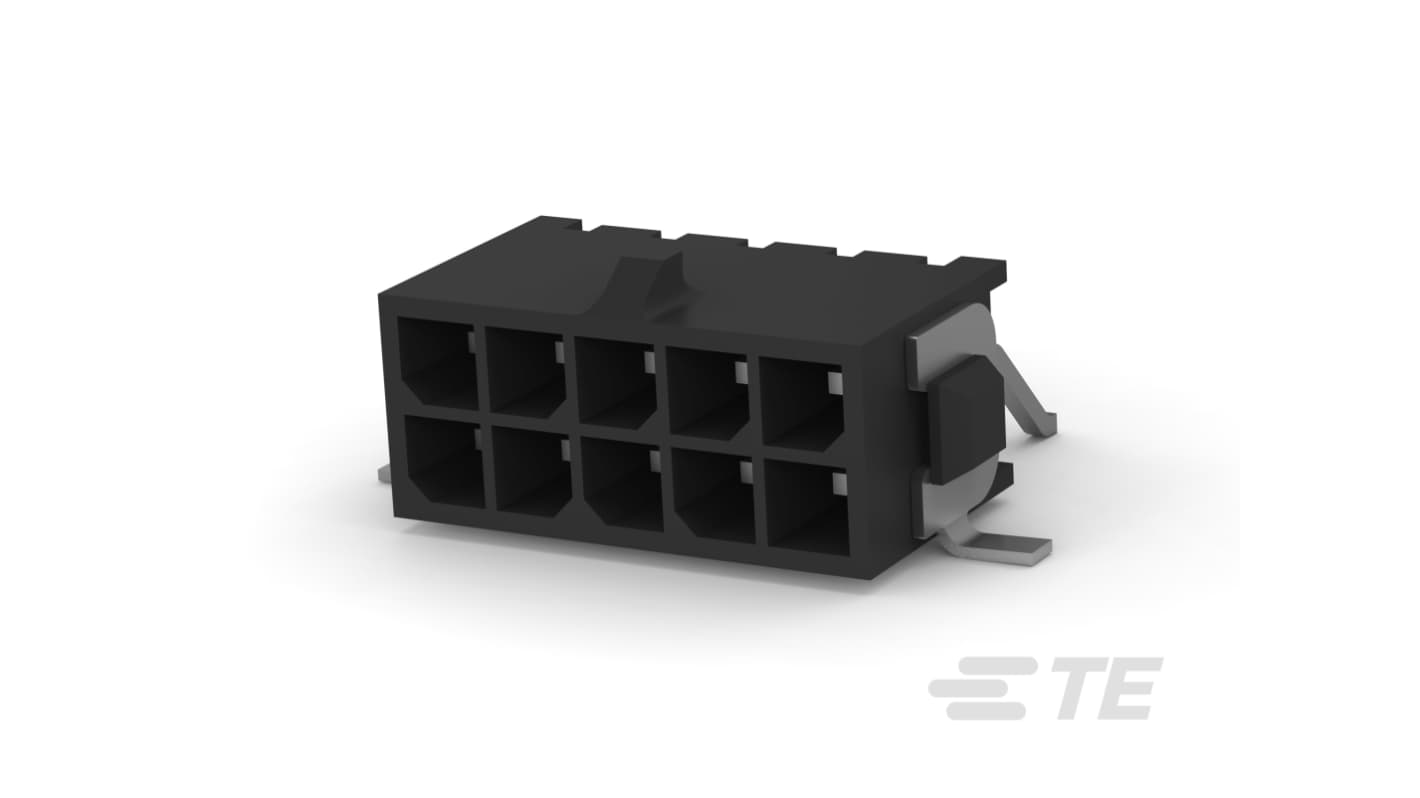

TE Connectivity MATE-N-LOK Series Right Angle Board PCB Header, 10 Contact(s), 3 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 481-565
- Mfr. Part No.:
- 4-794627-0
- Brand:
- TE Connectivity
Subtotal (1 reel of 150 units)*
£445.98
(exc. VAT)
£535.18
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £445.98 | £2.973 |
*price indicative
- RS Stock No.:
- 481-565
- Mfr. Part No.:
- 4-794627-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | MATE-N-LOK | |
| Current | 5A | |
| Pitch | 3mm | |
| Housing Material | Nylon | |
| Number of Contacts | 10 | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Plating | Tin Plated | |
| Contact Material | Brass | |
| Termination Type | Surface Mount | |
| Row Pitch | 3mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, CNR, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, GWT 750°C (Without Flame), UL, UL 94V-0, UL E28476, USR | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-50-769 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series MATE-N-LOK | ||
Current 5A | ||
Pitch 3mm | ||
Housing Material Nylon | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Plating Tin Plated | ||
Contact Material Brass | ||
Termination Type Surface Mount | ||
Row Pitch 3mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, CNR, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, GWT 750°C (Without Flame), UL, UL 94V-0, UL E28476, USR | ||
Voltage 250 V | ||
Distrelec Product Id 304-50-769 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is expertly designed for optimal performance in wire-to-board applications. With its right-angle orientation and fully shrouded form, this connector boasts enhanced mechanical stability and simplified installation, making it ideal for compact spaces. Its robust construction uses high-temperature nylon for superior durability, ensuring reliable operation in demanding environments. With a 3 mm centreline and a capacity for up to 10 positions, this connector guarantees a secure and efficient connection for power applications. The Micro MATE-N-LOK series is perfect for users looking to streamline their designs without sacrificing quality or performance.
Offers a reliable power connection in a small form factor
Ensures easy integration into circuit designs
Designed for surface-mount technology to enhance manufacturing efficiency
Utilises locking tabs for secure mating retention
Features polarization for correct orientation during assembly
Provides excellent electrical performance with a maximum current rating of 5 A
