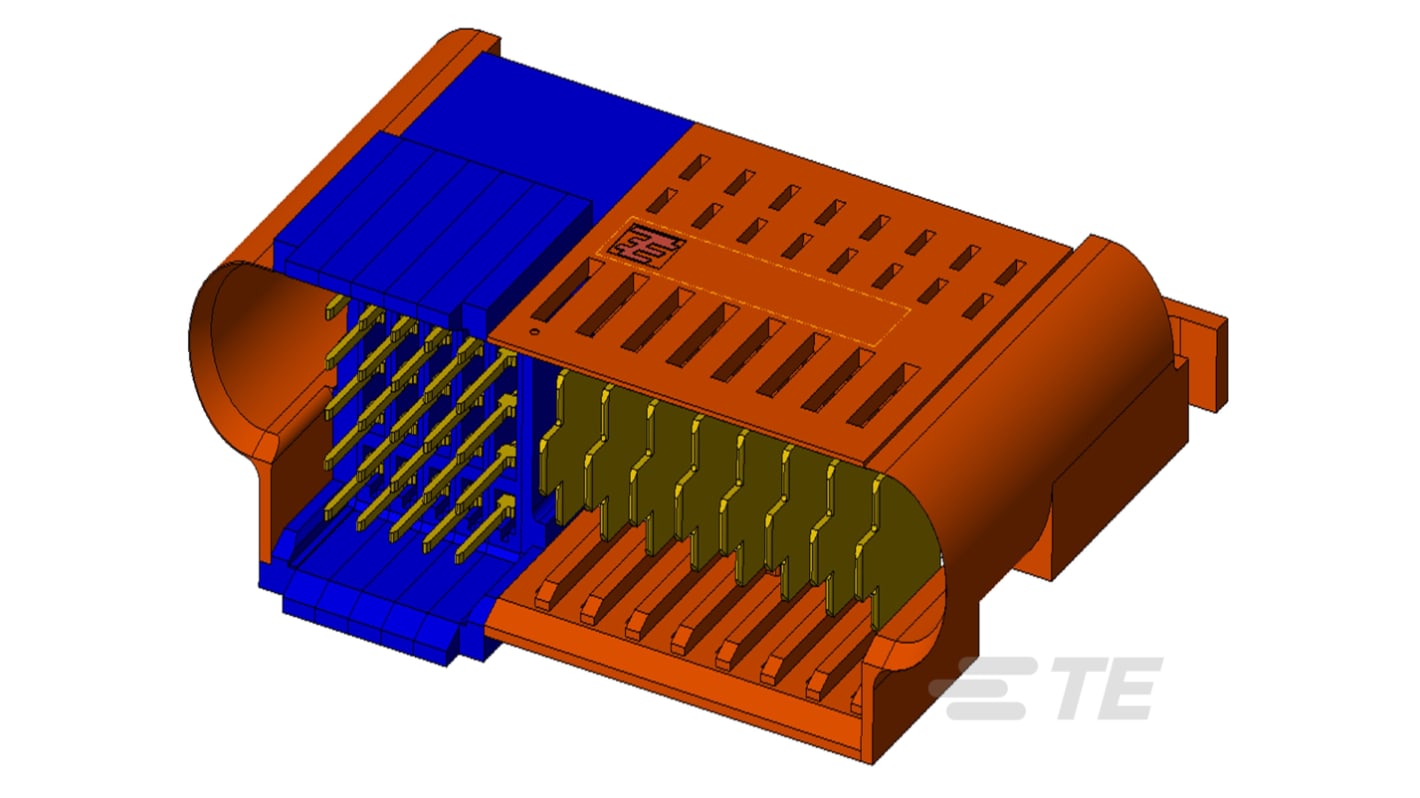

TE Connectivity MINIPAK Series Right Angle Board PCB Header, 33 Contact(s), 2.75 mm Pitch, 5 Row(s), Shrouded
- RS Stock No.:
- 480-439
- Mfr. Part No.:
- 1-1892786-8
- Brand:
- TE Connectivity
Subtotal (1 tray of 15 units)*
£196.17
(exc. VAT)
£235.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £196.17 | £13.078 |
*price indicative
- RS Stock No.:
- 480-439
- Mfr. Part No.:
- 1-1892786-8
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | MINIPAK | |
| Product Type | PCB Header | |
| Pitch | 2.75mm | |
| Current | 17A | |
| Housing Material | Liquid Crystal Polymer Fibreglass | |
| Number of Contacts | 33 | |
| Number of Rows | 5 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Board | |
| Contact Material | Copper Alloy Phosphor Bronze | |
| Contact Plating | Gold | |
| Termination Type | Solder | |
| Row Pitch | 2.75mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Tail Pin Length | 3.3mm | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, CSA, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0, UL E28476 | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-57-898 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series MINIPAK | ||
Product Type PCB Header | ||
Pitch 2.75mm | ||
Current 17A | ||
Housing Material Liquid Crystal Polymer Fibreglass | ||
Number of Contacts 33 | ||
Number of Rows 5 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type Board | ||
Contact Material Copper Alloy Phosphor Bronze | ||
Contact Plating Gold | ||
Termination Type Solder | ||
Row Pitch 2.75mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Tail Pin Length 3.3mm | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, CSA, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0, UL E28476 | ||
Voltage 60 V | ||
Distrelec Product Id 304-57-898 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Plug is designed to streamline your connections with precision and efficiency. Featuring a right-angle configuration, it enables versatile board-to-board connectivity with 33 positions, allowing for a compact assembly in tight spaces. The fully shrouded design enhances protection against external elements, ensuring reliability in various applications. With premium gold plating for the mating area and nickel underplating, this connector guarantees optimal conductivity and durability. The innovative construction supports both power and signal transmission, making it an ideal choice for a wide array of electronic devices. Moreover, it is complied with several industry standards, providing peace of mind for quality and performance. Manufactured to cater to modern technological needs, this connector supports diverse operational temperatures, enhancing its versatility across applications.
Right-angle design optimizes space utilization on your printed circuit board
Fully shrouded construction enhances protection against environmental factors
Complies with various industry standards for reliable performance
Supports both power and signal applications seamlessly
Constructed with premium materials to ensure long-lasting durability
Capabilities include co-planar board-to-board connections for streamlined assembly
Low halogen materials align with eco-friendly initiatives in manufacturing
