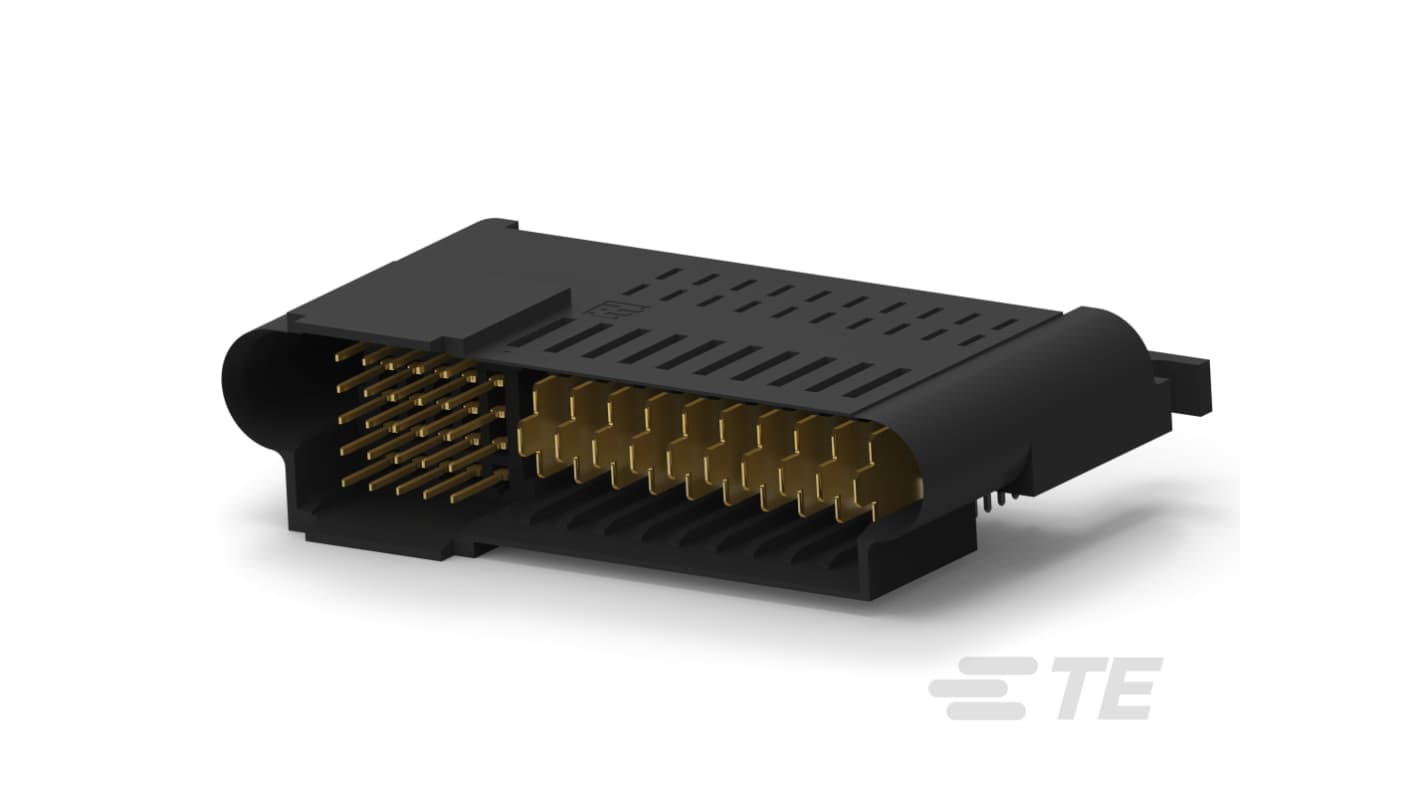

TE Connectivity MINIPAK Series Right Angle Board PCB Header, 35 Contact(s), 2.75 mm Pitch, 5 Row(s), Shrouded
- RS Stock No.:
- 473-144
- Mfr. Part No.:
- 1926736-3
- Brand:
- TE Connectivity
Subtotal (1 pack of 20 units)*
£219.36
(exc. VAT)
£263.23
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £219.36 | £10.968 |
*price indicative
- RS Stock No.:
- 473-144
- Mfr. Part No.:
- 1926736-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | MINIPAK | |
| Product Type | PCB Header | |
| Pitch | 2.75mm | |
| Current | 16A | |
| Number of Contacts | 35 | |
| Housing Material | Liquid Crystal Polymer Fibreglass | |
| Number of Rows | 5 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy Phosphor Bronze | |
| Termination Type | Solder | |
| Row Pitch | 2.75mm | |
| Minimum Operating Temperature | -40°C | |
| Tail Pin Length | 3.3mm | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | CSA, UL E28476, UL Recognised | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-58-260 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series MINIPAK | ||
Product Type PCB Header | ||
Pitch 2.75mm | ||
Current 16A | ||
Number of Contacts 35 | ||
Housing Material Liquid Crystal Polymer Fibreglass | ||
Number of Rows 5 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type Board | ||
Contact Plating Gold | ||
Contact Material Copper Alloy Phosphor Bronze | ||
Termination Type Solder | ||
Row Pitch 2.75mm | ||
Minimum Operating Temperature -40°C | ||
Tail Pin Length 3.3mm | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals CSA, UL E28476, UL Recognised | ||
Voltage 60 V | ||
Distrelec Product Id 304-58-260 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB mount plug is expertly designed for efficient board-to-board connections, ensuring reliability in your applications. With a right-angle orientation and a compact 35-position configuration, it allows for streamlined layouts while optimising space. Crafted with high-quality materials, this connector ensures excellent conductivity and durability under demanding conditions. The housing design features fully shrouded contacts to enhance performance and prevent damage during mating, whilst the gold plating on the contacts guarantees superior corrosion resistance. This connector is ideal for various industries, from consumer electronics to industrial applications, making it a versatile choice for your connectivity needs.
Designed for board-to-board connectivity, promoting seamless integration
Right-angle orientation optimises space and layout design
High-quality housing enhances durability and performance
Fully shrouded contacts protect against damage during use
Gold plating ensures superior conductivity and corrosion resistance
Wide operating temperature range accommodates various environments
Easy installation and maintenance improve assembly efficiency
